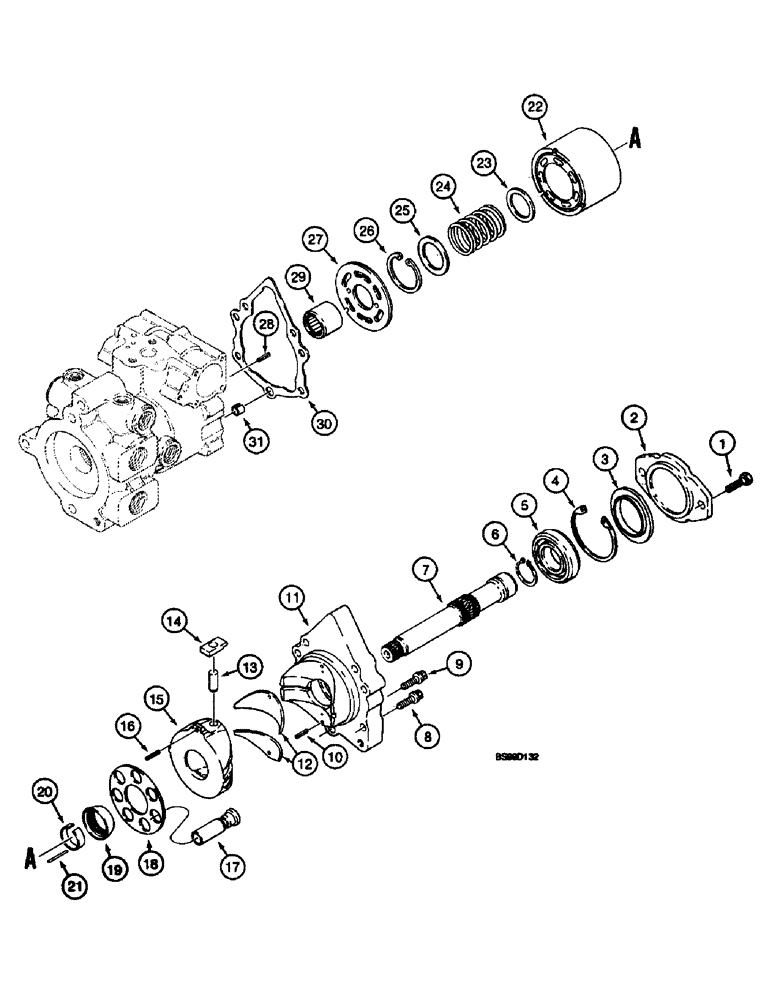

Запчасти Case 660 (6-20) - TANDEM PUMP - H673751, REAR DRIVE PUMP, CYLINDER BLOCK AND SHAFT (06) - POWER TRAIN

H673751

PUMP

ASSEMBLY - tandem, includes all items on Figs. 6-10 - 6-20, Includes: Ref. 1 - 31

1шт.

1

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

2

H438063

LARGE PLATE

PLATE - cover

1шт.

3

251661A1

SEAL

- plate

1шт.

4

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

Ring, Snap, , Brg 2.812", Int, #281

1шт.

5

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

BEARING - ball, rear cover

1шт.

6

100-11137

SNAP RING,#137, Ext

Ring, Snap, , shaft, bearing #137, Ext

1шт.

7

4901/10159

SHAFT

- rear, tandem pump

1шт.

8

80-1716

12 PT SCREW,Flg, 7/16" - 14 x 1", Gr 8

BOLT - 12 point flange, 7/16 NC x 1 inch, grade 8

6шт.

9

N14479

12 PT SCREW

BOLT - 12 point, 3/8 NC x 1-1/8 inch, special

1шт.

10

38-1806

LOCK PIN,1/8" x 3/8", Slotted

Pin, 1/8" x 3/8", Slotted

2шт.

11

H436705

COVER

- rear

1шт.

12

N14472

BEARING

JOURNAL - bearing

2шт.

13

N13254

PIN

- swash plate

1шт.

14

N13224

SLEEVE

RETAINER - pin

1шт.

15

N14469

PLATE

- swash, block

1шт.

16

138-130

LOCK PIN,1/4" x 3/4", Slotted

PIN, 1/4" x 3/4", Slotted

1шт.

4902/10015

SET

BLOCK ASSEMBLY - cylinder, Includes: Ref. 17 - 26

1шт.

17

NSS

NOT SOLD SEPARAT

PISTON - cylinder block

7шт.

18

NSS

NOT SOLD SEPARAT

RETAINER - piston

1шт.

19

4902/10008

GUIDE

- retainer

1шт.

20

4902/10009

SLEEVE

RING - retaining, guide

1шт.

21

110873A1

PIN,2.38mm OD x 33.53mm L

- retaining, Serial Range: guide-shaft

3шт.

22

4902/10011

CYLINDER BLOCK

BLOCK - cylinder

1шт.

23

4902/10012

DISC

SEAT - spring, outer

1шт.

24

4902/10013

SPRING

- cylinder block

1шт.

25

4902/10014

DISC

SEAT - spring, inner

1шт.

26

NSS

NOT SOLD SEPARAT

RING - snap, spring

1шт.

27

N14467

LARGE PLATE

PLATE - valve, inner cylinder block

1шт.

28

38-11207

LOCK PIN,4.76mm OD x 11.11mm L, Slotted

Pin, 3/16" x 7/16", Slotted

1шт.

29

1277297C1

NEEDLE BEARING

- needle, shaft

1шт.

30

H436704

GASKET,0.79mm Thk

- cover, pump housing

1шт.

31

N13994

SPACER

PIN - roll, special, cover locating

1шт.
