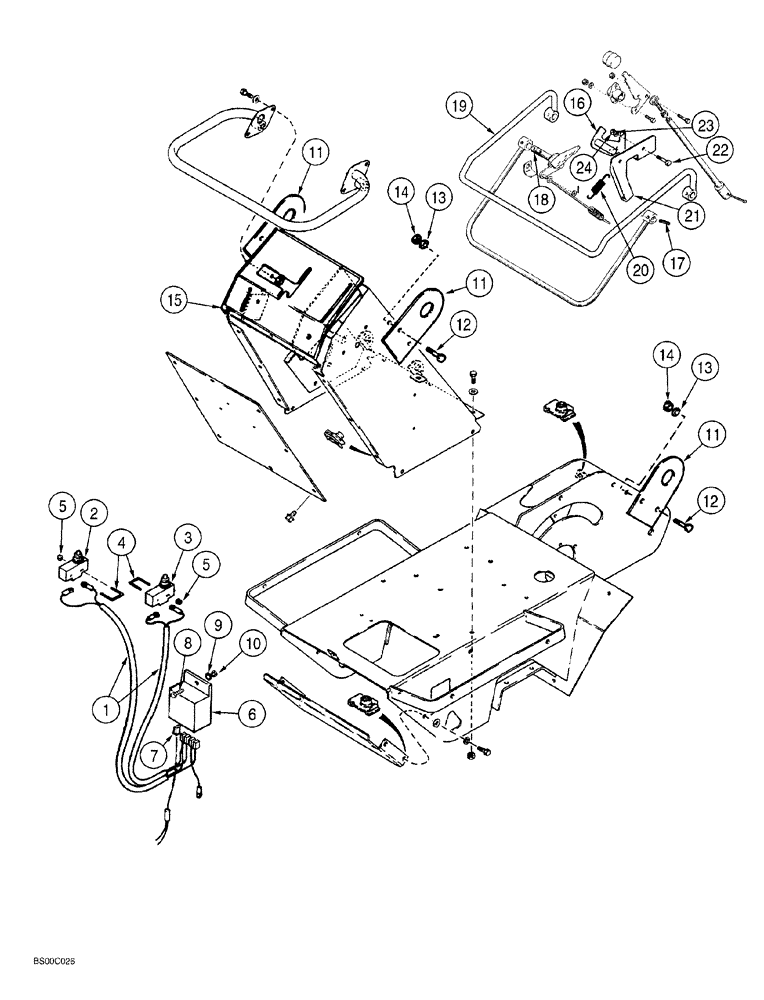

Запчасти Case 60 (09-02) - ELECTRICAL HARNESS, LIFT HOOKS AND OPERATOR CONTROLS (60 TRENCHER)

2

H435820

SWITCH

neutral start, includes terminal hardware, used for park application

1шт.

3

H435820

SWITCH

neutral start, includes terminal hardware, used for operator presence application

1шт.

4

H435814

U-BOLT

switch mounting

2шт.

5

193-1003

NUT,Keps, w/LW,#6-32

External Tooth

4шт.

7

120405A2

CONNECTOR electrical

5шт.

8

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

9

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

1шт.

10

231-4114

LOCK NUT,1/4"-20, GB

hex, self locking, 1/4 inch NC

1шт.

12

326-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

6шт.

13

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

6шт.

14

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

6шт.

15

198030A1

PLATE console support, welded to 117503A1 front console

1шт.

17

438-11620

LOCK PIN,1/4" x 1 1/4", Slotted

1/4" x 1 1/4", Slotted

3шт.

20

D124939

SPRING

lock, control lever

1шт.

22

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

23

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.

24

231-4116

NUT,3/8"-16, GB

hex, self locking, 3/8 inch NC

2шт.
