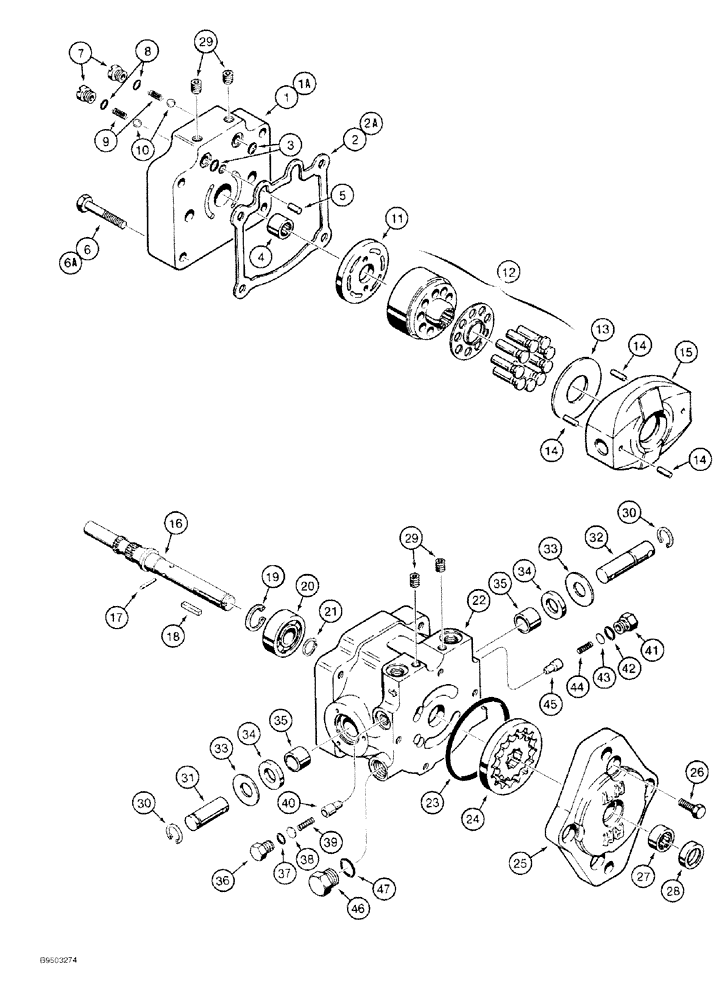

Запчасти Case 60 (06-010) - VARIABLE DISPLACEMENT PUMP

H674324

PUMP

ASSEMBLY ground drive and trencher lift, Includes: Ref. 1 - 47

1шт.

1

N14421

CAP

COVER closed end, 1/8 inch PT port

1шт.

1a

132021A1

CAP

COVER closed end, 7/16 inch O ring boss port

1шт.

2

H255059

GASKET

end cover, used with N14421 and also requires Ref. 6 bolt

1шт.

2a

193485A1

GASKET

end cover, used with 132021A1 cover and also requires Ref. 6A bolt

1шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

4

D65125

ROLLER BEARING,0.6699" ID x 0.937" OD x 0.62"

needle

1шт.

5

D65124

PIN

end cover

1шт.

6

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

4шт.

6a

326-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

4шт.

123094C1

KIT

VALVE ASSEMBLY check, Includes: Ref. 7 - 10

1шт.

7

NSS

NOT SOLD SEPARAT

PLUG check valve

2шт.

8

NSS

NOT SOLD SEPARAT

O RING plug

2шт.

9

NSS

NOT SOLD SEPARAT

SPRING check valve

2шт.

10

NSS

NOT SOLD SEPARAT

BALL check valve

2шт.

11

N14422

PLATE

cylinder block

1шт.

12

N14423

LOCK, CYLINDER

LOCK-CYLINDER BLOCK component parts not serviced separately

1шт.

13

138098C1

LARGE PLATE

PLATE, LARGE wear

1шт.

14

38-21210

PIN,3/16" x 5/8", Coiled

3/16" x 5/8", Coiled

3шт.

15

D63399

PLATE

swash

1шт.

16

H438632

SHAFT

pump

1шт.

17

N7060

AXLE PIN

shaft

1шт.

18

126-113

WOODRUFF KEY,#61, 3/16" x 5/8", HT

1шт.

19

16242

SNAP RING,1.852", Int, #185

swash plate, large 1.852", Int, #185

1шт.

20

L31005

BALL BEARING

ball, swash plate

1шт.

21

100-1178

SNAP RING,#78, Ext

Swash plate bearing

1шт.

22

H438633

HOUSING

pump

1шт.

23

238-6153

O-RING,0.103" Thk x 3.487" ID, -153, Cl 6, 90 Duro

1шт.

24

N7062

PLATE

GEROTOR inner and outer gear, replaces 138105C1

1шт.

25

N7059

HOUSING

COVER drive end

1шт.

26

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

27

D65128

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 9.53mm W

shaft

1шт.

28

A50421

OIL SEAL,19.05mm ID x 31.95mm OD x 6.73mm Thk

oil

1шт.

29

F23137

PLUG

pipe, special

4шт.

30

100-1368

SNAP RING,#68, Ext

Pivot pin

2шт.

31

D63408

SHAFT

PIN pivot, short

1шт.

32

138103C1

SHAFT

PIN pivot, long

1шт.

33

H249599

WASHER

special

2шт.

34

H755884

SEAL

pivot pin

2шт.

35

N14439

BUSHING

pivot pin

2шт.

N14438

VALVE, PRESSURE RELI

EF ASSEMBLY, Includes: Ref. 36 - 40

1шт.

36

N7061

PLUG

relief valve

1шт.

38

D63406

SHIM

KIT

1шт.

39

D63407

VALVE SPRING

relief

1шт.

40

D63413

CONE

POPPET relief valve

1шт.

41

N7061

PLUG

relief valve

1шт.

43

D63406

SHIM

KIT

1шт.

44

N14429

SPRING

relief valve

1шт.

45

D63413

CONE

POPPET relief valve

1шт.

46

86512512

PLUG,7/8" - 14 ORB

Incl. Ref. 47

1шт.

47

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

37

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

42

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.
