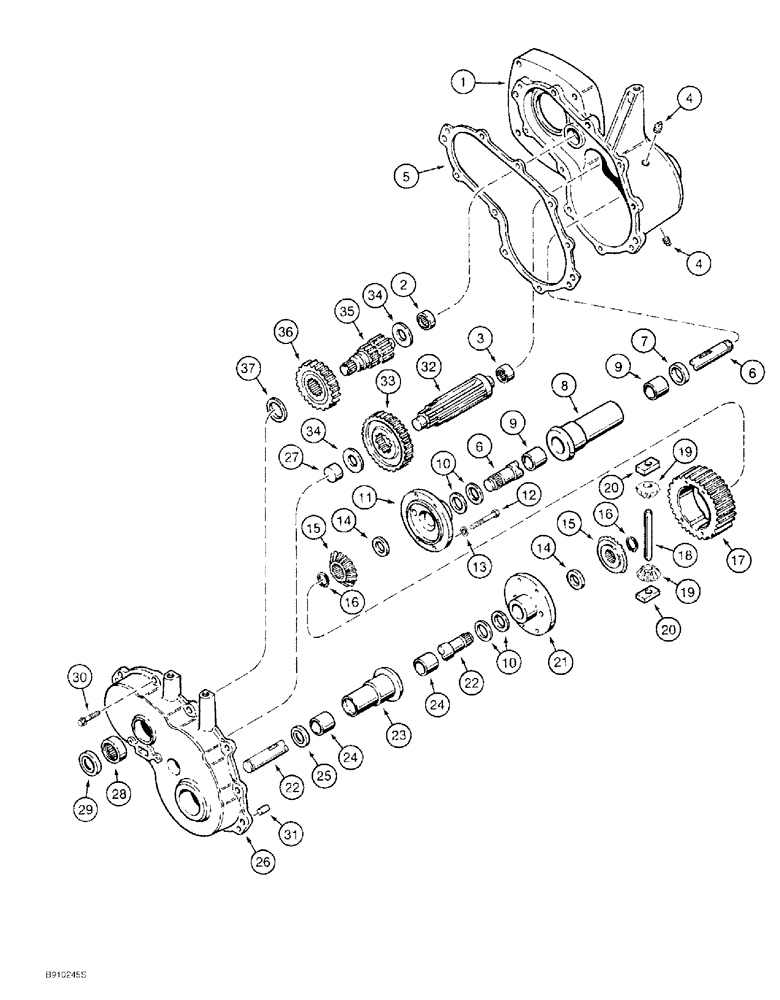

Запчасти Case 60 (06-006) - TRANSAXLE

H674322

AXLE HOUSING

TRANSAXLE ASSEMBLY trencher, including shafts, Includes: Ref. 1 - 37

1шт.

H674812

CASE

HOUSING ASSEMBLY transaxle, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING transaxle

1шт.

2

H433371

NEEDLE BEARING

needle, input

1шт.

3

195020A1

NEEDLE BEARING

needle, idler shaft, replaces C16006

1шт.

4

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

2шт.

5

H439147

GASKET

, Serial Range: housing-cover

1шт.

6

H438691

AXLE

SHAFT left hand, 15-1/4 inch long

1шт.

7

N9344

OIL SEAL

oil, axle shaft

1шт.

H674815

HOUSING

ASSEMBLY axle, left hand, Includes: Ref. 8 & 9

1шт.

8

NSS

NOT SOLD SEPARAT

HOUSING axle, 8-5/8 inch long

1шт.

9

N9347

BUSHING

axle housing

2шт.

10

N9292

WASHER, THRUST

carrier

4шт.

11

N9353

CARRIER

housing side

1шт.

12

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

4шт.

13

92-11025

LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk

4шт.

14

H296756

WASHER

thrust, bevel gear

2шт.

15

H438689

GEAR

bevel, differential, 16 teeth

2шт.

16

N9349

RING, SNAP

RING SNAP bevel gear

2шт.

17

H296061

RING

GEAR differential

1шт.

18

N9293

PIN

SHAFT pinion gears

1шт.

19

H438688

PINION

GEAR differential, 10 teeth

2шт.

20

N9294

BLOCK

drive, shaft ends

2шт.

21

N9354

FLANGE

CARRIER cover side

1шт.

22

H438690

AXLE

SHAFT right hand, 11-7/16 inch long

1шт.

H674814

HOUSING

ASSEMBLY axle, right hand, Includes: Ref. 23 & 24

1шт.

23

NSS

NOT SOLD SEPARAT

HOUSING axle, 4-21/32 inch long

1шт.

24

N9347

BUSHING

axle housing

2шт.

25

N9344

OIL SEAL

oil, axle shaft

1шт.

H674813

COVER

ASSEMBLY transaxle, Includes: Ref. 26 - 28

1шт.

26

NSS

NOT SOLD SEPARAT

COVER transaxle

1шт.

27

H433371

NEEDLE BEARING

needle

1шт.

28

195022A1

BEARING, NEEDLE

replaces C16007

1шт.

29

N9344

OIL SEAL

oil

1шт.

30

281-14716

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1"

self-tapping, hex washer head, 1/4 NC x 1 inch

10шт.

31

F53650

PIN

dowel, Serial Range: housing-cover

4шт.

32

H438693

SHAFT

idler

1шт.

33

N9342

GEAR

output

1шт.

34

N9310

WASHER

flat

2шт.

35

H438692

SHAFT

input

1шт.

36

N9298

GEAR, IDLER

GEAR,IDLE

1шт.

37

195023A1

WASHER

flat, replaces C16009

1шт.
