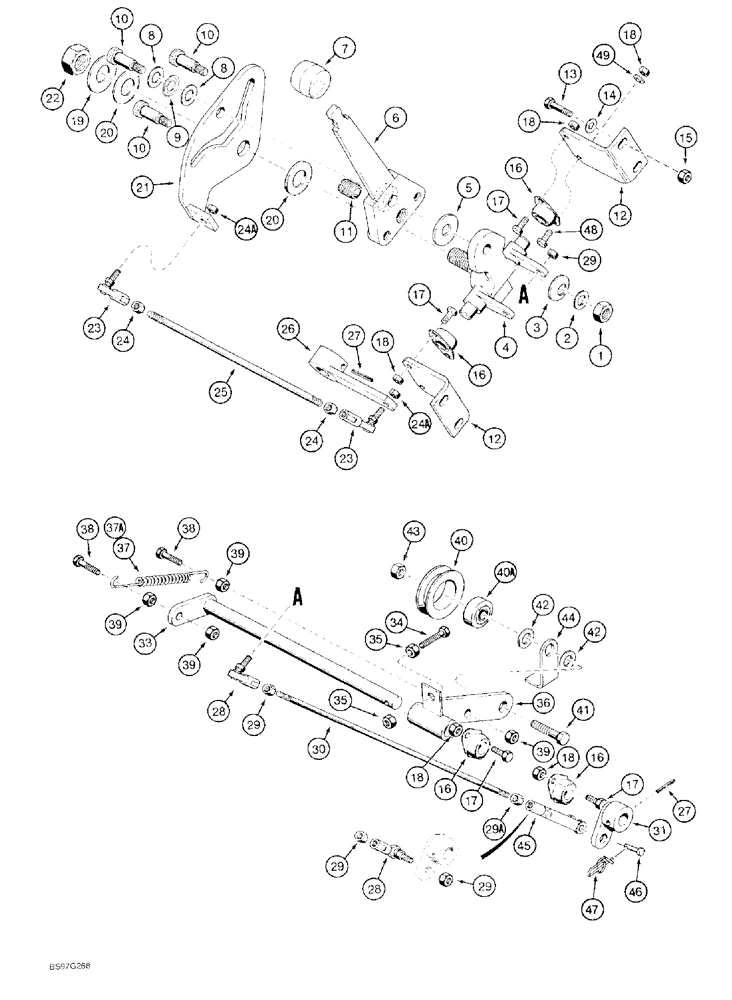

Запчасти Case 60 (06-004) - GROUND DRIVE CONTROLS

1

232-4116

NUT,3/8"-16, GC

1шт.

2

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

3

D33544

WASHER

SPRING Belleville

1шт.

4

H433501

PIVOT

BELLCRANK control, replaces H435855

1шт.

5

1342383C1

FRICTION WASHER

friction

1шт.

6

H674151

LEVER

control, ground drive

1шт.

7

H438223

KNOB

control lever, green

1шт.

8

H405035

BEARING WASHER

WASHER thrust

2шт.

9

H405043

BEARING WASHER,12.75mm ID x 23.55mm OD x 1.98mm Thk

thrust

1шт.

10

H404822

BOLT

shoulder, special

3шт.

11

H404731

GUIDE

lever tension

1шт.

12

H429845

ANGLE

BRACKET mounting, bellcrank

2шт.

13

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

14

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

4шт.

15

232-4115

LOCK NUT,5/16"-18, GC

4шт.

16

H755785

FLANGED BEARING,15.88mm ID

flange

4шт.

17

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

7-8шт.

18

232-4114

LOCK NUT,1/4"-20, GC

8шт.

19

495-11081

WASHER,3/4", SAE

1шт.

20

H433170

WASHER

flat, nylon, spacer

2шт.

21

H674087

LARGE PLATE

PLATE, LARGE lever control

1шт.

22

232-41112

NUT,3/4"-10, GC

1шт.

23

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT female, 5/16 inch NF

2шт.

24

425-115

NUT,5/16"-24, G5

2шт.

24a

230-4715

LOCK NUT,5/16"-24, GA

Hex

2шт.

25

D63969

ROD

control, pump

1шт.

26

H674099

ARM

control, pump

1шт.

27

38-11620

PIN,1/4" x 1 1/4", Slotted

2шт.

28

H358374

PIVOT,1/4" - 28 x 1-1/3"

JOINT ball, female, 1/4 inch NF

1-2шт.

29

425-114

NUT,1/4"-28, G5

2-4шт.

29a

230-4714

LOCK NUT,1/4"-28, GA

hex, self-locking, 1/4 inch NF

1шт.

30

H437555

ROD

control, ground drive

1шт.

31

H674193

LINK

pivot

1шт.

33

H674203

SHAFT

cross

1шт.

34

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

35

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

36

H674204

LINK

idler pulley

1шт.

37

H437655

SPRING

link, 35 coils, 83 mm long, no longer available, for service order 104434A1, Ref. 37A

1шт.

37a

104434A1

SPRING

link, 31-1/2 coils, 88 mm long

1шт.

38

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

39

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

40

H674326

PULLEY

idler, Includes: Ref. 40A

1шт.

40a

666624R91

BALL BEARING,16.26mm ID x 40mm OD x 18mm W

idler pulley

1шт.

41

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

42

H274894

WASHER

flat, special

1шт.

43

232-4118

NUT,1/2"-13, GC

1шт.

44

H437966

ANGLE

belt retainer

1шт.

45

213-124

ADJUSTABLE CLEVIS,1/4"-28

1шт.

46

427-4077

CLEVIS PIN,1/4" x .770"

Hardened

1шт.

47

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

RETAINER, clevis, special

1шт.

48

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

49

H42767

WASHER flat, hardened, 1/4 inch

1шт.
