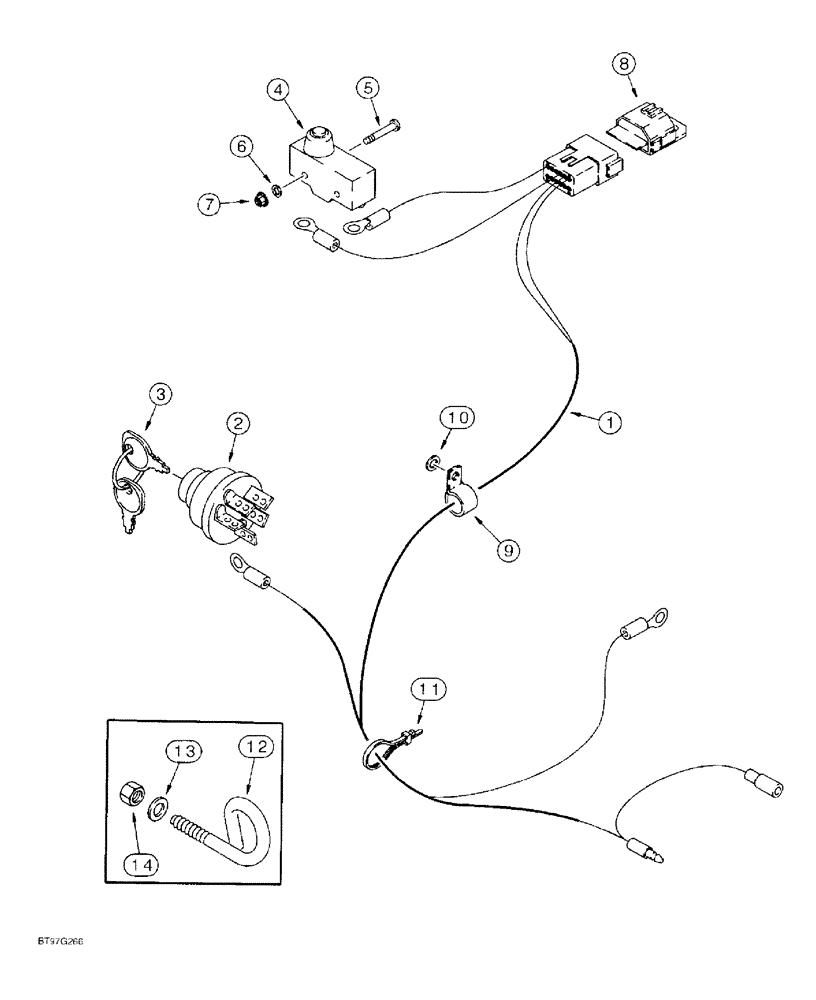

Запчасти Case 60 (04-004) - IGNITION SYS. AFTER S/N JAF0199037 - PLUS JAF0198927-942, JAF0199024-025 & JAF0199033-036

1

196691A1

HARNESS

ignition

1шт.

2

H71498

SWITCH

ignition, includes two keys, Includes: Ref. 3

1шт.

3

A24509

KEY

KEY - ignition, set of two

1шт.

4

H435820

SWITCH

neutral start, includes terminal hardware

1шт.

5

470-10620

SCREW,Pan HD, #6 - 32 x 1-1/4"

2шт.

6

495-31016

WASHER,#6

2шт.

7

193-1003

NUT,Keps, w/LW,#6-32

External tooth

2шт.

8

196692A2

TESTER

MODULE control

1шт.

9

A37179

CLIP

P-type

1шт.

10

H426767

WASHER

flat, 9/32 x 5/8 x 3/64 inch

1шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

4шт.

12

117590A1

GUIDE

rope

1шт.

Place engine start rope through Ref.12 guide.

1шт.

13

H426767

WASHER

flat, 9/32 x 5/8 x 3/64 inch

1шт.

14

425-104

NUT,1/4"-20, Cl 5

1шт.
