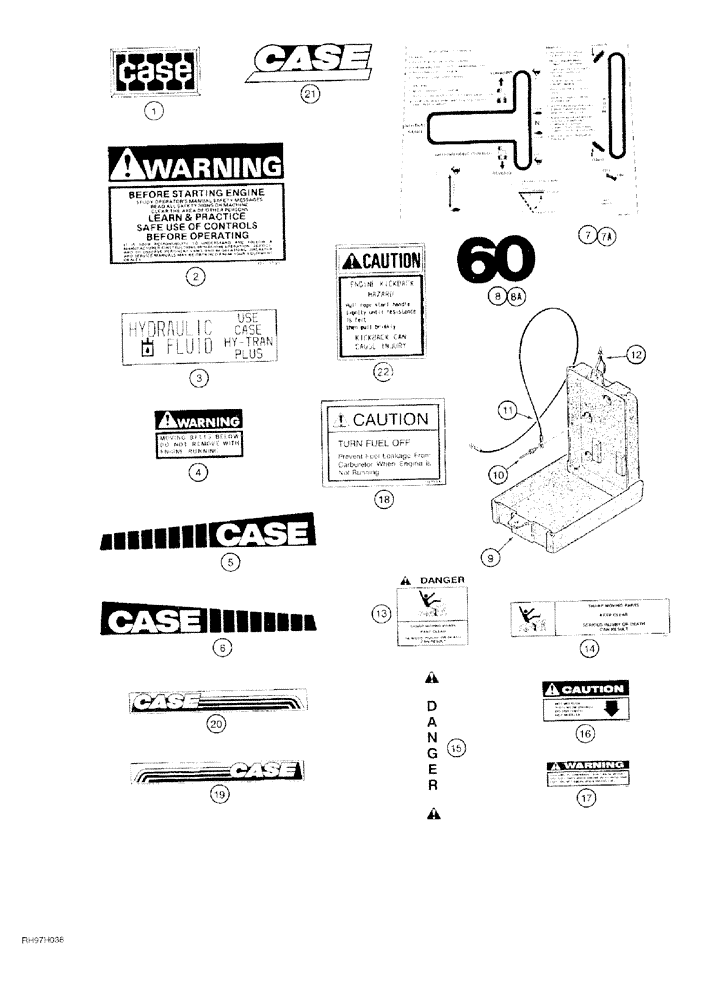

Запчасти Case 60 (09-032) - DECALS AND MANUAL BOX

1

321-5040

EMBLEM

EMBLEM CASE, metallic, adhesive backing, if used

1шт.

2

103833A1

DECAL

warning, before starting engine, replaces 321-3705

1шт.

3

H438541

DECAL

hydraulic fluid, use Case hy-tran plus

1шт.

4

321-2753

DECAL

warning, moving belts below

1шт.

5

H438224

DECAL

Case, with treads, left hand

1шт.

6

H438225

DECAL

Case, with treads, right hand

1шт.

7

123260A1

DECAL

console, operating instructions, brown background, replaces H438078

1шт.

7a

179084A1

DECAL

console, operating instructions, black background

1шт.

8

H438226

DECAL

60 model designation, brown

2шт.

8a

179117A1

DECAL

60 model designation, grey

2шт.

9

R46464

CASE

BOX operators manual

1шт.

10

151-522

RIVET,Pop, 3/16" x .575"

break mandrel, 3/16 x 9/16 inch

3шт.

11

D126821

CABLE

CORD manual retaining

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon, manual box

1шт.

13

H438908

DECAL

danger, sharp moving parts, keep clear, 110 x 110 mm long

2шт.

14

H438909

DECAL

danger, sharp moving parts, keep clear, 60 x 470 mm long, located on crumber chain guard

2шт.

15

H438910

DECAL

danger

1шт.

16

H438698

DECAL

caution, hot muffler, you can be burned

1шт.

17

H438699

DECAL

warning, gasoline is flammable

1шт.

18

H439306

DECAL

caution, turn fuel off

1шт.

19

179211A2

DECAL

Case, with stripes, left hand

1шт.

20

179212A2

DECAL

Case, with stripes, right hand

1шт.

21

187186A1

SYMBOLS

SYMBOL EMBLEM Case, if used

1шт.

22

294968A1

DECAL

caution, kickback hazard

1шт.
