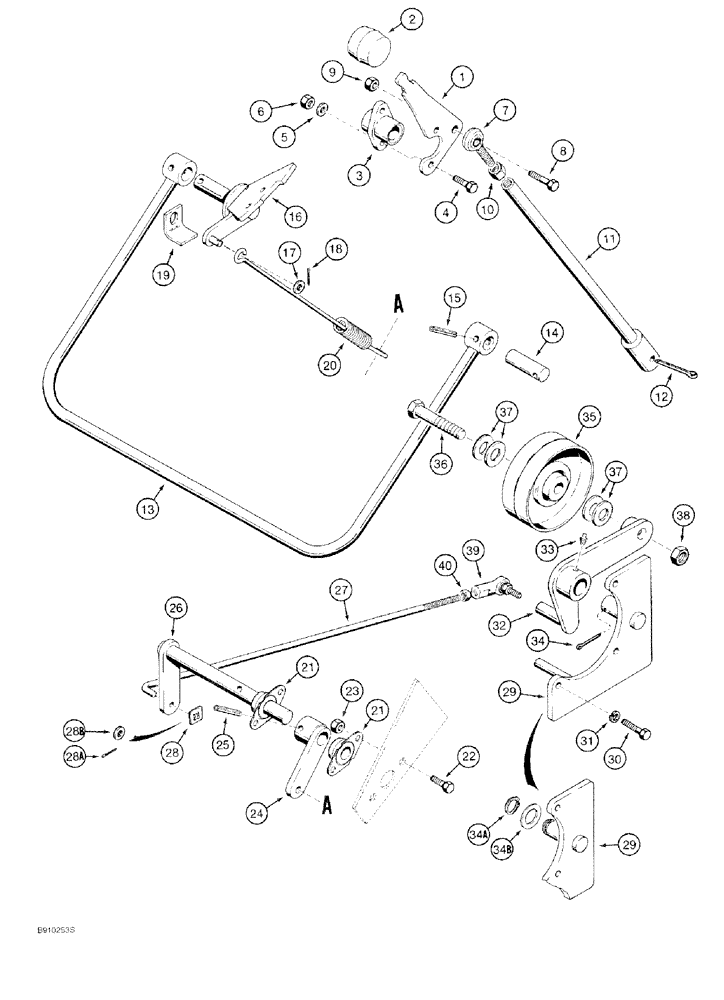

Запчасти Case 60 (09-030) - TRENCHER CONTROLS

1

H433311

HANDLE

LEVER control, boom lift

1шт.

2

A177440

KNOB

control lift lever, yellow

1шт.

3

A162299

BEARING,15.95mm ID

BEARING flange, control lever

1шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

5

H426767

WASHER

flat, 9/32 x 5/8 x 3/64 inch

2шт.

6

232-4114

LOCK NUT,1/4"-20, GC

2шт.

7

A76725

BALL JOINT

female, 5/16 inch NF

1шт.

8

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

9

232-4115

LOCK NUT,5/16"-18, GC

1шт.

10

425-115

NUT,5/16"-24, G5

1шт.

11

H674233

STEM

ROD valve control

1шт.

12

432-1224

COTTER PIN,3/16" x 1-1/2"

1шт.

13

H674172

HANDLE

trencher control

1шт.

14

H437479

SHAFT

control handle

1шт.

15

38-11620

PIN,1/4" x 1 1/4", Slotted

2шт.

16

H674190

LINK

upper pivot, notch to be centered on slot in console

1шт.

17

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

18

432-620

COTTER PIN,3/32" x 1 1/4"

3/32" x 1 1/4"

1шт.

19

H437949

ANGLE

stop, use steering handle mounting hardware Figure 9-3

1шт.

20

H437496

SPRING

control handle to flange bearing pivot

1шт.

21

H755785

FLANGED BEARING,15.88mm ID

flange

2шт.

22

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

23

232-4114

LOCK NUT,1/4"-20, GC

4шт.

24

H674399

LINK

lower pivot

1шт.

25

38-11620

PIN,1/4" x 1 1/4", Slotted

1шт.

26

H674194

PIVOT

link, center

1шт.

27

H437495

ROD

center pivot link to clutch link

1шт.

28

131-138

PUSH-ON NUT

push on type, 1/4 inch, if used

1шт.

28a

432-412

COTTER PIN,1/16" x 3/4"

If used

1шт.

28b

H426767

WASHER

flat, 9/32 x 5/8 x 3/64 inch, if used

1шт.

29

H674192

LINK

MOUNT clutch, may received one with a cotter key hole which would required Ref. 34 pin, or one that would require Ref. 34A snap ring and Ref. 34B washer

1шт.

30

414-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5

hex, 5/16 NF x 1 inch

3шт.

31

492-11031

LOCK WASHER,5/16"

3шт.

32

H674191

LINK

clutch

1шт.

33

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

34

432-820

COTTER PIN,1/8" x 1 1/4"

If used

1шт.

34a

103-1475

SNAP RING,#75, Ext

Rod, if used

1шт.

34b

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

special, hardened, spacer, if used

1шт.

35

H672381

PULLEY

SHEAVE idler, digging clutch

1шт.

36

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

hex, 1/2 NC x 2-3/4 inch

1шт.

37

H274894

WASHER

flat, special

1шт.

38

232-4118

NUT,1/2"-13, GC

1шт.

39

H358374

PIVOT,1/4" - 28 x 1-1/3"

JOINT ball, female, 1/4 inch NF

1шт.

40

425-114

NUT,1/4"-28, G5

1шт.
