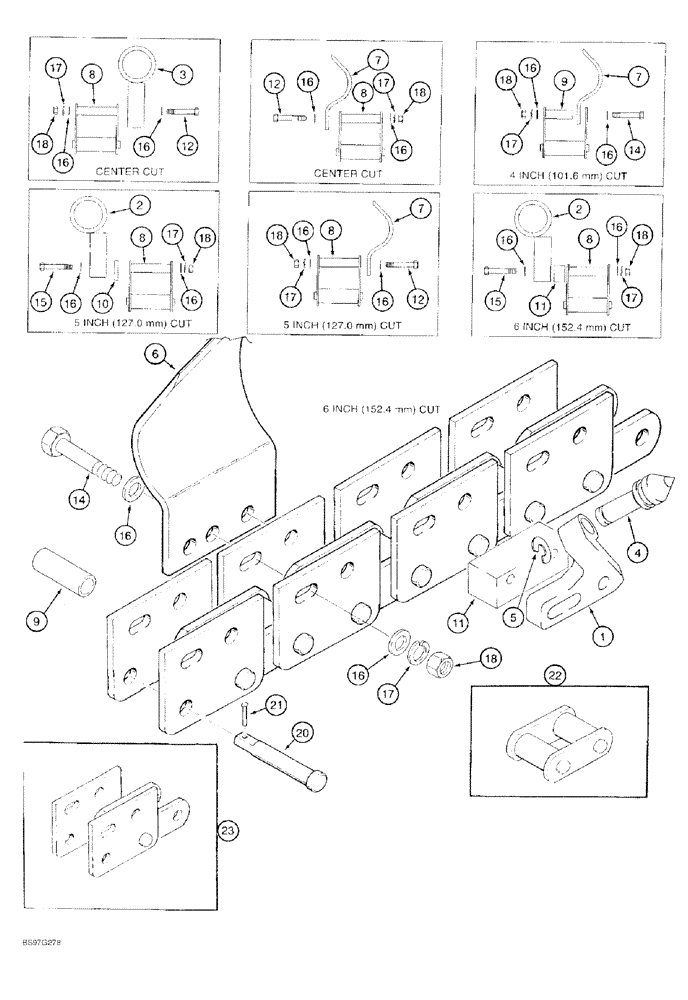

Запчасти Case 60 (09-028) - MIXED 1/2 CUP 1/2 CARBIDE CUTTERS, USED WITH HEAVY DUTY 165 CHAIN (38,000 LBS.)

1

183078A1

HOLDER

carbide bit, right hand

1шт.

2

183077A1

ADAPTER

HOLDER carbide bit, left hand

1шт.

3

183079A1

ADAPTER

HOLDER carbide bit, straight

1шт.

4

183109A1

BIT

cutting, carbide

1шт.

5

183108A1

CLIP

retainer

1шт.

6

183139A1

TOOTH

digging, left hand

1шт.

7

183138A1

TOOTH

digging, right hand

1шт.

8

183081A1

SPACER

tube, outside mount, 1-3/8 inch, center, 5 and 6 inch cuts

1шт.

9

183080A1

SPACER

tube, inside mount, 1-3/16 inch, 4 inch cut

1шт.

10

ZWB1165-5

SPACER

BLOCK 1/2 inch, 5 inch carbide cut

1шт.

11

ZWB1165-6

SPACER

BLOCK 1 inch, 6 inch carbide cut

1шт.

12

328-644

BOLT,Hex, 3/8" - 24 x 2-3/4", Gr 8

Center and 5 inch cup cuts

1шт.

13

328-656

BOLT,Hex, 3/8" - 24 x 3-1/2", Gr 8

5 inch carbide cut

1шт.

14

326-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

4 inch cut

1шт.

15

328-664

SCREW

BOLT hex, 3/8 NF x 4 inch, grade 8, 6 inch carbide cut

1шт.

16

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

17

492-11038

LOCK WASHER,3/8"

1шт.

18

232-4616

LOCK NUT,3/8"-24, GC

1шт.

19

ZW16500BXX

CHAIN ASSEMBLY digging, bare, 2 pitch.

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the chain part number and quantities needed of component parts for your application. Chain assemblies must be ordered from Wholegoods.

1шт.

20

ZW165PL

PIN link with cotter, Includes: Ref. 21

1шт.

21

ZW165CT

CHAIN (AG)

PIN cotter

1шт.

22

ZW165RL

CHAIN (AG)

LINK roller, repair

1шт.

23

ZW165RPL

CHAIN (AG)

LINK roller, repair, 2 pitch

1шт.
