(04-002) - IGNITION SYS. PRIOR TO S/N JAF0199037 - EXCEPT FOR JAF0198927-942, JAF0199024-025 & JAF0199033-036

Запчасти Case 60 (04-002) - IGNITION SYS. PRIOR TO S/N JAF0199037 - EXCEPT FOR JAF0198927-942, JAF0199024-025 & JAF0199033-036

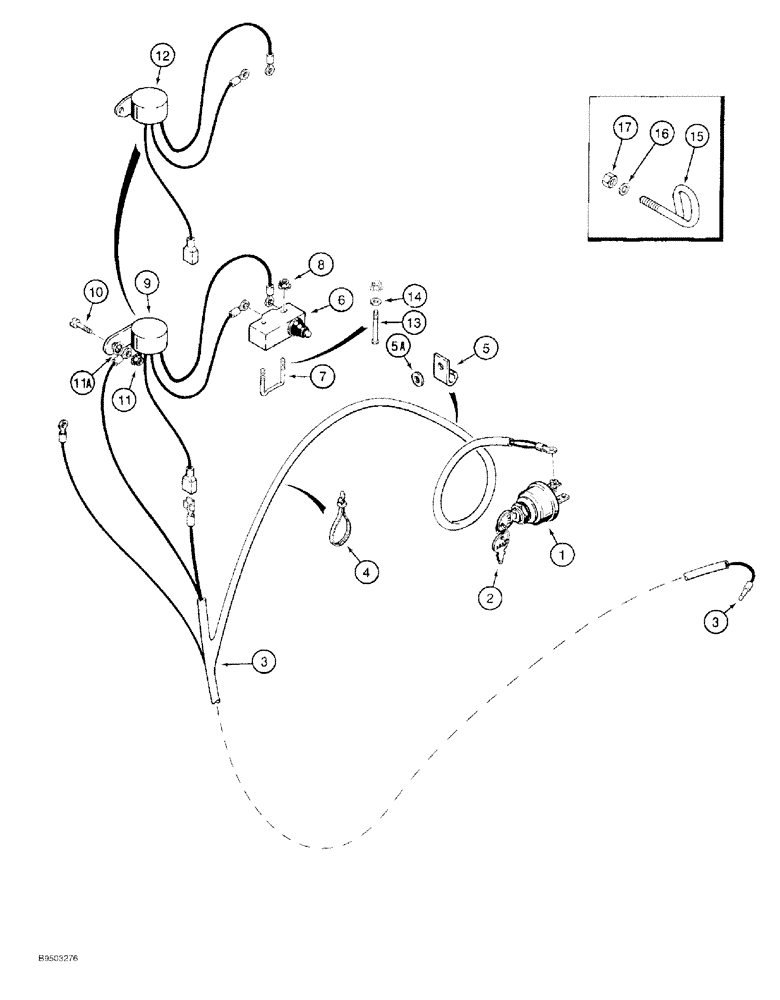

Схема запчастей Case 60 - (04-002) - IGNITION SYS. PRIOR TO S/N JAF0199037 - EXCEPT FOR JAF0198927-942, JAF0199024-025 & JAF0199033-036
3
10
15
3
17
11
11a
13
9
5
6
14
12
16
8
5a
1
4
7
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

H71498

SWITCH

ignition, includes two keys, Includes: Ref. 2

1шт.

2

A24509

KEY

KEY - ignition, set of two

1шт.

3

123259A1

HARNESS

ignition, replaces H437952

1шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

4шт.

5

A37179

CLIP

CLAMP P-type

1шт.

5a

H426767

WASHER

flat, 9/32 x 5/8 x 3/64 inch, clamp

1шт.

6

H435820

SWITCH

neutral start, includes terminal hardware

1шт.

7

H435814

U-BOLT

switch mounting, if used

1шт.

8

193-1003

NUT,Keps, w/LW,#6-32

External tooth

2шт.

9

H437741

CONTROL

RELAY no longer available, for service order H438687, Ref. 12

1шт.

10

59-11012

SCREW,Slotted Pan Hd, #10-32 x 3/4"

machine, pan head slotted, No. 10 NF x 3/4 inch

1шт.

11

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF

1шт.

11a

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

1шт.

12

H438687

CONTROL

RELAY

1шт.

13

470-10620

SCREW,Pan HD, #6 - 32 x 1-1/4"

If used

2шт.

14

495-31016

WASHER,#6

If used

2шт.

15

117590A1

GUIDE

rope

1шт.

Place engine start rope through Ref. 15 guide.

1шт.

16

H426767

WASHER

flat, 9/32 x 5/8 x 3/64 inch

1шт.

17

425-104

NUT,1/4"-20, Cl 5

1шт.
