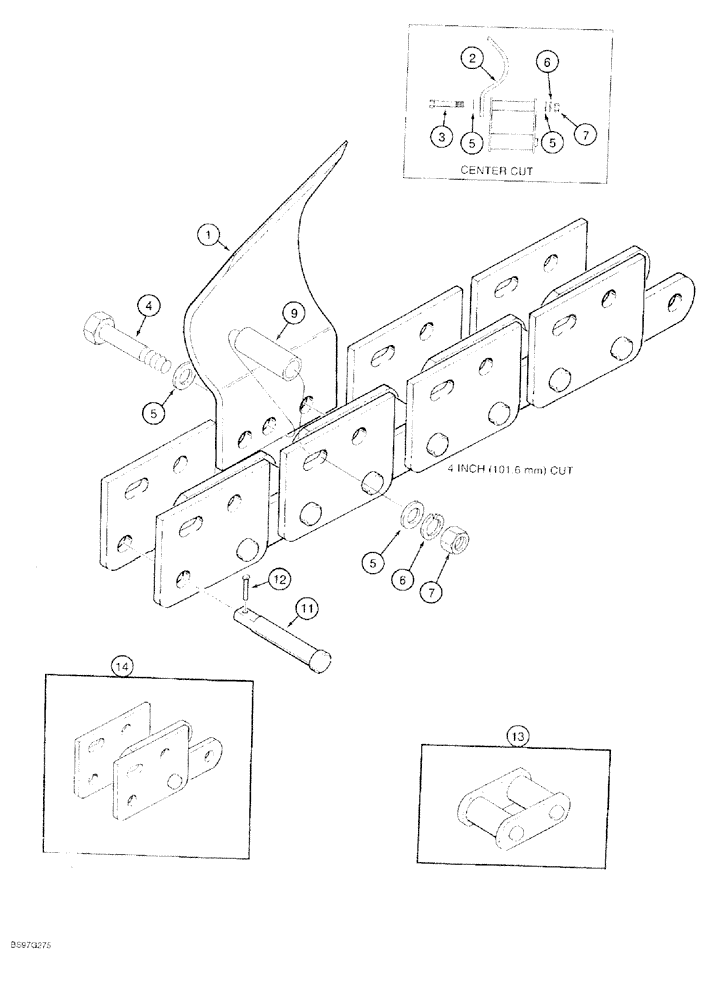

Запчасти Case 60 (09-022) - DIGGING TEETH AND CHAIN, HEAVY DUTY 165 DIGGING CHAIN (38,000 LBS.), 4 INCH DIGGING WIDTH

1

183138A1

TOOTH

digging, right hand

1шт.

2

183139A1

TOOTH

digging, left hand

1шт.

3

328-644

BOLT,Hex, 3/8" - 24 x 2-3/4", Gr 8

Center cut

1шт.

4

328-640

BOLT,Hex, 3/8" - 24 x 2-1/2", Gr 8

4 inch cut

1шт.

5

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

232-4616

LOCK NUT,3/8"-24, GC

1шт.

8

183081A1

SPACER

tube, outside mount, 1-3/8 inch, center cut

1шт.

9

183080A1

SPACER

tube, inside mount, 1-3/16 inch, 4 inch cut

1шт.

10

ZB16500BXX

CHAIN ASSEMBLY digging, bare, 2 pitch

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the chain part number and quantities needed of component parts for your application. Chain assemblies must be ordered from Wholegoods.

1шт.

10

ZW165042XX

CHAIN ASSEMBLY digging, cupped teeth, 2 pitch

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the chain part number and quantities needed of component parts for your application. Chain assemblies must be ordered from Wholegoods.

1шт.

10

ZWI6504RXX

CHAIN ASSEMBLY digging, rock and frost, bolt on tooth

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the chain part number and quantities needed of component parts for your application. Chain assemblies must be ordered from Wholegoods.

1шт.

10

ZW16504MXX

CHAIN ASSEMBLY digging, mixed tooth, cup and rock/frost

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the chain part number and quantities needed of component parts for your application. Chain assemblies must be ordered from Wholegoods.

1шт.

10

ZW16504SXX

CHAIN ASSEMBLY digging, solid weld terminator

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the chain part number and quantities needed of component parts for your application. Chain assemblies must be ordered from Wholegoods.

1шт.

11

ZW165PC

PIN

link with cotter, Includes: Ref. 12

1шт.

12

ZW165CT

CHAIN (AG)

PIN cotter

1шт.

13

ZW165RL

CHAIN (AG)

LINK roller, repair

1шт.

14

ZW165RPL

CHAIN (AG)

LINK roller, repair, 2 pitch

1шт.
