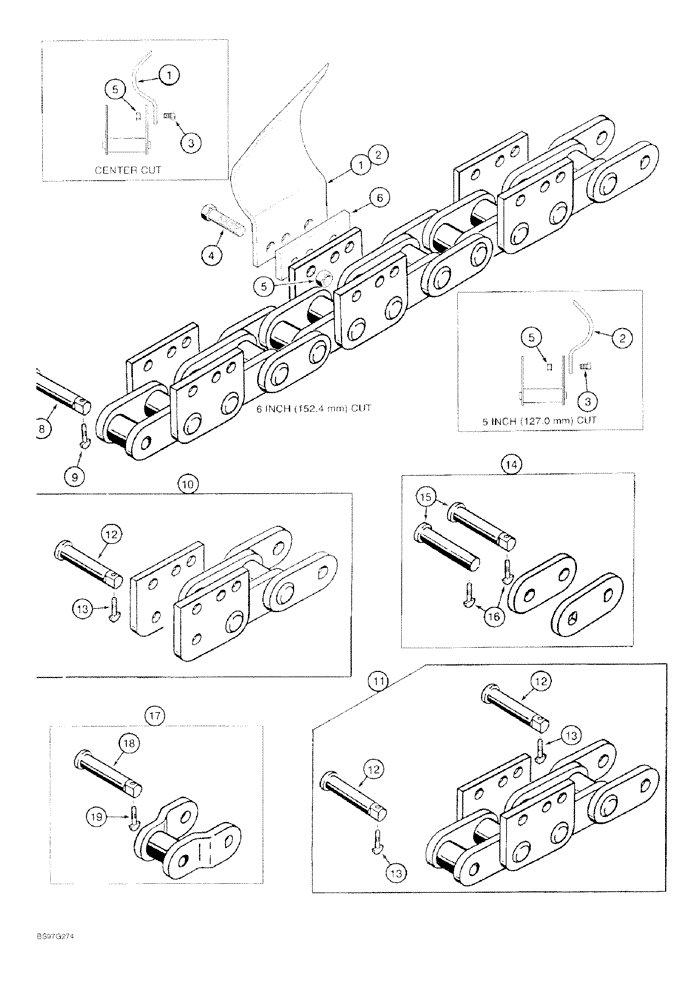

Запчасти Case 60 (09-020) - DIGGING TEETH AND CHAIN, STANDARD DUTY 164 DIGGING CHAIN (34,000 LBS.), 6 INCH DIGGING WIDTH

1

188750A1

TOOTH

digging, right hand

1шт.

2

188749A1

TOOTH

digging, left hand

1шт.

3

328-614

BOLT,Hex, 3/8" - 24 x 7/8", Gr 8

Center and 5 inch cut

1шт.

4

328-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 8

hex, 3/8 NF x 1-1/4 inch, grade 8, 6 inch cut

1шт.

5

232-4616

LOCK NUT,3/8"-24, GC

1шт.

6

H208355

SPACER

tooth, 6 inch cut

1шт.

7

ZB164062XX

CHAIN ASSEMBLY digging, cupped teeth, 2 pitch, Includes: Ref. 8 & 9

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the chain part number and quantities needed of component parts for your application. Chain assemblies must be ordered from Wholegoods.

1шт.

7

ZB164064XX

CHAIN ASSEMBLY digging, cupped teeth, 4 pitch, Includes: Ref. 8 & 9

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the chain part number and quantities needed of component parts for your application. Chain assemblies must be ordered from Wholegoods.

1шт.

8

253214A1

PIN

connector

1шт.

9

H85274

SPLIT PIN/SAFETY PIN

retaining

1шт.

10

H673238

CHAIN (AG)

SECTION ASSEMBLY repair, digging, 2 pitch, Includes: Ref. 12 & 13

1шт.

11

H564633

KIT

SECTION ASSEMBLY repair, digging chain, 4 pitch, Includes: Ref. 12 & 13

1шт.

12

H208454

AXLE PIN

connector

2шт.

13

H85274

SPLIT PIN/SAFETY PIN

retaining

2шт.

14

H564815

DRAG LINK

ASSEMBLY connector, digging chain, 1 pitch, includes 2 links, Includes: Ref. 15 & 16

1шт.

15

H208454

AXLE PIN

connector

2шт.

16

H85274

SPLIT PIN/SAFETY PIN

retaining

2шт.

17

H208462

DRAG LINK

ASSEMBLY half, offset, digging chain, 1 pitch, Includes: Ref. 18 & 19

1шт.

18

H208454

AXLE PIN

connector

1шт.

19

H85274

SPLIT PIN/SAFETY PIN

retaining

1шт.
