(09-018) - DIGGING TEETH AND CHAIN, STANDARD DUTY 164 DIGGING CHAIN (34,000 LBS.), 4 INCH DIGGING WIDTH

Запчасти Case 60 (09-018) - DIGGING TEETH AND CHAIN, STANDARD DUTY 164 DIGGING CHAIN (34,000 LBS.), 4 INCH DIGGING WIDTH

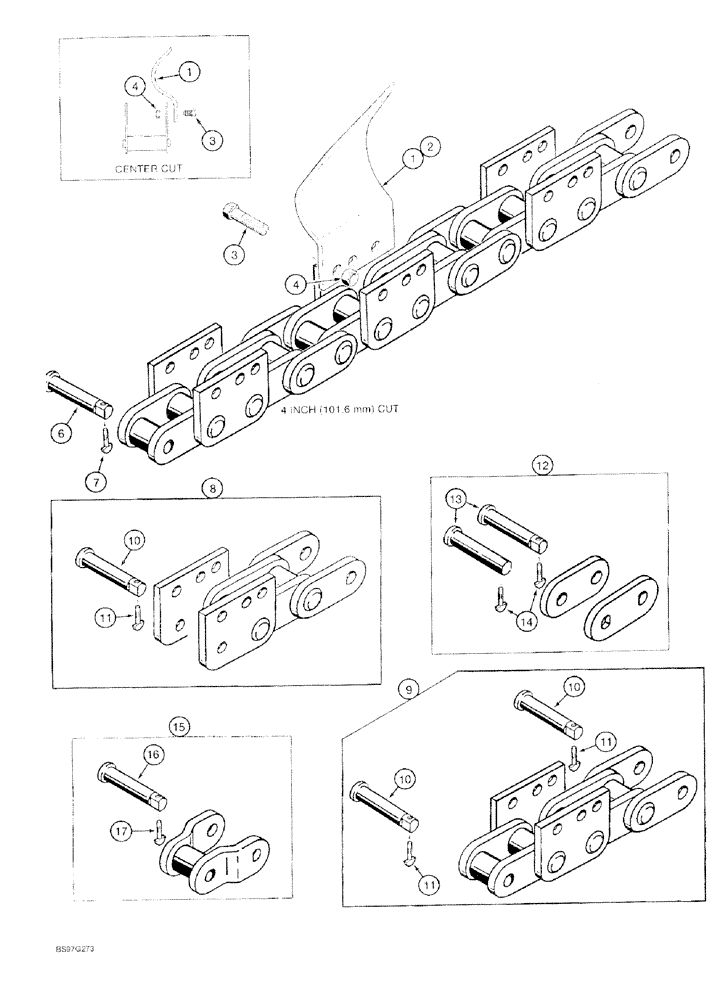

Схема запчастей Case 60 - (09-018) - DIGGING TEETH AND CHAIN, STANDARD DUTY 164 DIGGING CHAIN (34,000 LBS.), 4 INCH DIGGING WIDTH
10
14
7
8
1
11
4
3
6
11
15
9
12
16
3
2
11
17
4
10
10
1
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

188750A1

TOOTH

digging, right hand

1шт.

2

188749A1

TOOTH

digging, left hand (not shown)

1шт.

3

328-614

BOLT,Hex, 3/8" - 24 x 7/8", Gr 8

1шт.

4

232-4616

LOCK NUT,3/8"-24, GC

1шт.

5

ZB16400BXX

CHAIN ASSEMBLY digging, bare, 2 or 4 pitch, Includes: Ref. 6 & 7

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the chain part number and quantities needed of component parts for your application. Chain assemblies must be ordered from Wholegoods.

1шт.

5

ZB164042XX

CHAIN ASSEMBLY digging, cupped teeth, 2 pitch, Includes: Ref. 6 & 7

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the chain part number and quantities needed of component parts for your application. Chain assemblies must be ordered from Wholegoods.

1шт.

5

ZB164044XX

CHAIN ASSEMBLY digging, cupped teeth, 4 pitch, Includes: Ref. 6 & 7

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the chain part number and quantities needed of component parts for your application. Chain assemblies must be ordered from Wholegoods.

1шт.

5

ZB16404AXX

CHAIN ASSEMBLY digging, alligator rock and frost, Includes: Ref. 6 & 7

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the chain part number and quantities needed of component parts for your application. Chain assemblies must be ordered from Wholegoods.

1шт.

6

253214A1

PIN

connector, 2 pitch chain

1шт.

7

H85274

SPLIT PIN/SAFETY PIN

retaining

1шт.

8

H273238

SECTION ASSEMBLY repair, digging chain, 2 pitch, Includes: Ref. 10 & 11

1шт.

9

H564633

KIT

SECTION ASSEMBLY repair, digging chain, 4 pitch, Includes: Ref. 10 & 11

1шт.

10

H208454

AXLE PIN

connector

2шт.

11

H85274

SPLIT PIN/SAFETY PIN

retaining

2шт.

12

H564815

DRAG LINK

ASSEMBLY connector, digging chain, 1 pitch, includes 2 links, Includes: Ref. 13 & 14

1шт.

13

H208454

AXLE PIN

connector

2шт.

14

H85274

SPLIT PIN/SAFETY PIN

retaining

2шт.

15

H208462

DRAG LINK

ASSEMBLY half, offset, digging chain, 1 pitch, Includes: Ref. 16 & 17

1шт.

16

H208454

AXLE PIN

connector

1шт.

17

H85274

SPLIT PIN/SAFETY PIN

retaining

1шт.
