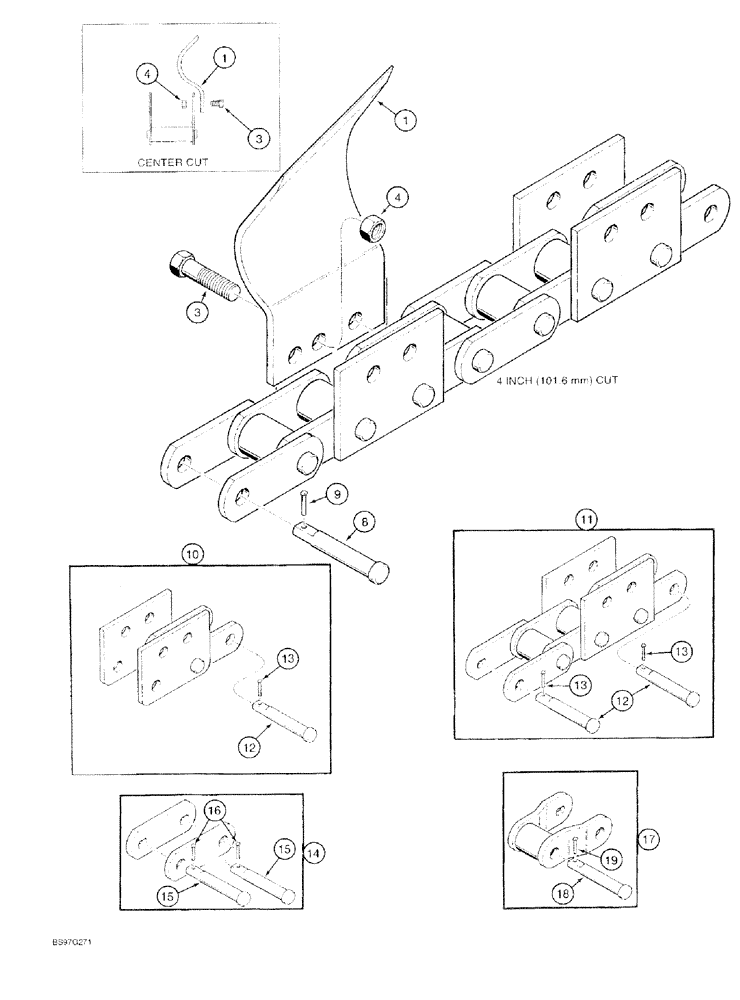

Запчасти Case 60 (09-014) - DIGGING TEETH AND CHAIN, STANDARD DUTY 163 DIGGING CHAIN (28,000 LBS.), 4 INCH DIGGING WIDTH

1

188750A1

TOOTH

digging, right hand

1шт.

2

188749A1

TOOTH

digging, left hand (not shown)

1шт.

3

328-614

BOLT,Hex, 3/8" - 24 x 7/8", Gr 8

1шт.

4

232-4616

LOCK NUT,3/8"-24, GC

1шт.

5

H208355

SPACER

tooth (set up patterns used prior to 1993)(not shown)

1шт.

6

328-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 8

hex, 3/8 NF x 1-1/4 inch, grade 8 (set up patterns prior to 1993)

1шт.

7

ZB16300BXX

CHAIN ASSEMBLY digging, bare, 2 or 4 pitch, Includes: Ref. 8 & 9

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the chain part number and quantities needed of component parts for your application. Chain assemblies must be ordered from Wholegoods.

1шт.

7

ZB163042XX

CHAIN ASSEMBLY digging, cupped teeth, 2 pitch, Includes: Ref. 8 & 9

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the chain part number and quantities needed of component parts for your application. Chain assemblies must be ordered from Wholegoods.

1шт.

7

ZB163044XX

CHAIN ASSEMBLY digging, cupped teeth, 4 pitch, Includes: Ref. 8 & 9

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the chain part number and quantities needed of component parts for your application. Chain assemblies must be ordered from Wholegoods.

1шт.

8

253215A1

PIN

connector

1шт.

9

H85274

SPLIT PIN/SAFETY PIN

retaining

1шт.

10

H673237

CHAIN (CE)

SECTION repair, digging, 2 pitches, Includes: Ref. 12 & 13

1шт.

11

H502054

CHAIN (CE)

SECTION repair, digging, 4 pitches, Includes: Ref. 12 & 13

1шт.

12

H30072

CONNECTOR, ELEC

CONNECTOR PIN

2шт.

13

H85274

SPLIT PIN/SAFETY PIN

retaining

2шт.

14

H504068

DRAG LINK

ASSEMBLY connector, digging chain, 1 pitch, includes 2 links, Includes: Ref. 15 & 16

1шт.

15

H30072

CONNECTOR, ELEC

CONNECTOR PIN

2шт.

16

H85274

SPLIT PIN/SAFETY PIN

retaining

2шт.

17

H59360

HALF-LINK

HALF LINK ASSEMBLY offset, digging chain, 1 pitch, Includes: Ref. 18 & 19

1шт.

18

H30072

CONNECTOR, ELEC

CONNECTOR PIN

1шт.

19

H85274

SPLIT PIN/SAFETY PIN

retaining

1шт.
