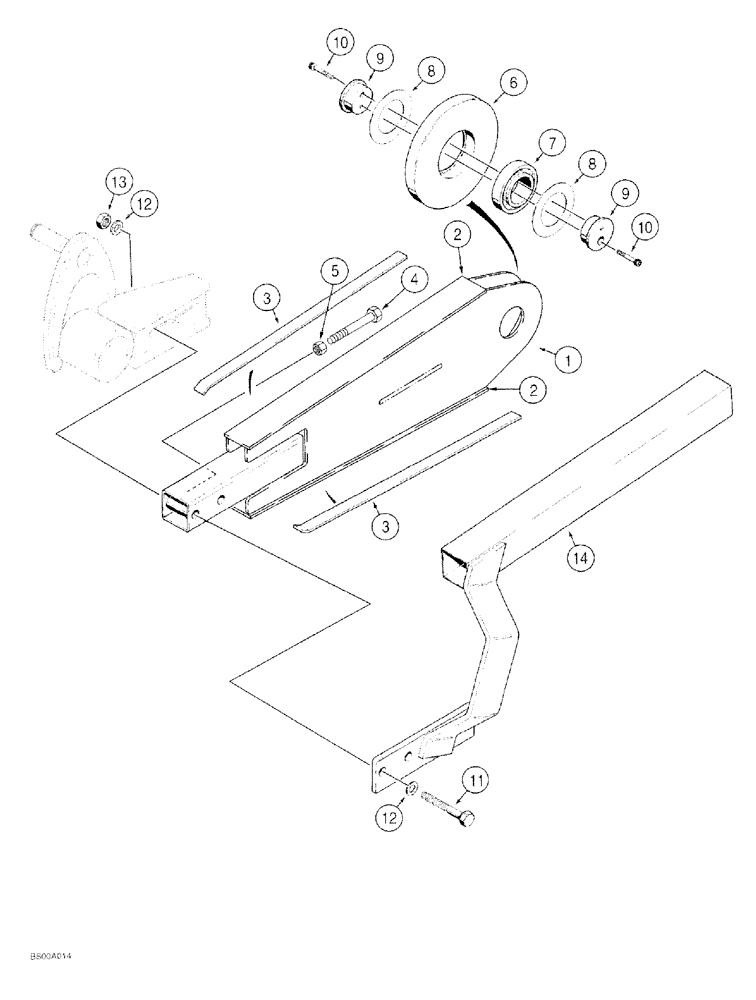

Запчасти Case 60 (09-013A) - ROLLER BOOM, 24 INCH DIGGING DEPTH WITH TWO BOLT CHAIN ADJUSTMENT

1

301806A1

BOOM

ASSEMBLY roller type, 24 inch digging depth, Includes: Ref. 2 & 3

1шт.

2

301804A1

STRIP wear, inner, Serial Range: welded-boom

2шт.

3

301803A1

STRIP wear, outer, Serial Range: welded-boom

2шт.

4

H334375

BOLT

adjusting, 1/2 NC x 3-3/4 inch

1шт.

5

425-148

JAM NUT,Jam, 1/2"-13, G5

1шт.

6

H437530

ROLL

chain, 8 inch O.D.

1шт.

7

F20543

THRUST BEARING

ball, roller

1шт.

8

H437532

SEAL,68mm ID x 102mm OD x 1.55mm Thk

bearing

2шт.

9

H437531

CAP

end

2шт.

10

461-33824

HEX SOC SCREW,3/8" - 16 x 1-1/2"

hex socket, 3/8 NC x 1-1/2 inch

2шт.

11

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

12

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

flat, special, hardened

4шт.

13

232-41110

NUT,5/8"-11, GC

2шт.

14

H674321

CHAMBER

GUARD chain

1шт.
