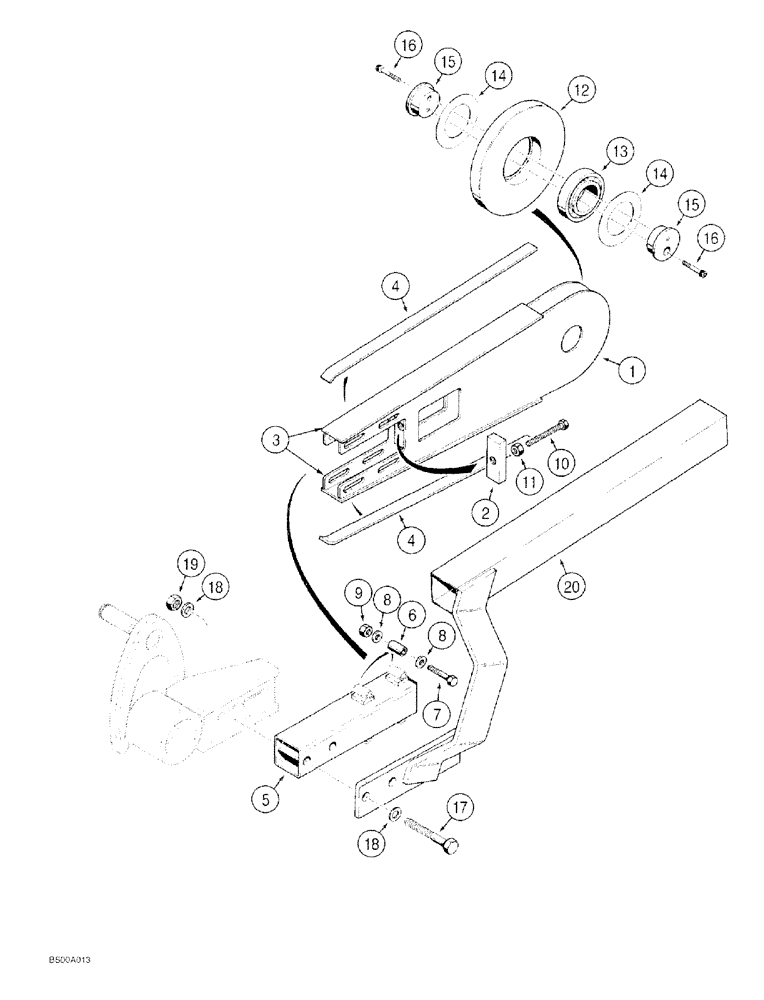

Запчасти Case 60 (09-012) - ROLLER BOOM, 24 INCH DIGGING DEPTH WITH FOUR BOLT CHAIN ADJUSTMENT

1

H674316

BOOM

ASSEMBLY roller type, 24 inch digging depth, Includes: Ref. 2 - 4

1шт.

2

H437523

BLOCK

adjustment, Serial Range: welded-boom

1шт.

3

H437708

PLATE

STRIP wear, inner, Serial Range: welded-boom

2шт.

4

H437709

PLATE

STRIP wear, outer, Serial Range: welded-boom

2шт.

5

H674218

TUBE

ASSEMBLY boom, Includes: Ref. 6

1шт.

6

D95556

SPACER

bolt holding

4шт.

7

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

Boom tube to boom

4шт.

8

496-21041

WASHER,13/32" x 13/16" x .089", HDN

8шт.

9

230-4216

LOCK NUT,3/8"-16, GA

4шт.

10

113-2660

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5, Full Thd

hex, full threads, 5/8 NC x 3-1/2 inch, adjusting

1шт.

11

425-1410

JAM NUT,Jam, 5/8"-11, G5

hex, jam, 5/8 inch NC

1шт.

12

H437530

ROLL

chain, 8 inch OD

1шт.

13

F20543

THRUST BEARING

ball, roller

1шт.

14

H437532

SEAL,68mm ID x 102mm OD x 1.55mm Thk

bearing

2шт.

15

H437531

CAP

end

2шт.

16

461-33824

HEX SOC SCREW,3/8" - 16 x 1-1/2"

hex socket, 3/8 NC x 1-1/2 inch

2шт.

17

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

18

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

flat, special, hardened

4шт.

19

232-41110

NUT,5/8"-11, GC

2шт.

20

H674321

CHAMBER

GUARD chain

1шт.
