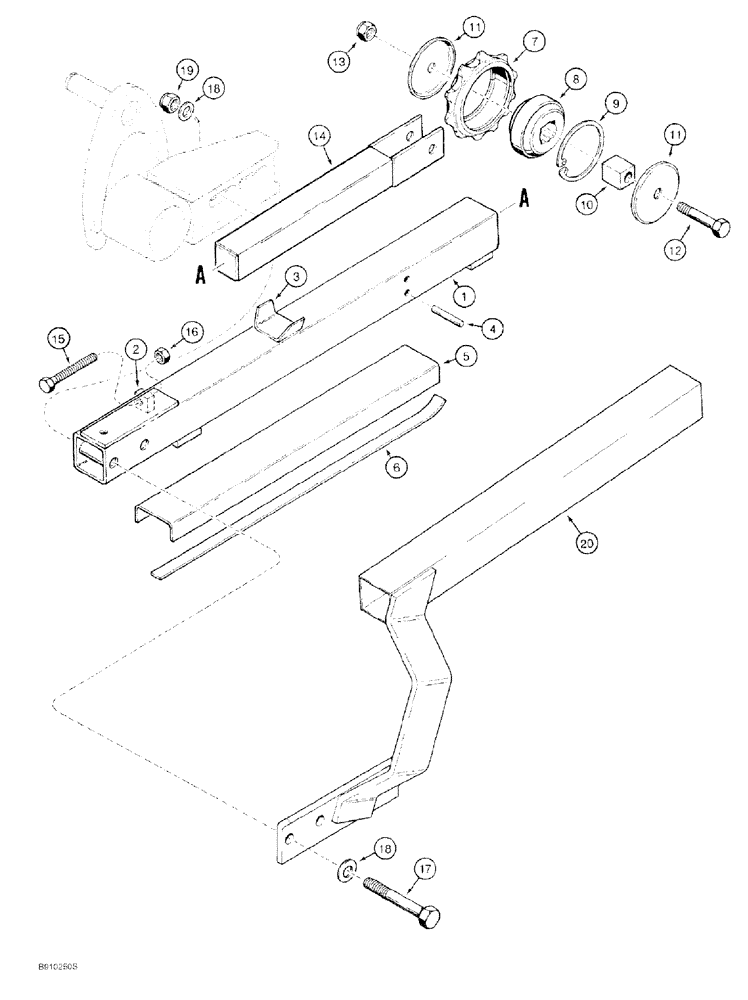

Запчасти Case 60 (09-010) - CHANNEL BOOM, 36 INCH DIGGING DEPTH

1

H613075

BOOM

ASSEMBLY channel type, 36 inch (914 mm) long, Includes: Ref. 2 - 6

1шт.

2

H26005

TIGHTENER

LUG digging chain, Serial Range: weld-boom

1шт.

3

H34041

GUIDE

chain, Serial Range: weld-boom

1шт.

4

H34207

PIN

stop, Serial Range: weld-boom

2шт.

5

H308585

GUIDE

CHANNEL, Serial Range: weld-boom

1шт.

6

H309401

GUIDE

PLATE wear, weld to lower channel

1шт.

7

H33563

DRIVE SPROCKET

boom end

1шт.

8

H747139

BALL BEARING

ball, with seals

1шт.

9

H33837

RING

snap, bearing retaining

1шт.

10

H232645

BUSHING

square

1шт.

11

H350785

WASHER

flat, special

2шт.

12

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

13

230-42110

LOCK NUT,5/8"-11, GA

hex, self-locking, 5/8 inch NC

1шт.

14

H613083

END ASSY.

channel boom, weld on

1шт.

15

H42473

ADJUSTMENT SCREW,Spcl, 1/2" - 13 x 3 3/4", Gr 5

adjusting, 1/2 NC x 3-3/4 inch

1шт.

16

425-148

JAM NUT,Jam, 1/2"-13, G5

1шт.

17

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

18

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

flat, special, hardened

4шт.

19

232-41110

NUT,5/8"-11, GC

2шт.

20

H674221

PROTECTOR

GUARD chain

1шт.
