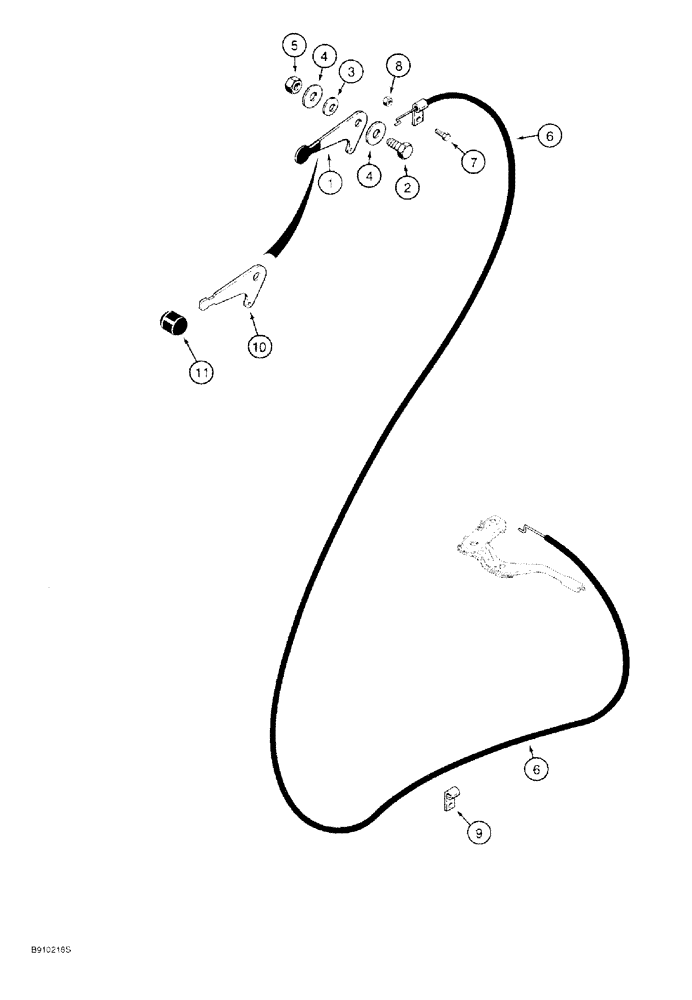

Запчасти Case 60 (03-002) - THROTTLE CONTROL

1

H437831

LARGE PLATE

PLATE, LARGE LEVER throttle control, no longer used, for service order (1) each of H439169 lever and A177441 knob, Refs. 10 and 11

1шт.

2

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

3

D33544

WASHER

SPRING Belleville

1шт.

4

495-21050

WASHER,7/16"

(Flat, 1/2 x 1-1/4 x 5/64")

2шт.

5

232-4116

NUT,3/8"-16, GC

1шт.

6

H437948

CABLE

throttle, includes clamp at lever, attaches to governor arm

1шт.

7

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

8

232-4114

LOCK NUT,1/4"-20, GC

1шт.

9

H32698

CLIP

CLAMP P-type

1шт.

10

H439169

LARGE PLATE

PLATE, LARGE LEVER throttle control

1шт.

11

A177441

KNOB

lever, red

1шт.
