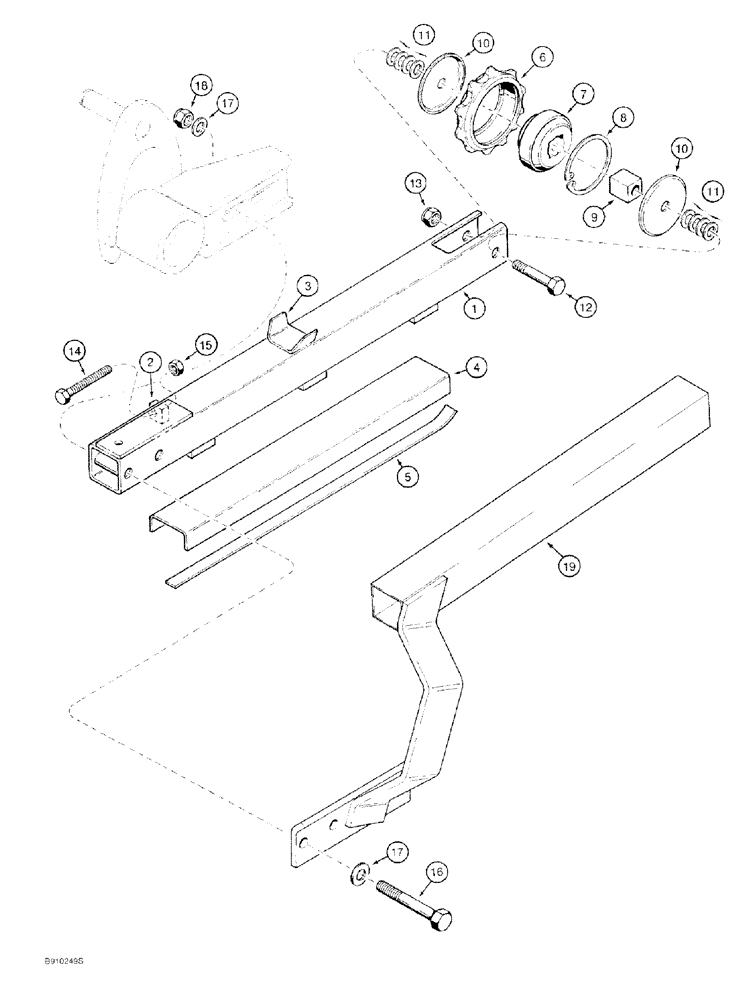

Запчасти Case 60 (09-008) - CHANNEL BOOM, 24 INCH DIGGING DEPTH

1

H612143

BOOM

ASSEMBLY channel type, 24 inch digging depth, Includes: Ref. 2 - 5

1шт.

2

H26005

TIGHTENER

LUG digging chain, Serial Range: weld-boom

1шт.

3

H34041

GUIDE

chain, Serial Range: weld-boom

1шт.

4

H311118

CHANNEL

lower, Serial Range: weld-boom

1шт.

5

H311092

STRIP

wear, Serial Range: weld-channel

1шт.

6

H33563

DRIVE SPROCKET

boom end

1шт.

7

H747139

BALL BEARING

ball, with seals

1шт.

8

H33837

RING

snap, bearing retaining

1шт.

9

H232645

BUSHING

square

1шт.

10

H350785

WASHER

flat, special

2шт.

11

495-11066

WASHER,5/8", SAE

flat, 21/32 x 1-5/16 x 3/32 inch

8шт.

12

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

13

230-42110

LOCK NUT,5/8"-11, GA

hex, self-locking, 5/8 inch NC

1шт.

14

H334375

BOLT

adjusting, 1/2 NC x 3-3/4 inch

1шт.

15

425-148

JAM NUT,Jam, 1/2"-13, G5

1шт.

16

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

17

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

flat, special, hardened

4шт.

18

232-41110

NUT,5/8"-11, GC

2шт.

19

H674321

CHAMBER

GUARD chain

1шт.
