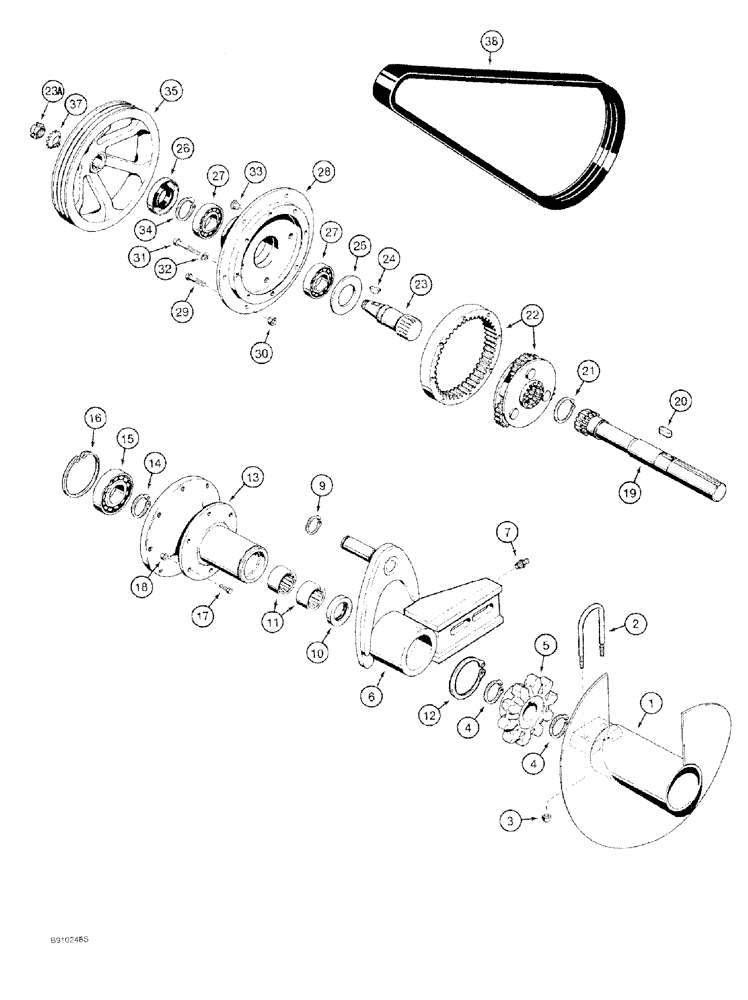

Запчасти Case 60 (09-006) - DIGGING DRIVE AND AUGER
№
Артикул
Название
Примечание
Количество
1
H674456
AUGER
dirt
1шт.
2
H34439
U-BOLT
U auger retaining
1шт.
3
232-4118
NUT,1/2"-13, GC
2шт.
4
100-11150
SNAP RING,#150, Ext
Sprocket
2шт.
5
H404004
DRIVE SPROCKET
digging chain
1шт.
6
H674179
CRANK
boom
1шт.
7
219-1
LUBE NIPPLE,1/8" - 27 NPTF
1шт.
9
100-11100
SNAP RING,#100, Ext
Washer
1шт.
10
406651R91
SEAL ASSY.,36.22mm ID x 57.3mm OD x 9.53mm Thk
oil, bearing
1шт.
11
F7356
NEEDLE BEARING,Needle, 38.1mm ID x 47.63mm OD x 22.23mm W
needle, inner
2шт.
12
103-11300
SNAP RING,#300, Ext
Crank
1шт.
13
H437241
HOUSING
planetary, right hand
1шт.
14
100-11156
SNAP RING,#156, Ext
Bearing, small
1шт.
15
ST215
BEARING, BALL,40 mm ID x 80 mm OD x 18 mm
outer
1шт.
16
100-21315
SNAP RING,3.156", Int, #315
Brg, large
1шт.
17
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
6шт.
18
232-4115
LOCK NUT,5/16"-18, GC
6шт.
19
H437243
SHAFT
output, planetary
1шт.
20
H404012
KEY
square, 5/16 x 7/8 inch, Serial Range: sprocket-shaft
1шт.
21
100-11175
SNAP RING,#175, Ext
Gear
1шт.
22
H674093
GEAR-SET
ASSEMBLY planetary, component parts not serviced separately
1шт.
23
H437242
SHAFT
input, planetary, Includes: Ref. 23A
1шт.
23a
54-1004
BEARING LOCK NUT,Bearing, .7874" Bore
bearing lock, N-04
1шт.
24
126-17
WOODRUFF KEY,#91, 1/4" x 3/4"
Input shaft to sheave
1шт.
25
111195A1
THRUST WASHER
thrust
2шт.
26
62654C1
OIL SEAL
oil, bearing
1шт.
27
40025
BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"
ball, input shaft
2шт.
28
H437240
CASE
HOUSING planetary, left hand
1шт.
29
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
6шт.
30
232-4115
LOCK NUT,5/16"-18, GC
7шт.
31
413-536
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
8шт.
33
217-436
PLUG,Hex Soc, 3/8" - 18 NPTF
3шт.
34
100-11137
SNAP RING,#137, Ext
Bearing
1шт.
35
H437269
SHEAVE
trencher drive
1шт.
37
55-1004
BEARING WASHER,Type W-04
bearing lock, SAE No. W-04
1шт.
38
H437739
V-BELT,1.22" W x 66.50" L, 3 Ribs
Trencher Drive
1шт.
Выбрано товаров: 37
