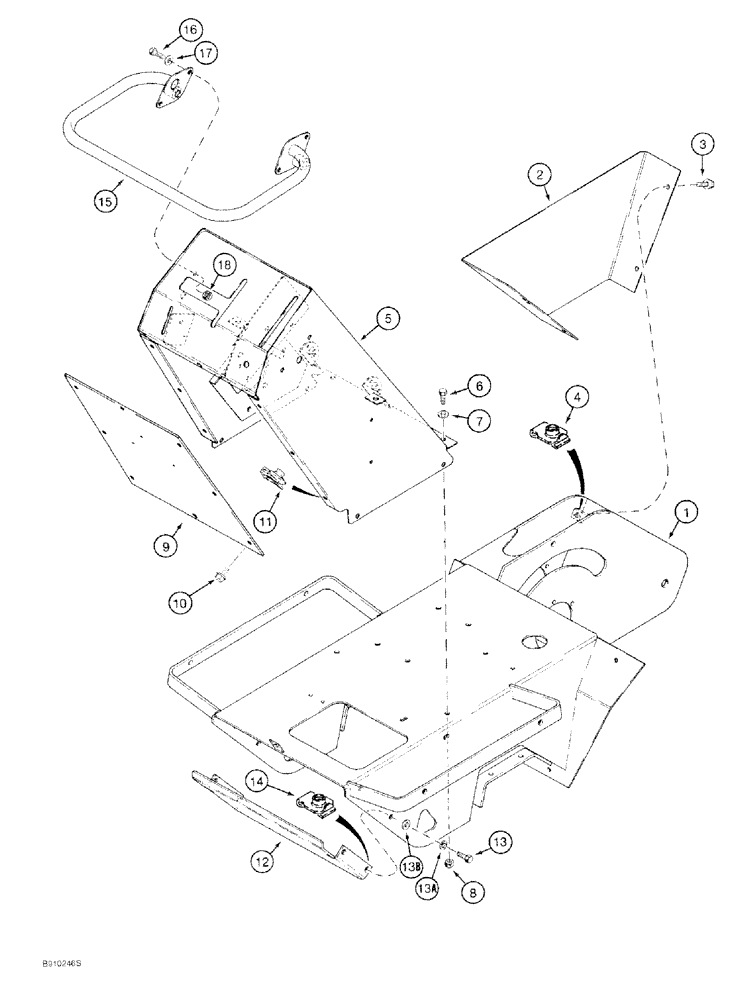

Запчасти Case 60 (09-002) - MAIN FRAME, COVERS AND CONSOLE

1

H674016

CHASSIS

main

1шт.

2

H438167

COVER

lower, left hand

1шт.

3

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

4

H346650

NUT

U-type, 5/16 inch NC

4шт.

5

117503A1

BRACKET

CONSOLE front, replaces H674086

1шт.

6

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

7

496-21041

WASHER,13/32" x 13/16" x .089", HDN

6шт.

8

232-4116

NUT,3/8"-16, GC

6шт.

9

H437247

PLATE

console, rear

1шт.

10

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

8шт.

11

H346650

NUT

U-type, 5/16 inch NC

8шт.

12

H437268

PLATE

console, lower rear

1шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Replaces hex flange bolt used on some models

4шт.

13a

492-11031

LOCK WASHER,5/16"

4шт.

13b

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

4шт.

14

H346650

NUT

U-type, 5/16 inch NC

4шт.

15

H674160

HANDLE

steering

1шт.

16

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

17

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

18

232-4116

NUT,3/8"-16, GC

4шт.
