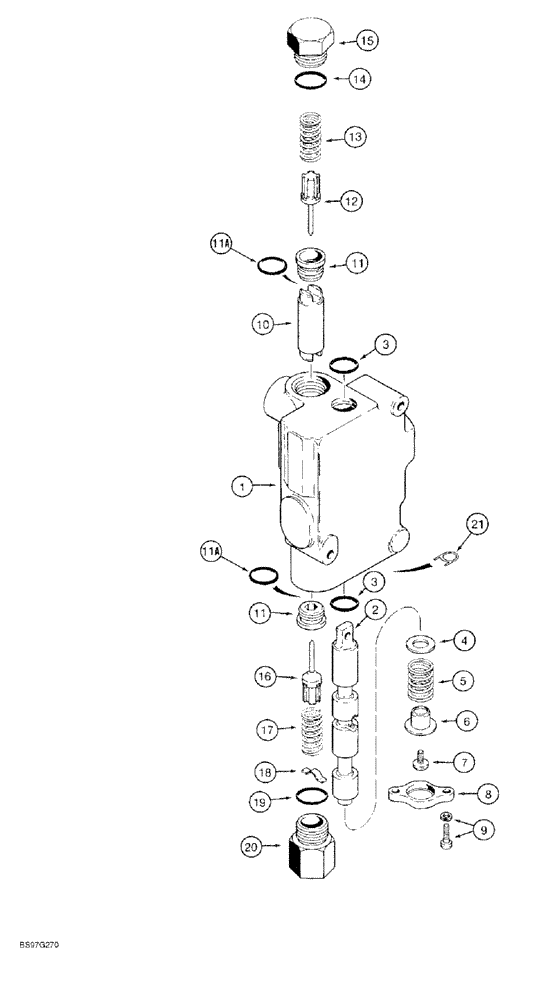

Запчасти Case 60 (08-006) - CONTROL VALVE ASSEMBLY

H674626

VALVE

ASSEMBLY control, lift, see Figure 8-2 for mounting hardware, Includes: Ref. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

BODY control valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL boom lift

1шт.

3

H438030

O-RING

spool

2шт.

H674835

KIT

centering spring, Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER spring seat

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING centering

1шт.

6

NSS

NOT SOLD SEPARAT

SEAT spring

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW spool

1шт.

8

NSS

NOT SOLD SEPARAT

CAP end

1шт.

9

NSS

NOT SOLD SEPARAT

SCREW with lockwasher, end cap

2шт.

10

H438716

PLUNGER

load check

1шт.

11

192069A1

SEAT

lockout spring, Includes: Ref. 11A

2шт.

11a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Seat

1шт.

192068A1

KIT

check valve, A port, Includes: Ref. 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

POPPET check valve

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING poppet

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING plug

1шт.

15

NSS

NOT SOLD SEPARAT

PLUG check valve

1шт.

H674837

KIT

check valve, B port, Includes: Ref. 16 - 20

1шт.

16

NSS

NOT SOLD SEPARAT

POPPET check valve

1шт.

17

NSS

NOT SOLD SEPARAT

SPRING poppet

1шт.

18

NSS

NOT SOLD SEPARAT

SEAT spring

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING port adapter

1шт.

20

NSS

NOT SOLD SEPARAT

ADAPTER port

1шт.

21

100408A1

PLATE

oriface

1шт.
