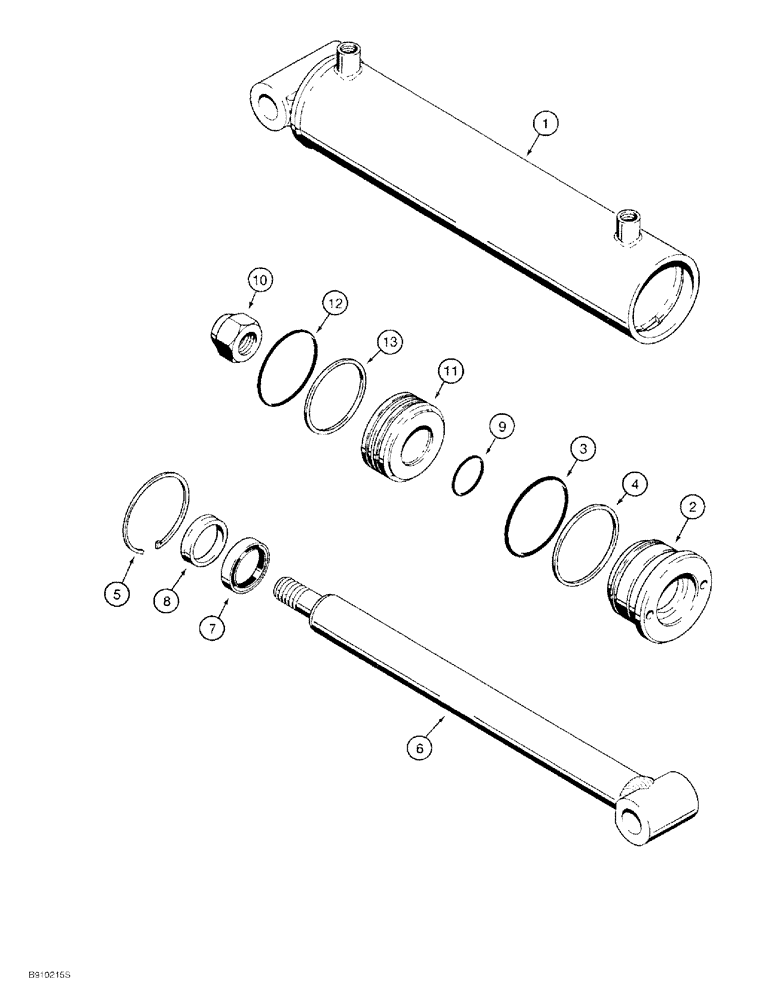

Запчасти Case 60 (08-004) - TRENCHER LIFT CYLINDER ASSEMBLY

H674013

CYLINDER

ASSEMBLY 76 (3) ID x 305 mm (12 inch) stroke, no longer available, order 136790A1, Includes: Ref. 1 - 13

1шт.

1

H674832

TUBE

cylinder

1шт.

2

H438712

GLAND

cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING gland

1шт.

Part of Seal Kit, P/N H674834

1шт.

4

NSS

NOT SOLD SEPARAT

RING backup, gland O-ring

1шт.

Part of Seal Kit, P/N H674834

1шт.

5

NSS

NOT SOLD SEPARAT

RING retaining, gland

1шт.

Part of Seal Kit, P/N H674834

1шт.

6

H674833

ROD

piston

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

Part of Seal Kit, P/N H674834

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL U-cup, piston rod

1шт.

Part of Seal Kit, P/N H674834

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING piston, Serial Range: rod-piston

1шт.

Part of Seal Kit, P/N H674834

1шт.

10

H438714

LOCK NUT,7/8" - 14

hex, self-locking, piston rod

1шт.

11

H438713

PISTON

cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

Part of Seal Kit, P/N H674834

1шт.

13

NSS

NOT SOLD SEPARAT

RING backup, piston O-ring

1шт.

Part of Seal Kit, P/N H674834

1шт.

H674834

SEAL PACKAGE

KIT includes Refs. 3-5, 7-9, 12 and 13

1шт.

136790A1

CYLINDER

ASSEMBLY 76 (3) ID x 305 mm (12 inch) stroke, Includes: Ref. 1 - 13

1шт.

1

143110A1

TUBE

136790A1 cylinder assembly

1шт.

2

H438712

GLAND

cylinder, 136790A1 assembly

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING gland, 136790A1 cylinder assembly

1шт.

Part of Seal Kit, P/N H674834

1шт.

4

NSS

NOT SOLD SEPARAT

RING backup, gland O-ring, 136790A1 cylinder assembly

1шт.

Part of Seal Kit, P/N H674834

1шт.

5

NSS

NOT SOLD SEPARAT

RING retaining, gland, 136790A1 cylinder assembly

1шт.

Part of Seal Kit, P/N H674834

1шт.

6

143111A1

ROD

piston, 136790A1 cylinder assembly

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER piston rod, 136790A1 cylinder assembly

1шт.

Part of Seal Kit, P/N H674834

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL U-cup, piston rod136790A1, cylinder assembly

1шт.

Part of Seal Kit, P/N H674834

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING piston rod to piston, 136790A1 cylinder assembly

1шт.

Part of Seal Kit, P/N H674834

1шт.

10

H438714

LOCK NUT,7/8" - 14

hex, self-locking, piston rod, 136790A1 cylinder assembly

1шт.

11

145225C2

PISTON

cylinder, 136790A1 assembly

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING piston136790A1 cylinder assembly

1шт.

13

NSS

NOT SOLD SEPARAT

RING backup, piston O-ring136790A1 cylinder assembly

1шт.

H674834

SEAL PACKAGE

KIT includes Refs. 3-5, 7-9, 12 and 13136790A1 cylinder assembly

1шт.
