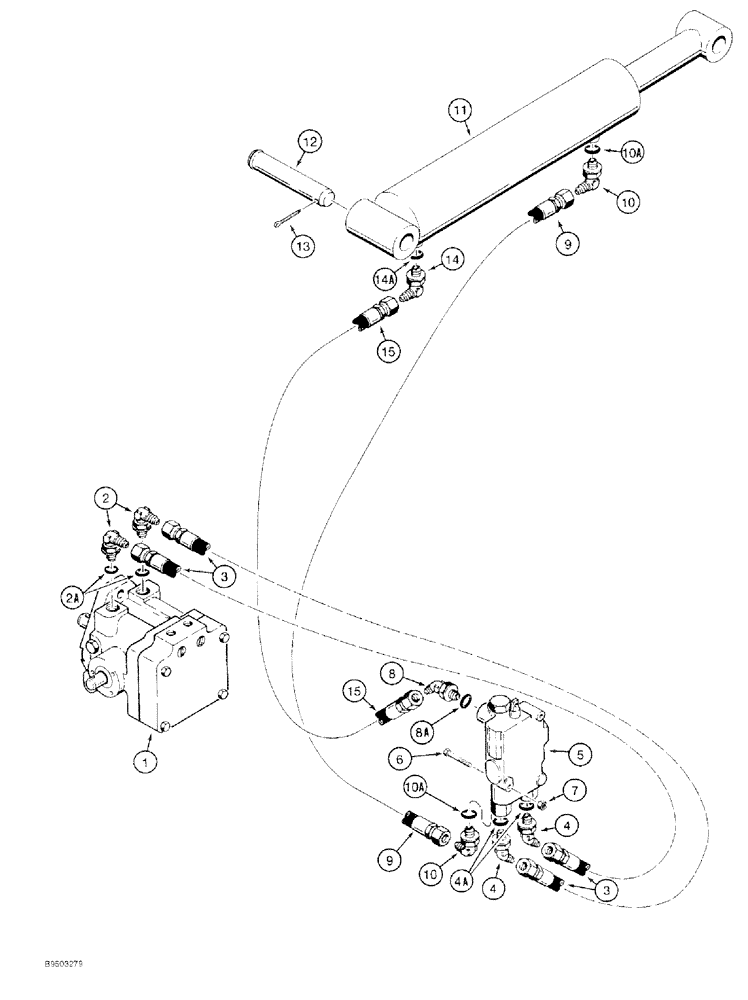

Запчасти Case 60 (08-002) - TRENCHER LIFT HYDRAULIC CIRCUIT

1

H674324

PUMP

ASSEMBLY ground drive and trencher lift, parts list Figure 6-10, mounting hardware on Figure 6-08

1шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 2A

2шт.

3

H437955

HOSE

686 mm (27 inch) long, pump to control valve

2шт.

4

218-5148

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

45 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss, Includes: Ref. 4A

2шт.

4a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

H674626

VALVE

ASSEMBLY control, lift, parts list Figure 8-7

1шт.

6

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

hex, 1/4 NC x 1-3/4 inch

2шт.

7

232-4114

LOCK NUT,1/4"-20, GC

2шт.

8

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. Ref. 8A

1шт.

9

H437744

HOSE ASSY.

900 mm (35-7/16 inch) long, control valve to cylinder, rod end

1шт.

10

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 10A

1шт.

11

REF

INSTRUCTION

CYLINDER ASSEMBLY 3 (76) ID x 12 inch (305 mm) stroke, see Figure 8-4 for correct assembly and components

1шт.

12

H56606

AXLE PIN,30.16mm OD x 142.08mm L

clevis

1шт.

13

432-1224

COTTER PIN,3/16" x 1-1/2"

1шт.

14

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 14A

2шт.

15

H437745

HOSE ASSY.

660 mm (26 inch) long, cylinder closed end to control valve

1шт.

2a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
