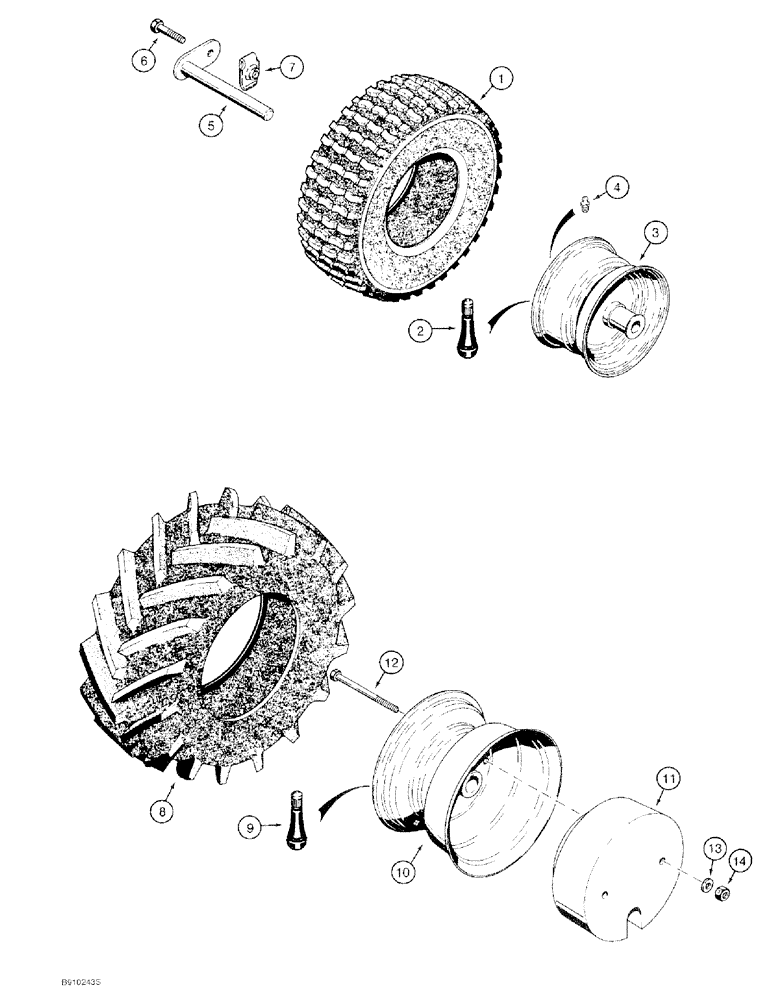

Запчасти Case 60 (06-018) - WHEELS AND TIRES

1

REF

INSTRUCTION

TIRE front, 13 x 5 - 6 ST, purchase locally

1шт.

2

H261917

VALVE

STEM tire inflation

1шт.

3

H437558

WHEEL

rim front

1шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

5

H674216

AXLE

front wheel

1шт.

6

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

7

H346650

NUT

U-type, 5/16 inch NC

1шт.

8

REF

INSTRUCTION

TIRE rear, 16 x 6.5 - 8, purchase locally

2шт.

9

H261917

VALVE

STEM tire inflation

2шт.

10

H437894

RIM

WHEEL rear

2шт.

11

H351759

WHEEL

WEIGHT rear, if used

2шт.

12

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

hex, 5/16 NC x 4-1/2 inch

4шт.

13

495-21038

WASHER,5/16"

(3/8 x 7/8 x 5/64")

4шт.

14

230-4215

NUT,5/16"-18, GA

4шт.
