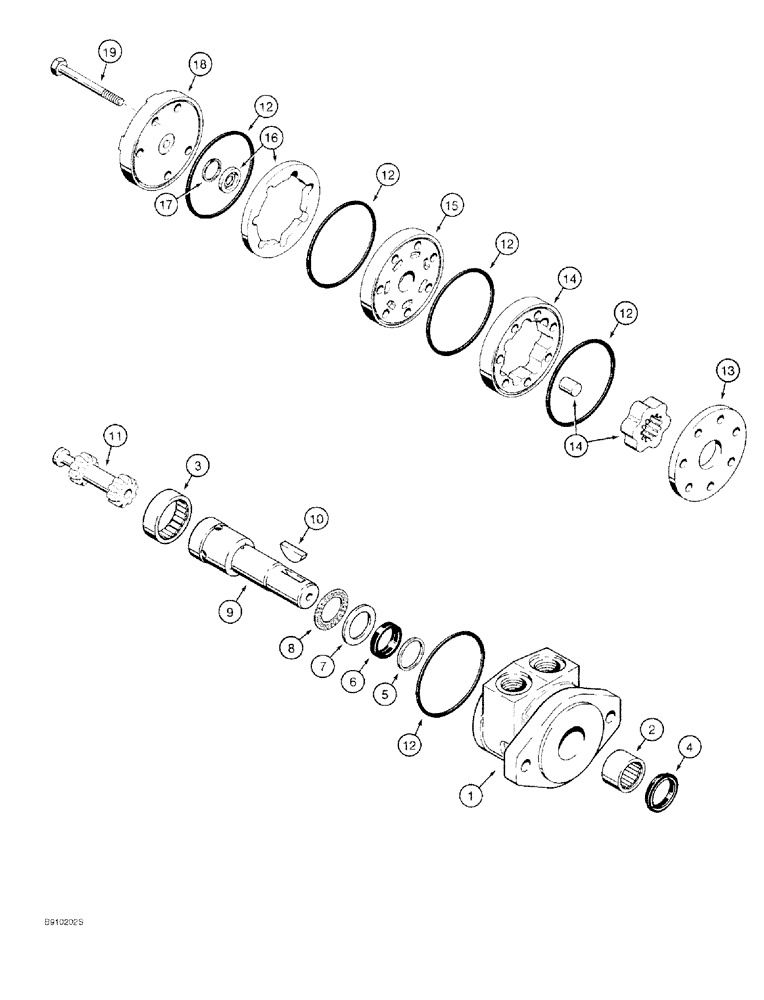

Запчасти Case 60 (06-014) - HYDROSTATIC DRIVE MOTOR H674323

H674323

MOTOR

ASSEMBLY hydrostatic drive, see Figure 6-2 for mounting parts, no longer available, for service order 111485A1, Figure 6-16, Includes: Ref. 1 - 19

1шт.

H674685

HOUSING

ASSEMBLY motor, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING motor

1шт.

2

H438422

NEEDLE BEARING

needle, small

1шт.

3

H438423

NEEDLE BEARING

needle, large

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL shaft, outer

1шт.

Part of Seal Kit, P/N 1980817C1

1шт.

5

NSS

NOT SOLD SEPARAT

RING backup, housing seal

1шт.

Part of Seal Kit, P/N 1980817C1

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL housing

1шт.

Part of Seal Kit, P/N 1980817C1

1шт.

7

700709221

THRUST WASHER

thrust

1шт.

8

A188926

THRUST BEARING,27.03mm ID x 40.87mm OD x 3.17mm W

thrust

1шт.

9

700709223

SHAFT

coupling

1шт.

10

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

11

H438428

LINK

drive

1шт.

12

NSS

NOT SOLD SEPARAT

RING seal, large

5шт.

Part of Seal Kit, P/N 1980817C1

1шт.

13

700709224

PLATE

wear

1шт.

14

H438429

SET

ROTOR drive motor

1шт.

15

700709227

TUBE ASSY.

MANIFOLD plate

1шт.

16

700709228

COMMUTATOR

includes center ring

1шт.

17

NSS

NOT SOLD SEPARAT

RING seal, small

1шт.

Part of Seal Kit, P/N 1980817C1

1шт.

18

H438432

COVER

end

1шт.

19

H438433

BOLT

special

5шт.

1980817C1

SEAL KIT

seal, includes References 4, 5, 6, 12, and 17, replaces 1986830C1

1шт.
