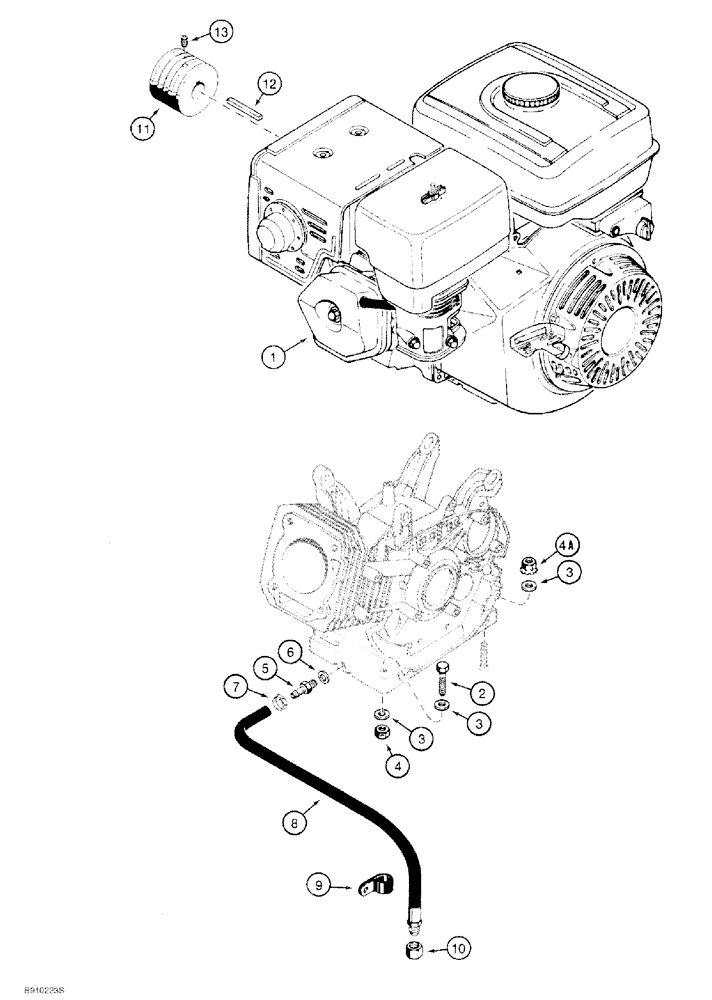

Запчасти Case 60 (02-002) - ENGINE MOUNTING AND OIL DRAIN HOSE

1

H674790

ENGINE ASSEMBLY

ENGINE ASSY complete Honda GX390K1 gasoline

1шт.

See your local Honda engine dealer for engine parts and service

1шт.

2

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

3

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4-6шт.

4

232-4116

NUT,3/8"-16, GC

3шт.

4a

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

5

H437722

ADAPTER

straight, oil drain hose

1шт.

6

H437723

WASHER

flat drain adapter

1шт.

7

214-1408

HOSE CLAMP,11.2mm - 19.8mm

Adj.

1шт.

8

H438057

HOSE

560 mm (22 inch) long, oil drain

1шт.

9

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type

1шт.

10

218-754

CAP,37 Degree, 9/16"-18

Hex

1шт.

11

H437297

SHEAVE

belt drive

1шт.

12

H33290

KEY

square, 1/4 x 2-1/4 inch long

1шт.

13

83-1256

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

set, hex socket headless, 1/4 NC x 3/8 inch, cup point

2шт.
