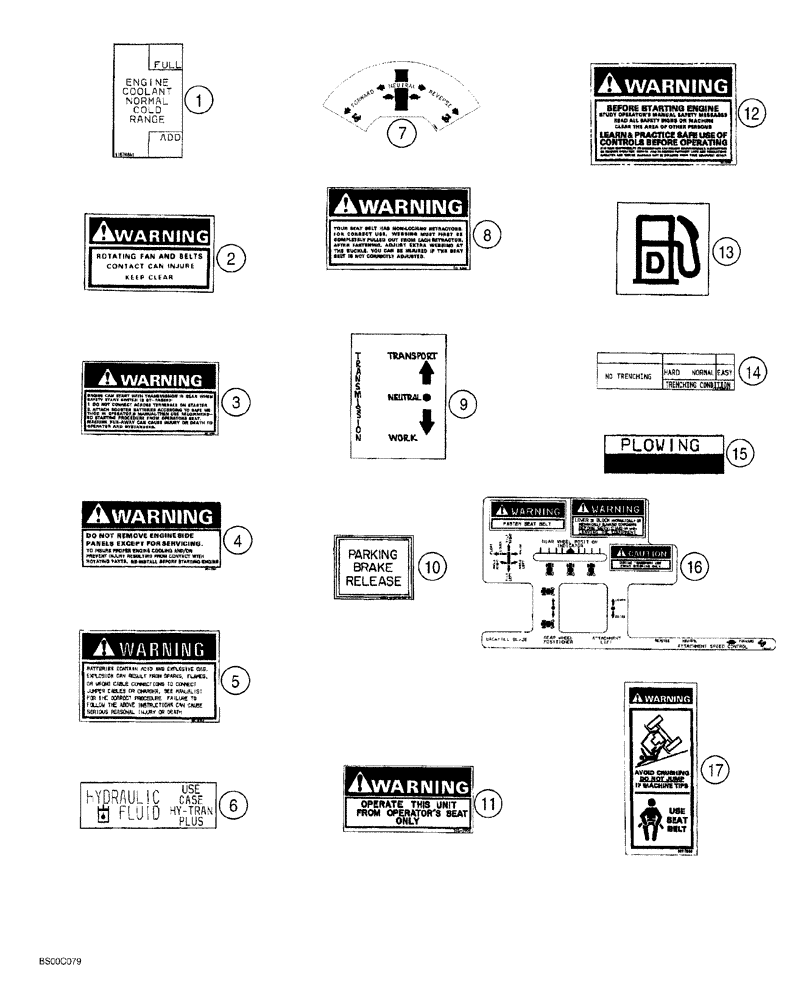

Запчасти Case 560 (09-24) - DECALS - ENGLISH (560 TRENCHER) (09) - CHASSIS/ATTACHMENTS

1

115748A1

DECAL

coolant level

1шт.

2

321-3596

DECAL

warning, rotating fan and belts

2шт.

3

321-3709

DECAL

warning, engine can start with transmission in gear

1шт.

4

321-5701

DECAL

warning, do not remove engine side panels

2шт.

5

321-6714

DECAL

warning, batteries contain acid and explosive gas

1шт.

6

H438541

DECAL

hydraulic fluid, use Case hy-tran plus

1шт.

7

178986A1

DECAL

ground drive controls

1шт.

8

321-6746

DECAL

warning, your seat belt has non-locking retraciors

1шт.

9

178937A1

DECAL

shift pattern

1шт.

10

H418020

DECAL

parking brake release

1шт.

11

321-3905

DECAL

warning, operate this unit from operator's seat only

3шт.

12

321-3705

DECAL

warning, before starting engine

1шт.

13

139879A1

DECAL

diesel fuel

1шт.

14

178936A1

DECAL

trenching chainline speed control pattern

1шт.

15

178943A1

DECAL

plowing, plow speed control

1шт.

16

178944A1

DECAL

side console, attachments, rear wheel positioner and rear wheel position indicator

1шт.

17

321-7030

WARNING DECAL

Do Not Jump / Use Seat Belt

1шт.
