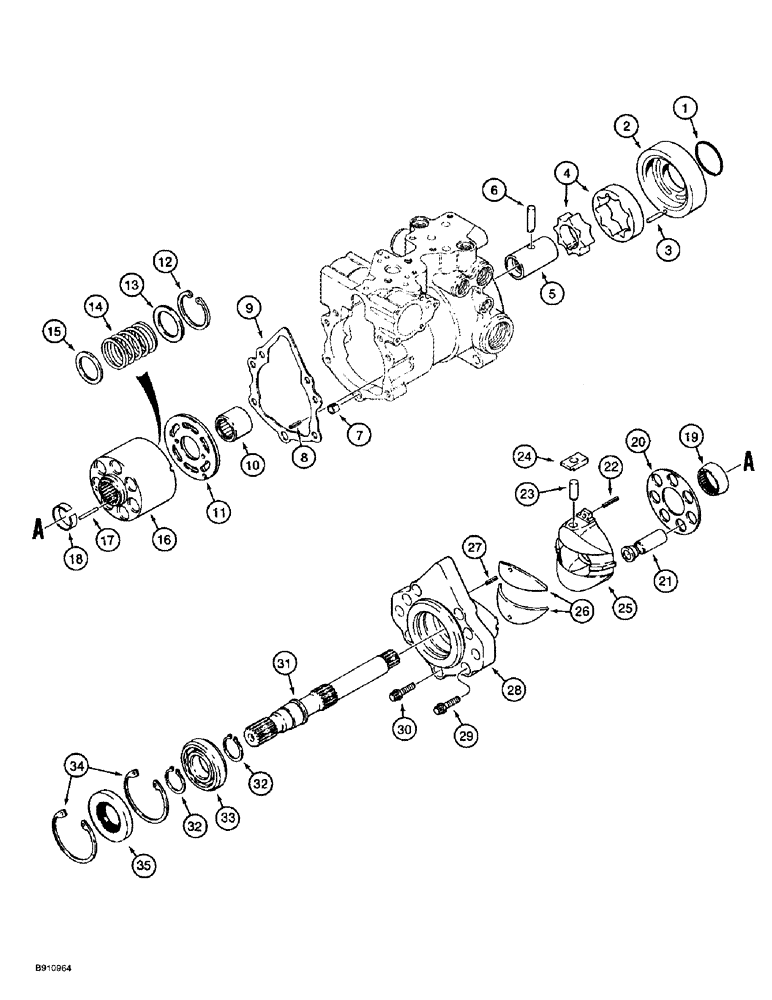

Запчасти Case 560 (6-18) - TANDEM PUMP ASSEMBLY - 104437A1, FRONT DRIVE PUMP, CYLINDER BLOCK AND SHAFT (06) - POWER TRAIN

104437A1

PUMP

ASSEMBLY - tandem, includes all items on Figures 6-14 - 6-24, Includes: Ref. 1 - 35

1шт.

1

H435776

O-RING,44.04mm ID x 51.10mm OD x 7.06mm W

- cover

1шт.

2

N13999

PLATE,3.9985" OD x 1.58" ID

COVER - gerotor

1шт.

3

181680A1

PIN,3/16" OD x 13/16" L

- locating, 3/16 x 13/16 inch, coupling

1шт.

4

N13247

GEAR-SET

GEAR - set, gerotor

1шт.

5

N13234

COUPLING, BREAK AWAY

COUPLING - pump shaft

1шт.

6

N13262

PIN

- coupling

1шт.

7

N13994

SPACER

PIN - roll, special, cover locating

1шт.

8

38-11207

LOCK PIN,4.76mm OD x 11.11mm L, Slotted

Pin, 3/16" x 7/16", Slotted

1шт.

9

H436704

GASKET,0.79mm Thk

- cover, pump housing

1шт.

10

1277297C1

NEEDLE BEARING

- needle, shaft

1шт.

11

N14468

PLATE

- valve, inner, cylinder block

1шт.

115952A1

SET

BLOCK ASSEMBLY - cylinder, Includes: Ref. 12 - 21

1шт.

12

NSS

NOT SOLD SEPARAT

RING - snap, spring

1шт.

13

115950A1

WASHER

WASHER - spring, seat

1шт.

14

115948A1

SPRING

- cylinder block

1шт.

15

115946A1

WASHER

WASHER - spring, outer

1шт.

16

115944A1

CYLINDER BLOCK

BLOCK - cylinder

1шт.

17

110873A1

PIN,2.38mm OD x 33.53mm L

- retaining, Serial Range: guide-shaft

3шт.

18

115943A1

SNAP RING

RING - retaining, guide

1шт.

19

115942A1

GUIDE

- retainer

1шт.

20

NSS

NOT SOLD SEPARAT

RETAINER - piston

1шт.

21

NSS

NOT SOLD SEPARAT

PISTON - cylinder block

7шт.

22

138-130

LOCK PIN,1/4" x 3/4", Slotted

PIN, 1/4" x 3/4", Slotted

1шт.

23

N13254

PIN

- swash plate

1шт.

24

N13224

SLEEVE

RETAINER - pin

1шт.

25

N14469

PLATE

- swash, block

1шт.

26

N14472

BEARING

JOURNAL - bearing

2шт.

27

38-1806

LOCK PIN,1/8" x 3/8", Slotted

Pin, 1/8" x 3/8", Slotted

2шт.

28

H436703

COVER

- front

1шт.

29

223677A1

SCREW,Torx, 7/16"

- torx head, special, 7/16 inch

6шт.

30

223680A1

SPECIAL BOLT,Torx, 3/8"

SCREW - torx head, special, 3/8 inch, special

1шт.

31

N13244

SHAFT

- front, tandem pump

1шт.

32

100-11137

SNAP RING,#137, Ext

Ring, Snap, , shaft cover, bearing #137, Ext

2шт.

33

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

BEARING - ball, front cover

1шт.

34

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

Ring, Snap, , Front cover, brg 2.812", Int, #281

2шт.

35

N14103

SEAL

- shaft

1шт.
