Запчасти Case 560 (6-14) - TANDEM PUMP ASSEMBLY - 104437A1, FRONT DRIVE PUMP, HOUSING AND VALVES (06) - POWER TRAIN

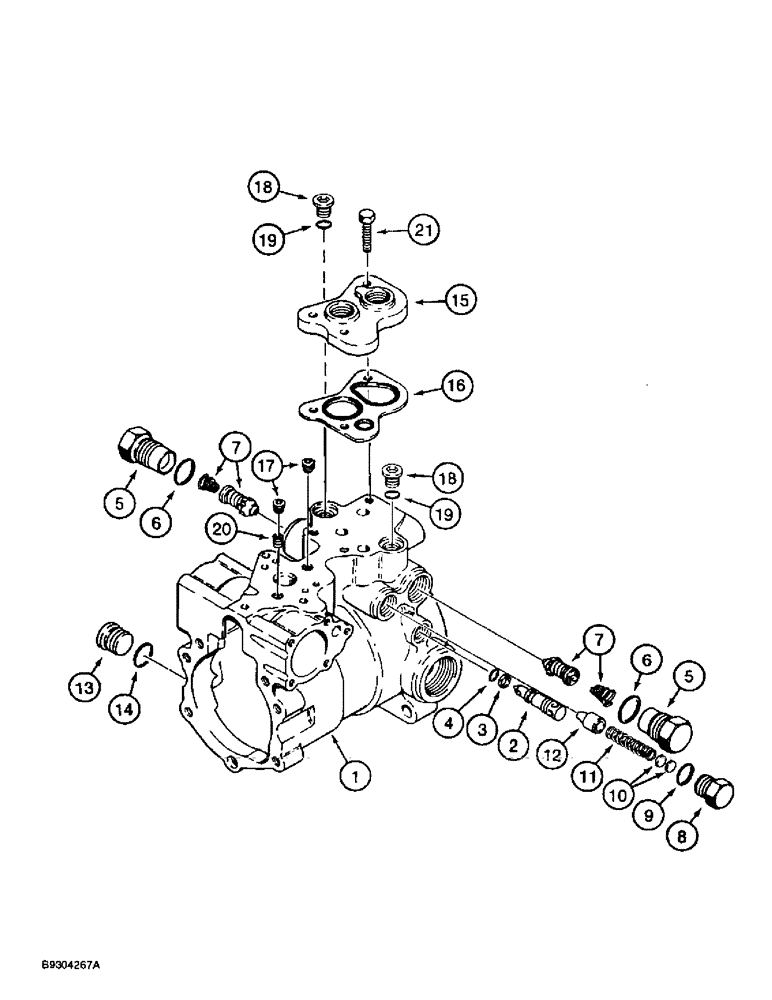

Схема запчастей Case 560 - (6-14) - TANDEM PUMP ASSEMBLY - 104437A1, FRONT DRIVE PUMP, HOUSING AND VALVES (06) - POWER TRAIN
1
6
7
9
18
19
6
20
13
4
17
14
12
18
15
7
3
8
19
11
10
16
5
5
2
21

Артикул

Название

Примечание

Количество

104437A1

PUMP

ASSEMBLY - tandem, includes parts listed on Figures 6-14 - 6-24, Includes: Ref. 1 - 21

1шт.

1

H436703

COVER

- front drive pump

1шт.

ITEM 1 IS NOT H436703. IT IS A HOUSING. NAPO TECH 1/10/00.

1шт.

2

H436099

VALVE

- bypass

1шт.

3

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

- backup, bypass valve

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

H436101

VALVE POPPET

VALVE ASSEMBLY - relief, 5000 psi, "A" and "B" ports, Includes: Ref. 5 - 7

2шт.

5

NSS

NOT SOLD SEPARAT

PLUG - hex, special, Includes: Ref. 6

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Boss end

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE - relief, pump

1шт.

8

N13266

PLUG

- hex, special

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

10

H407767

KIT

- shim, relief valve

1шт.

11

V38370

SPRING

- relief valve

1шт.

12

V38371

VALVE

POPPET - relief valve

1шт.

13

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 14 Hex Soc, 1 1/16"-12 ORB

1шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

15

101460A1

ADAPTER

- filter

1шт.

16

101461A1

SEAL

PLATE - seal, adapter

1шт.

17

F23137

PLUG

- pipe, special

2шт.

18

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 19 Hex Soc, 9/16"-18 ORB

2шт.

20

H435774

PLUG

- orifice

1шт.

21

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

3шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 24
