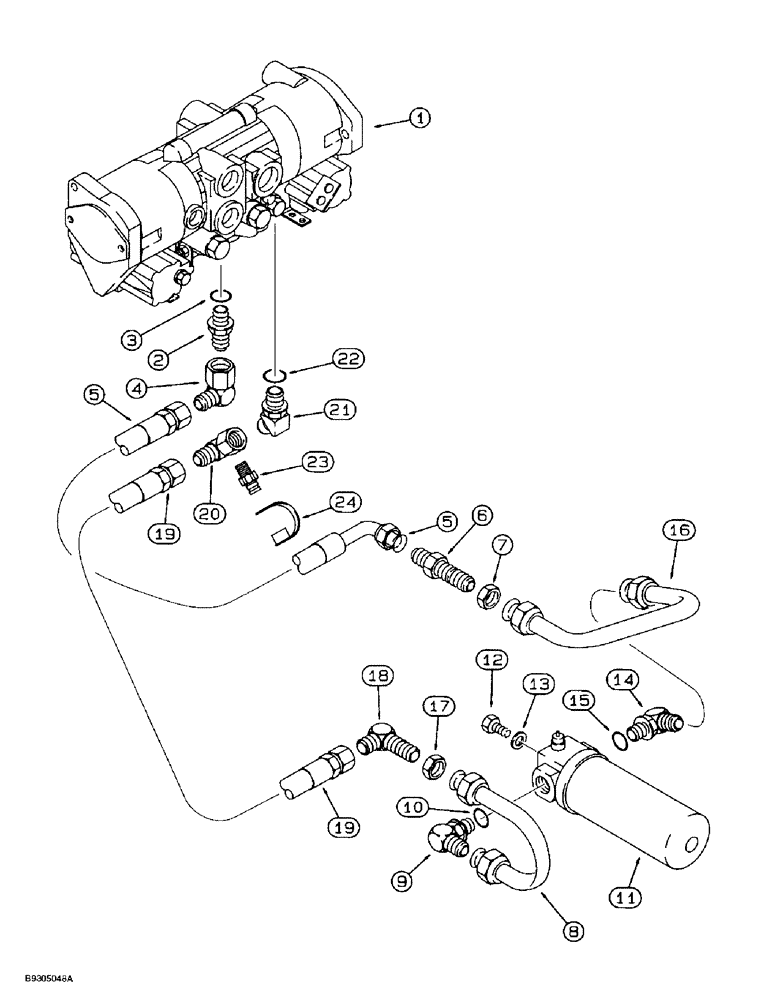

Запчасти Case 560 (6-10) - CHARGE FILTER HYDRAULIC CIRCUIT (06) - POWER TRAIN

1

104437A1

PUMP

ASSEMBLY - tandem, parts list Figure 6-14 - 6-24, see Figure 6-6 for mounting

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel

1шт.

5

107757A1

HOSE

- 560 mm (22 inch) long, tandem pump to charge filter tube

1шт.

6

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

ADAPTER - straight, 7/8-14 inch flare x bulkhead flare

1шт.

7

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

1шт.

8

104167A1

TUBE,15.88 mm OD, 75 mm Length

- charge filter "IN"

1шт.

9

218-5130

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

90º, 7/8-14 flare x 1-5/16"-12 adj O-ring boss, Incl. Ref 10

1шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

11

D125507

FILTER

ASSEMBLY - hydraulic oil, charge

1шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

13

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

14

218-5130

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

90º, 7/8-14 flare x 1-5/16"-12 adj O-ring boss, Incl. Ref 15

1шт.

15

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

16

104166A1

TUBE,15.88 mm OD, 120 mm Length

- charge filter "OUT"

1шт.

17

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

1шт.

18

218-695

ELBOW,90 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

- 90 degree, 7/8-14 inch flare x bulkhead flare

1шт.

19

107758A1

HOSE

- 580 mm (22-7/8 inch) long, charge filter to tandem pump

1шт.

20

109952A1

ELBOW

- 90 degree, special

1шт.

21

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

23

H434164

COUPLING

COUPLER - quick check, diagnostic

1шт.

24

H434163

DUST CAP

CAP - dust, diagnostic coupler

1шт.
