Запчасти Case 560 (6-08) - GROUND DRIVE HYDRAULIC CIRCUIT, RESERVOIR TO PUMP AND PUMP TO OIL COOLER TEE (06) - POWER TRAIN

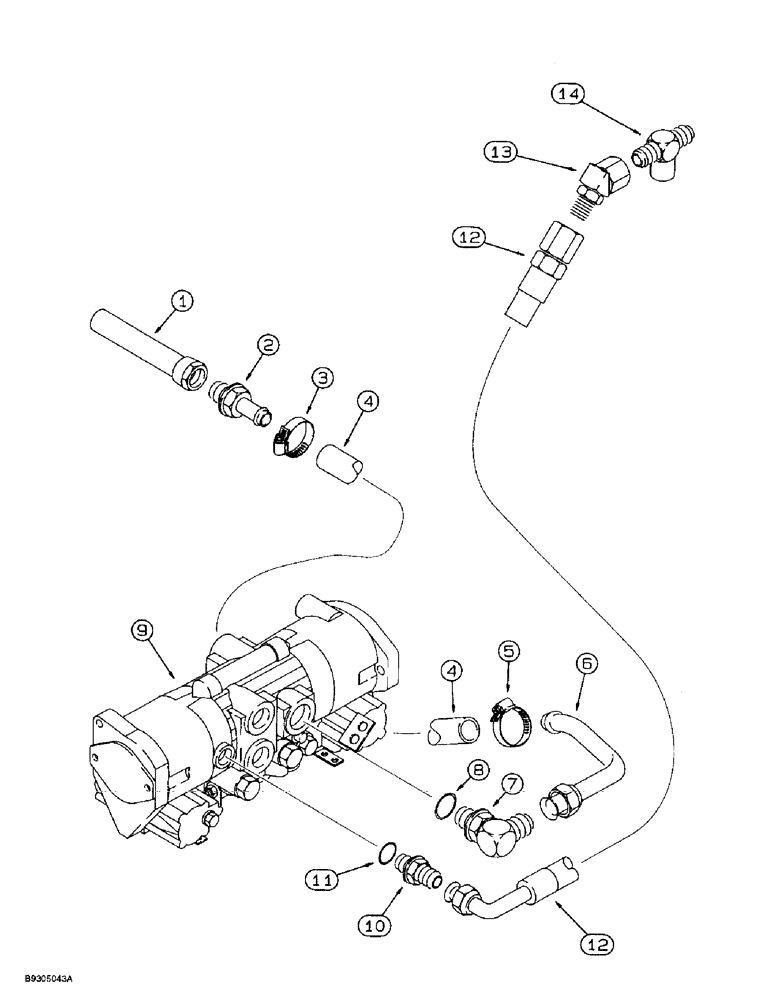

Схема запчастей Case 560 - (6-08) - GROUND DRIVE HYDRAULIC CIRCUIT, RESERVOIR TO PUMP AND PUMP TO OIL COOLER TEE (06) - POWER TRAIN
9
13
12
8
4
3
14
10
2
6
12
4
1
11
7
5

Артикул

Название

Примечание

Количество

1

H151399

FILTER STRAINER

SCREEN - filter, see Figure 8-2 for hydraulic oil reservoir

1шт.

2

217-161

FITTING,1-1/4" Hose Barb x 1" Male NPTF

- stem, straight, 1-1/4 barb x 1 inch PT

1шт.

3

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

1шт.

4

113609A1

HYDRAULIC HOSE,31.75 mm ID x 240.00 mm

Suction, Reservoir to suction tube 31.75 mm ID x 240.00 mm

1шт.

5

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

1шт.

6

107690A1

TUBE,31.8 mm OD, 234, 241 mm Length

- suction, reservoir suction hose to tandem pump

1шт.

7

218-5112

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

- 90 degree, 1-5/8-12 inch flare x adj O-ring boss, Includes: Ref. 8

1шт.

8

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

9

104437A1

PUMP

ASSEMBLY - tandem, parts list Figures 6-14 - 6-24, see Figure 6-6 for mounting

1шт.

10

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, 1-5/16-12 flare x 1-1/16-12 inch O-ring boss, Incl. Ref. 11

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

12

107755A1

HOSE

- 740 mm (29-1/8 inch) long, tandem pump to oil cooler, see Figure 8-4 for complete oil cooler hydraulic circuit

1шт.

13

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- 45 degree, 1-5/16-12 inch flare x swivel

1шт.

14

218-582

TEE,1 5/16"-12, 37 Degree x 3/4"-14, NPTF Fem Br

- 3/4 female PT branch x 1-5/16-12 inch flare x flare

1шт.

Выбрано товаров: 14
