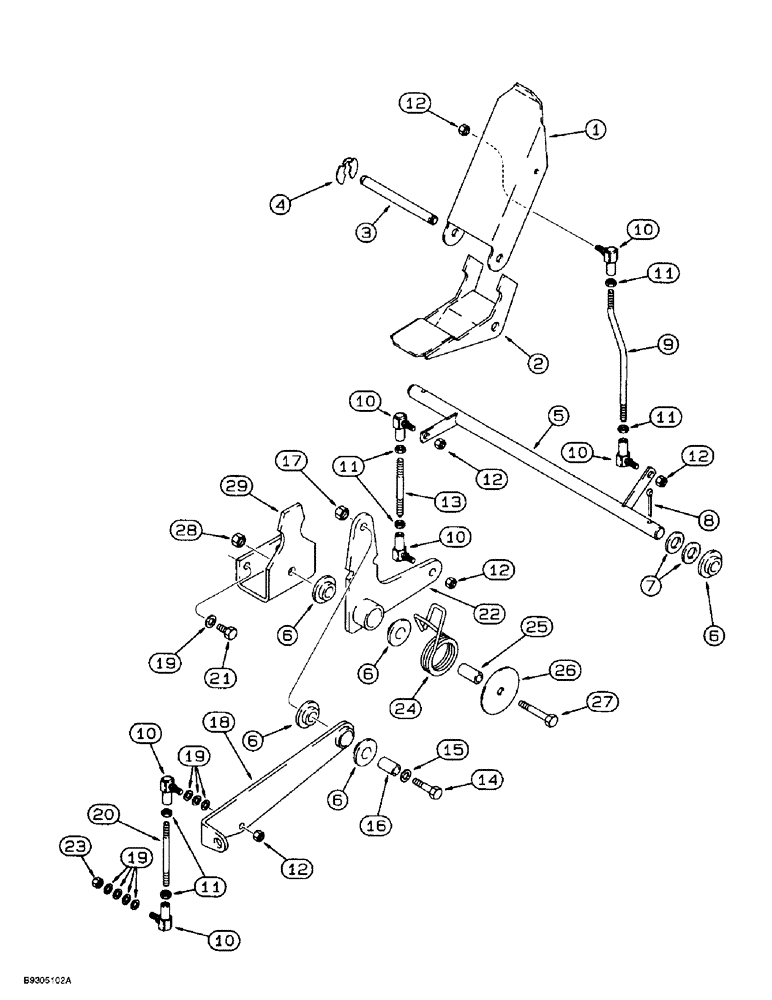

Запчасти Case 560 (6-04) - GROUND DRIVE CONTROLS, PEDALS (06) - POWER TRAIN

1

107152A1

PEDAL

- forward ground drive control

1шт.

2

107153A1

PEDAL

- heel, reverse ground drive control

1шт.

3

107156A1

PIN

- pedal

1шт.

4

D143415

SNAP RING,0.50” ID, Klipring

RING - retaining, pedal pin

2шт.

5

106407A1

SHAFT

- control, ground drive

1шт.

6

D128616

BUSHING

- plastic

6шт.

7

495-11081

WASHER,3/4", SAE

4шт.

8

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

9

107157A1

ROD

- pedal control

1шт.

10

D38296

JOINT

- ball, 3/8 inch NF, female

6шт.

11

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

6шт.

12

232-4616

LOCK NUT,3/8"-24, GC

NUT, LOCK, 3/8"-24, GC

5шт.

13

H436588

ROD

- linkage, stablizer

1шт.

14

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

15

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

1шт.

16

H439075

SPACER

- bellcrank pivot

1шт.

17

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

18

106412A1

LINK

- cable mounting

1шт.

19

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

9шт.

20

106414A1

ROD

- linkage

1шт.

21

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

22

106409A1

PIVOT

- bellcrank

1шт.

23

25-176

NUT,3/8"-24, G5, Hvy

- heavy hex, 3/8 inch NF

1шт.

24

H436303

SPRING

- centering, bellcrank

1шт.

25

H435694

SPACER

- 19 x 22 x 36.5 mm, bellcrank pivot

1шт.

26

H436215

WASHER

- flat, special, 13.4 x 80 x 3.4 mm

1шт.

27

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

1шт.

28

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

1шт.

29

106411A1

SUPPORT

BRACKET - bellcrank mounting

1шт.
