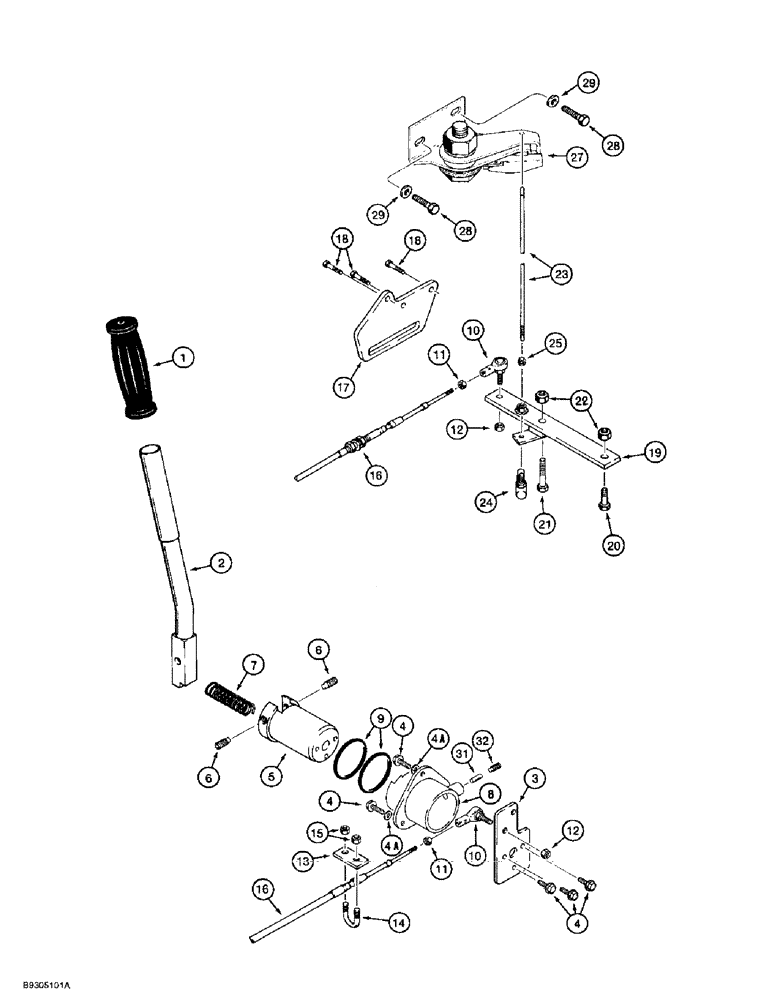

Запчасти Case 560 (6-02) - GROUND DRIVE CONTROLS, HAND CONTROLS (06) - POWER TRAIN

1

D128268

HANDLE

GRIP - control lever, black

1шт.

2

H674568

HANDLE

LEVER - ground drive control

1шт.

3

H438120

LARGE PLATE

PLATE - cable drive

1шт.

4

H438153

SCREW,Hex Washer, #10 - 24 x 1/2"

- hex washer head, No. 10 NC x 1/2 inch

6шт.

4a

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch

3шт.

5

H438116

SHAFT

- control pivot

1шт.

6

H438152

SET SCREW

SCREW - set, special

2шт.

7

H438122

SPRING

- locking

1шт.

8

H674569

ANCHOR

MOUNT - control handle

1шт.

9

S5625

O-RING,1.864" ID x 2.004" OD x 0.07"

- control handle mount

2шт.

10

H358374

PIVOT,1/4" - 28 x 1-1/3"

JOINT - ball, female, 1/4 inch NF, cable end

2шт.

11

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam, 1/4 inch NF

2шт.

12

131-1245

LOCK NUT,1/4"-28, GC

NUT - hex, self-locking, 1/4 inch NF

2шт.

13

H373779

LARGE PLATE

SPACER - cable

1шт.

14

H166421

HARDWARE

U-BOLT - 1/4 inch NC, cable retaining

1шт.

15

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

2шт.

16

102691A1

BOWDEN CONTROL

CABLE - ground drive control

1шт.

17

H437548

STOP

- tandem pump lever

1шт.

18

326-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 8

3шт.

19

H674229

LEVER

- tandem pump control

1шт.

20

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

21

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

22

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

23

H439103

ROD

- control lever to neutral start switch

1шт.

24

L12437

BALL JOINT,#10 - 32 x 7/8"

JOINT - ball, at control lever rod

1шт.

25

225-14210

NUT,#10-32

1шт.

26

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

27

106402A1

SWITCH

ASSEMBLY - neutral start, ground drive, parts list Figure 4-18

1шт.

28

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

29

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

31

H438119

PAD

PLUG - friction, control handle mount

1шт.

32

H438151

SET SCREW

SCREW - set, special

1шт.
