Запчасти Case 560 (4-20) - NEUTRAL START SWITCH ASSEMBLY - H673443, ATTACHMENT SPEED CONTROL (04) - ELECTRICAL SYSTEMS

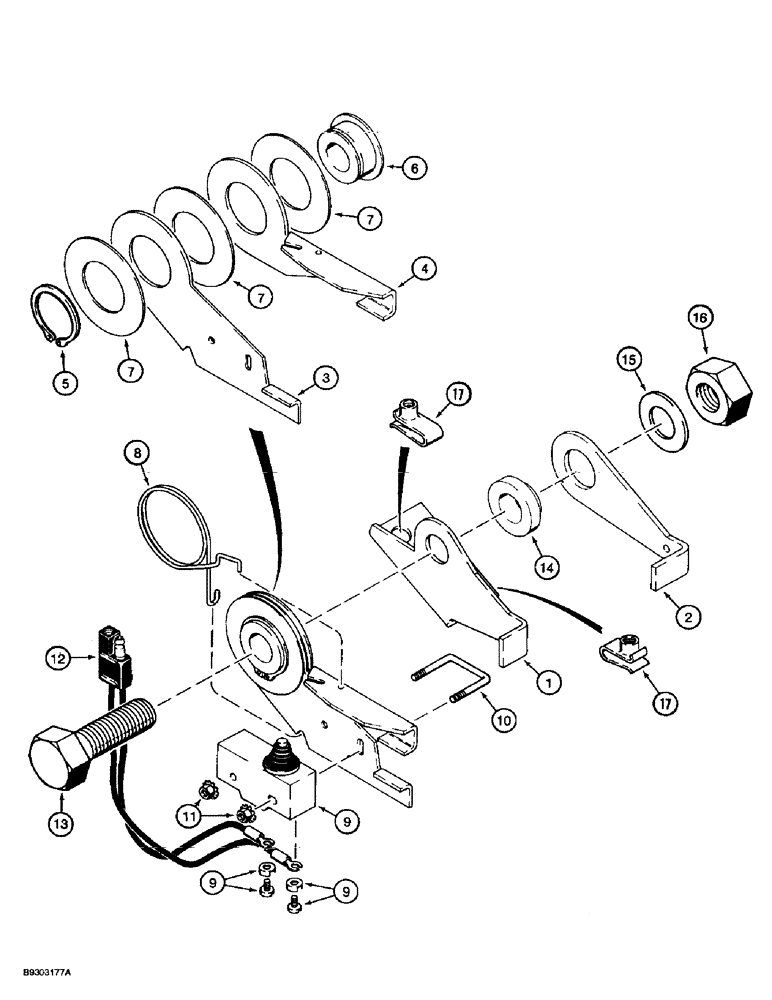

Схема запчастей Case 560 - (4-20) - NEUTRAL START SWITCH ASSEMBLY - H673443, ATTACHMENT SPEED CONTROL (04) - ELECTRICAL SYSTEMS
7
14
9
11
13
5
2
17
9
8
7
6
15
3
4
12
1
9
7
16
17
10

Артикул

Название

Примечание

Количество

H673443

SWITCH

ASSEMBLY - neutral start, attachment speed control, Includes: Ref. 1 - 17

1шт.

1

H436228

PLATE

BRACKET - switch, Serial Range: mounting-console

1шт.

2

H436229

LARGE PLATE

PLATE - actuator

1шт.

H673263

MOUNTING PARTS

MOUNT ASSEMBLY - switch, Includes: Ref. 3 - 7

1шт.

3

131052A1

PLATE

- switch mounting

1шт.

4

131051A1

CONTACT PLATE

PLATE - switch contact

1шт.

5

F62020

SNAP RING,#125, Ext

Ring, Snap, , hub #125, Ext

1шт.

6

131050A1

HUB

- switch contact plate

1шт.

7

H257915

SHIM,0.813mm Thk

(.031"), Switch hub 0.813mm Thk

3шт.

8

H436231

SPRING

- switch contact plate

1шт.

9

H435820

SWITCH

- neutral start, includes terminal hardware

1шт.

10

H435814

U-BOLT

- switch mounting

1шт.

11

193-1003

NUT,Keps, w/LW,#6-32

- hex, with external tooth lock washer, No. 6 NC

2шт.

12

H436183

CONNECTOR, ELEC

WIRE - connector, Serial Range: switch-harness

1шт.

13

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

1шт.

14

H435881

HUB

SPACER - actuator plate

1шт.

15

495-11081

WASHER,3/4", SAE

1шт.

16

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

1шт.

17

H346650

NUT

- U-type, 5/16 inch NC

2шт.

Выбрано товаров: 19
