Запчасти Case 560 (4-16) - REMOTE FUEL SHUT-OFF SWITCH ELECTRICAL CIRCUIT, USED ON MODELS WITH BACKHOE (04) - ELECTRICAL SYSTEMS

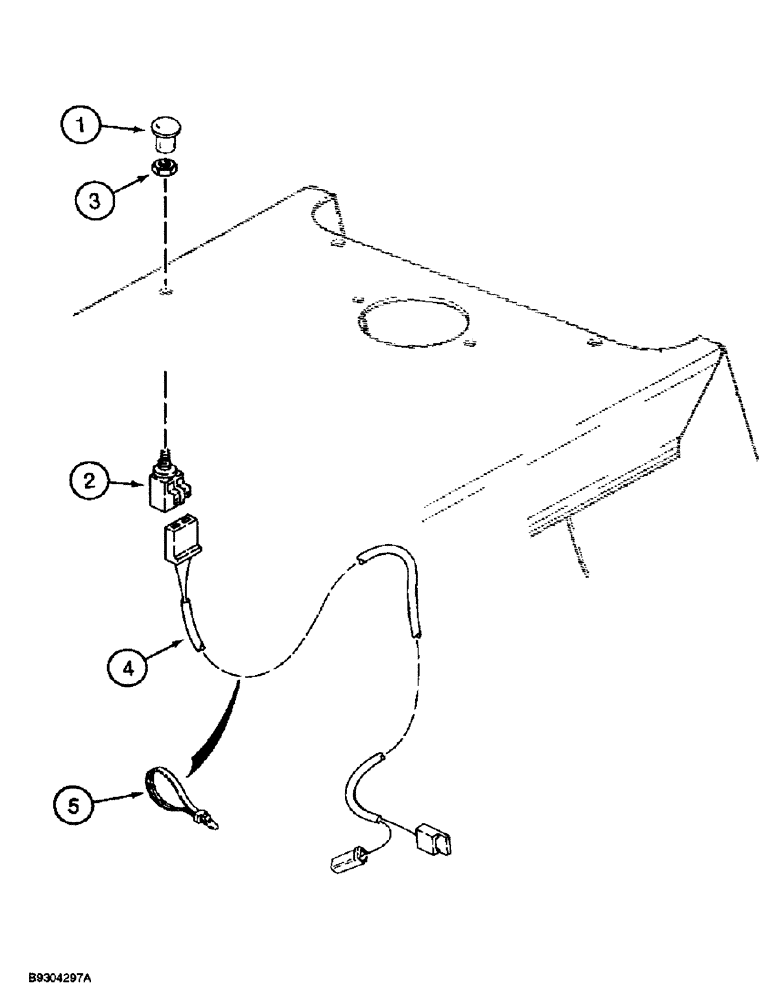

Схема запчастей Case 560 - (4-16) - REMOTE FUEL SHUT-OFF SWITCH ELECTRICAL CIRCUIT, USED ON MODELS WITH BACKHOE (04) - ELECTRICAL SYSTEMS
5
4
3
1
2

Артикул

Название

Примечание

Количество

1

D91273

KNOB

- remote fuel shutoff switch

1шт.

D74330

SWITCH

ASSEMBLY - remote fuel shutoff, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

SWITCH - remote fuel shutoff

1шт.

3

N7557

NUT

- hex, special, 3/8 inch NF

1шт.

4

H434267

HARNESS

- remote fuel shutoff switch, plug into main harness wire No. 13 (orange color), located between connectors to starter and starter relay

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon, install Ref. 4 harness along left-hand side of radiator and use to tie harness to overflow hose

2шт.

Выбрано товаров: 6
