Запчасти Case 560 (4-13A) - INSTRUMENT CLUSTER ASSEMBLY - 110981A2 (04) - ELECTRICAL SYSTEMS

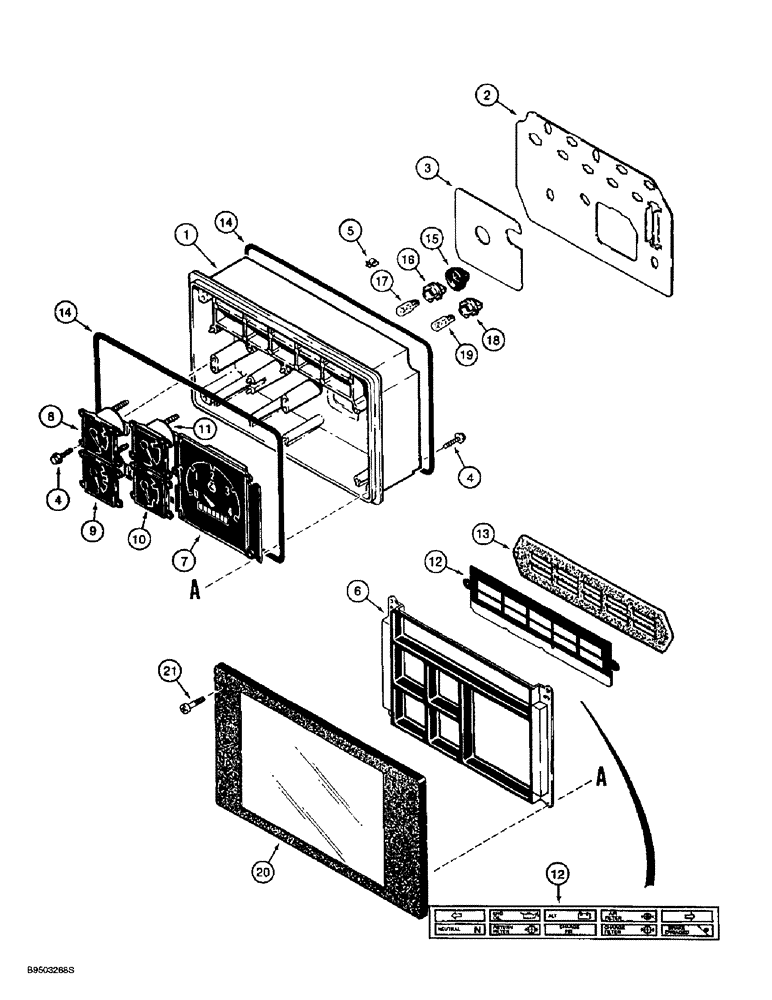

Схема запчастей Case 560 - (4-13A) - INSTRUMENT CLUSTER ASSEMBLY - 110981A2 (04) - ELECTRICAL SYSTEMS
20
17
11
15
10
2
14
13
12
14
12
4
4
3
21
9
5
16
1
6
8
18
7
19

Артикул

Название

Примечание

Количество

110981A2

CLUSTER

ASSEMBLY - instrument, 12 volt, Includes: Ref. 1 - 20

1шт.

A191114

HOUSING

ASSEMBLY - instrument cluster, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - instrument cluster

1шт.

2

NSS

NOT SOLD SEPARAT

CIRCUIT - printed, instrument cluster

1шт.

3

NSS

NOT SOLD SEPARAT

GASKET - housing

1шт.

4

NSS

NOT SOLD SEPARAT

SCREW - special

12шт.

5

NSS

NOT SOLD SEPARAT

CLIP - gauges

12шт.

6

A45007

LENS

COVER - instrument cluster

1шт.

7

113088A1

TACHOMETER

GAUGE - tachometer, includes hourmeter

1шт.

8

N13542

GAUGE

- water temperature

1шт.

9

A47688

ELECTRICAL GAUGE

GAUGE - fuel level

1шт.

10

N6807

ELECTRICAL GAUGE

GAUGE - voltmeter

1шт.

11

A187987

GAUGE

- hydraulic oil temperature

1шт.

12

141760A1

LENS

- identification, warning lamps

1шт.

13

D71342

GASKET,3.05mm Thk

- lens

1шт.

14

D71343

GASKET,4.45mm Thk x 249.68mm ID

- instrument cluster

2шт.

15

D71344

COVER

BOOT - rubber, lamp socket

3шт.

16

A47125

PEDESTAL

SOCKET - lamp, green

3шт.

17

W10478

LAMP

BULB - lamp, No. 194

3шт.

18

A47123

SOCKET/RECEPTACLE

SOCKET - lamp

9шт.

19

D71346

TAIL LAMP,12V

BULB - lamp, No. 168

9шт.

20

N14225

SHIELD

- instrument cluster

1шт.

21

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips, No. 10 NC x 1/2 inch

4шт.

Выбрано товаров: 23
