Запчасти Case 560 (4-10) - MAIN WIRING HARNESS AND CONNECTIONS, WITHOUT SEAT INTERLOCK SYSTEM (04) - ELECTRICAL SYSTEMS

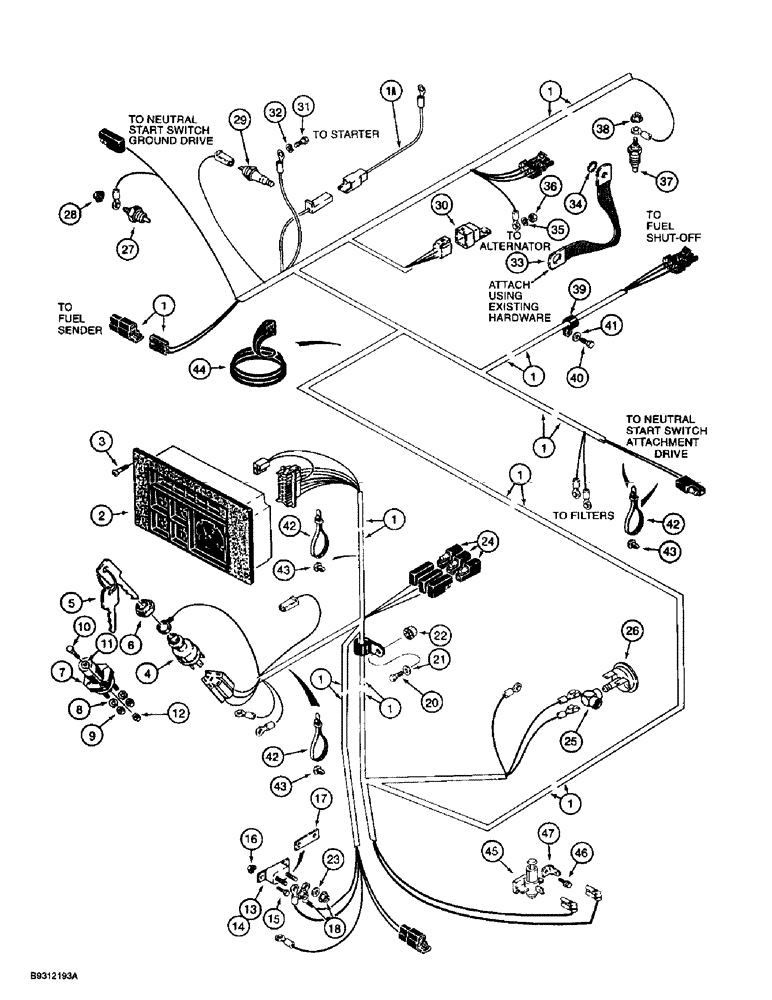

Схема запчастей Case 560 - (4-10) - MAIN WIRING HARNESS AND CONNECTIONS, WITHOUT SEAT INTERLOCK SYSTEM (04) - ELECTRICAL SYSTEMS
45
46
39
34
1
12
37
6
14
42
22
41
2
20
1
25
21
47
1
40
1
1
4
10
36
35
42
43
7
17
28
24
18
31
15
5
13
27
30
1a
43
9
43
1
32
33
1
11
38
1
23
26
42
16
44
1
3
8
29

Артикул

Название

Примечание

Количество

1

108364A2

HARNESS

- wiring, main, replaces 108364A1

1шт.

1a

139368A1

ELECTRICAL WIRE

WIRE - jumper, starter motor

1шт.

2

110981A1

CLUSTER

ASSEMBLY - instrument, 12 volt, parts list Figure 4-13

1шт.

3

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips, No. 10 NC x 1/2 inch

4шт.

D134737

IGNITION SWITCH

SWITCH ASSEMBLY - ignition, includes keys, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

SWITCH - ignition, without keys

1шт.

5

A77313

SET OF 2 KEYS

KEY - set of two; Metal Without Padding

1шт.

6

A77314

NUT

- hex, special, ignition switch mounting

1шт.

H35048

IGNITION SWITCH

SWITCH ASSEMBLY - glow plug, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

SWITCH - on/off, glow plug

1шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

2шт.

10

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

2шт.

11

H426767

WASHER

- flat, 9/32 x 5/8 x 3/64 inch, hardened

2шт.

12

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

2шт.

13

L104329

BREAKER

- circuit, 15 amp

1шт.

14

A59704

BREAKER

- circuit, 80 amperes

1шт.

15

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

- machine, pan Phillips, No. 8 NC x 1/2 inch

4шт.

16

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, with external tooth lock washer, No. 8 NC

4шт.

17

1301157C1

BAR

- breaker bus

1шт.

18

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

4шт.

19

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type 1", Insul, 3/8" Bolt

1шт.

20

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

21

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.

22

231-5146

FLANGE NUT,3/8"-16

1шт.

23

495-21019

WASHER,#8

1шт.

24

L71879

DIODE ELEMENT,400V, 3A

DIODE - harness, alternator protecting

3шт.

25

217-1050

90 ELBOW,1/8" - 27 NPTF Female

- 90 degree, 1/8 inch female PT x female PT

1шт.

26

1983233C1

RESTRICTION SWITCH

SWITCH - restriction, air cleaner

1шт.

27

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER - hydraulic oil temperature

1шт.

28

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

29

1959159C1

PRESSURE SWITCH

SWITCH - engine oil pressure

1шт.

30

1983394C1

RELAY

- electrical, starter

1шт.

31

614-8014

BOLT,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 14 mm

1шт.

32

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

33

D127018

STRAP

- ground

1шт.

34

493-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

1шт.

35

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

36

825-1406

NUT,M6, Cl 8

1шт.

37

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER - water temperature

1шт.

38

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

39

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

P-type 1/2", Insul, 1/2" Bolt

1шт.

40

514-841

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

41

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

1шт.

42

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

43

H438377

BUTTON

MOUNT - retaining strap

3шт.

44

D49094

LINING

TRIM - edge, 268 (10-1/2 inch) long, cut from F42827 bulk trim

1шт.

45

N8343

SWITCH

- parking brake indicator, see Figure 7-2 for parking brake

1шт.

46

281-34414

SELF-TAP SCREW,Hex Wash Hd, #8 x 7/8"

SCREW - self-tapping, hex washer head, No. 8 NC x 7/8 inch

1шт.

47

H439264

PLATE, LOCKING

TAB - terminal

1шт.

F42827

TRIM,2946.4mm L

TRIM - edgge, bulk, 2946 mm (116 inch) long

1шт.

Выбрано товаров: 51
