Запчасти Case 560 (4-08) - BATTERY, MOUNTING AND CABLES (04) - ELECTRICAL SYSTEMS

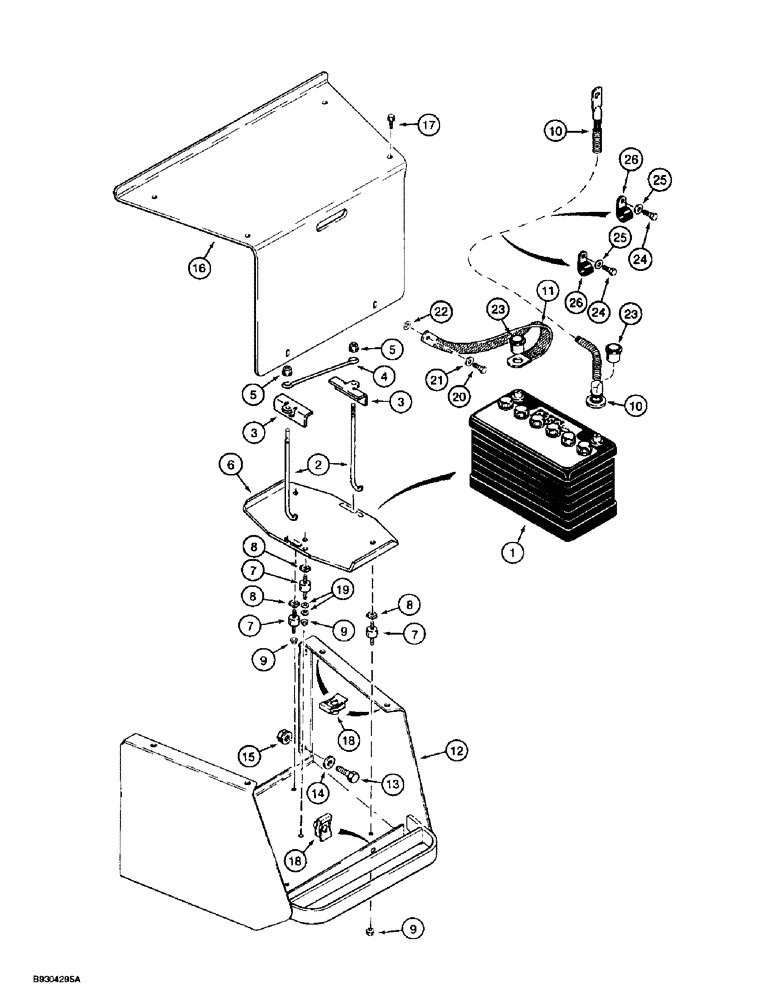

Схема запчастей Case 560 - (4-08) - BATTERY, MOUNTING AND CABLES (04) - ELECTRICAL SYSTEMS
19
7
5
9
22
1
13
7
14
10
21
15
3
26
16
11
10
23
6
8
16
17
5
2
7
12
9
24
8
26
18
26
3
23
25
9
20
8
25
4

Артикул

Название

Примечание

Количество

1

BMF28S

BATTERY, DRY

BATTERY - dry charged, 12 volt, service replacement

1шт.

2

H436311

BOLT

- J-type, special, battery hold-down

2шт.

3

D125079

BRACKET

- battery hold-down

2шт.

4

D135073

BRACKET

ROD - battery hold-down

1шт.

5

231-5146

FLANGE NUT,3/8"-16

2шт.

6

103912A1

TRAY

- battery

1шт.

7

H359216

MOUNTING PARTS

INSULATOR - battery tray

3шт.

8

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

- square, 5/16 inch NC

3шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

10

127381A1

CABLE

- battery, positive

1шт.

11

D140369

GROUND STRAP,260mm L

STRAP - battery, negative ground

1шт.

12

103915A1

STEP

BOX - battery and oil filter, includes step

1шт.

13

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

14

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

15

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

16

103914A1

COVER

- battery and oil filter box

1шт.

17

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

18

H346650

NUT

- U-type, 5/16 inch NC

6шт.

19

H426775

WASHER

- flat, special, hardened

2шт.

20

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

21

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.

22

493-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

1шт.

23

D126409

NUT,Hex, M14, 20mm OD, 3/8" - 16

- hex, special, 3/8 inch NC

2шт.

24

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

25

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

26

D88052

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

- P-type, 1 inch ID, positive battery cable

2шт.

Выбрано товаров: 26
