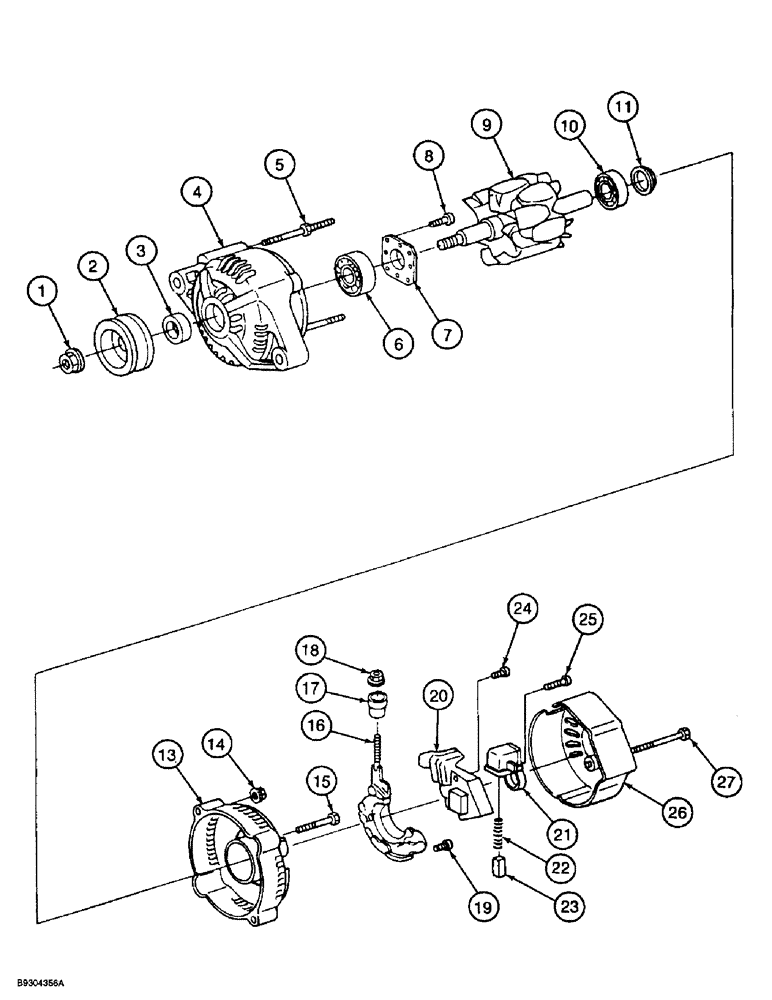

Запчасти Case 560 (4-07A) - ALTERNATOR ASSEMBLY - 370083A1, KUBOTA V2203IDI ENGINE, P.I.N. JAF0295741 AND AFTER (04) - ELECTRICAL SYSTEMS

370083A1

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, see Figure 4-3A for mounting parts, Includes: Ref. 1 - 28

1шт.

A187873

ALTERNATOR,12V, 65A

Alternator, 14V, 65 Amp

1шт.

AR187873

REMAN-ALTERNATOR

65A 12V

1шт.

AC187873

CORE-ALTERNATOR

Return Number

1шт.

A187873GV

ALTERNATOR

Value, 14V, 65A

1шт.

1

129413A1

FLANGE NUT

NUT - hex flange, special

1шт.

2

129634A1

PULLEY

PULLEY - alternator

1шт.

3

129414A1

COLLAR

COLLAR - alternator frame

1шт.

4

370086A1

FRAME

FRAME - drive end

1шт.

5

129424A1

BOLT

STUD - with nut

2шт.

6

129425A1

BEARING, BALL

BEARING - ball

1шт.

7

129420A1

IDENTITY PLATE

PLATE - retainer

1шт.

8

129422A1

SCREW

BOLT - round head, special

4шт.

9

370084A1

ROTOR

ROTOR - alternator

1шт.

10

370085A1

BALL BEARING

BEARING - ball

1шт.

11

129416A1

BEARING COVER

COVER - alternator bearing

1шт.

13

129641A1

FUNNEL

FRAME FRAME - end

1шт.

14

129457A1

FLANGE NUT

NUT - hex flange, special

2шт.

15

129458A1

BOLT

BOLT - hex flange, special

2шт.

16

129643A1

RECTIFIER

RECTIFIER - alternator

1шт.

17

129644A1

BUSHING

BUSHING - insulation

1шт.

18

129459A1

FLANGE NUT

NUT - hex flange, special

1шт.

19

129454A1

BOLT

BOLT - round head, special, rectifier

6шт.

20

129647A1

VALVE

REGULATOR - voltage

1шт.

21

129646A1

HOLDER

HOLDER - brush

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING - brush

2шт.

23

NSS

NOT SOLD SEPARAT

BRUSH - voltage regulator

2шт.

24

129453A1

BOLT

BOLT - round head, special

2шт.

25

129455A1

BOLT

BOLT - round head, special

1шт.

26

129642A1

COVER

COVER - end

1шт.

27

129456A1

BOLT

BOLT - hex, special

3шт.

28

129649A1

CLAMP

CLAMP - cord, not shown

1шт.
