(4-03A) - ALTERNATOR MOUNTING, KUBOTA V2203IDI ENGINE, P.I.N. JAF0295741 AND AFTER

Запчасти Case 560 (4-03A) - ALTERNATOR MOUNTING, KUBOTA V2203IDI ENGINE, P.I.N. JAF0295741 AND AFTER (04) - ELECTRICAL SYSTEMS

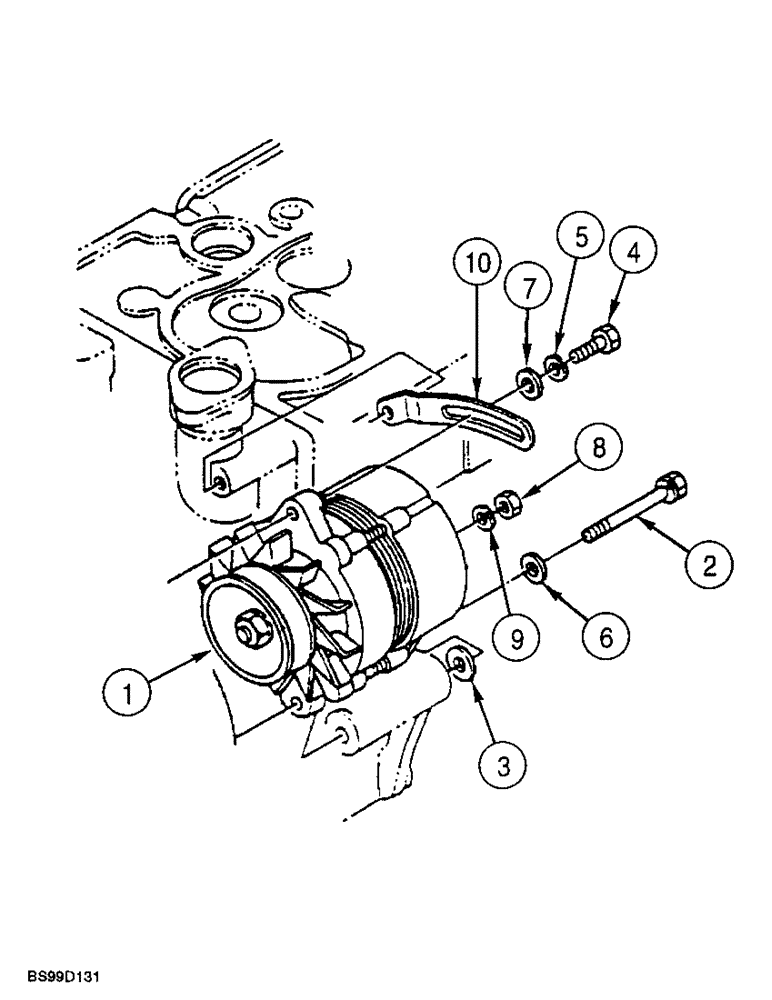

Схема запчастей Case 560 - (4-03A) - ALTERNATOR MOUNTING, KUBOTA V2203IDI ENGINE, P.I.N. JAF0295741 AND AFTER (04) - ELECTRICAL SYSTEMS
4
5
6
8
7
1
9
10
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

370083A1

ALTERNATOR

ASSEMBLY - engine, parts list Figure 4-7A

1шт.

2

1959617C2

BOLT

BOLT - hex, special

1шт.

3

127106A1

WASHER

- flat

1шт.

4

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 35 mm

1шт.

5

1959162C1

LOCK WASHER

- lock

1шт.

6

126373A1

SPRING WASHER

WASHER - flat

1шт.

7

126142A1

WASHER

- flat

1шт.

8

1959205C1

NUT

- hex, special

1шт.

9

1959206C1

SPRING WASHER

- lock

1шт.

10

127108A1

LINK

BRACE - alternator

1шт.
