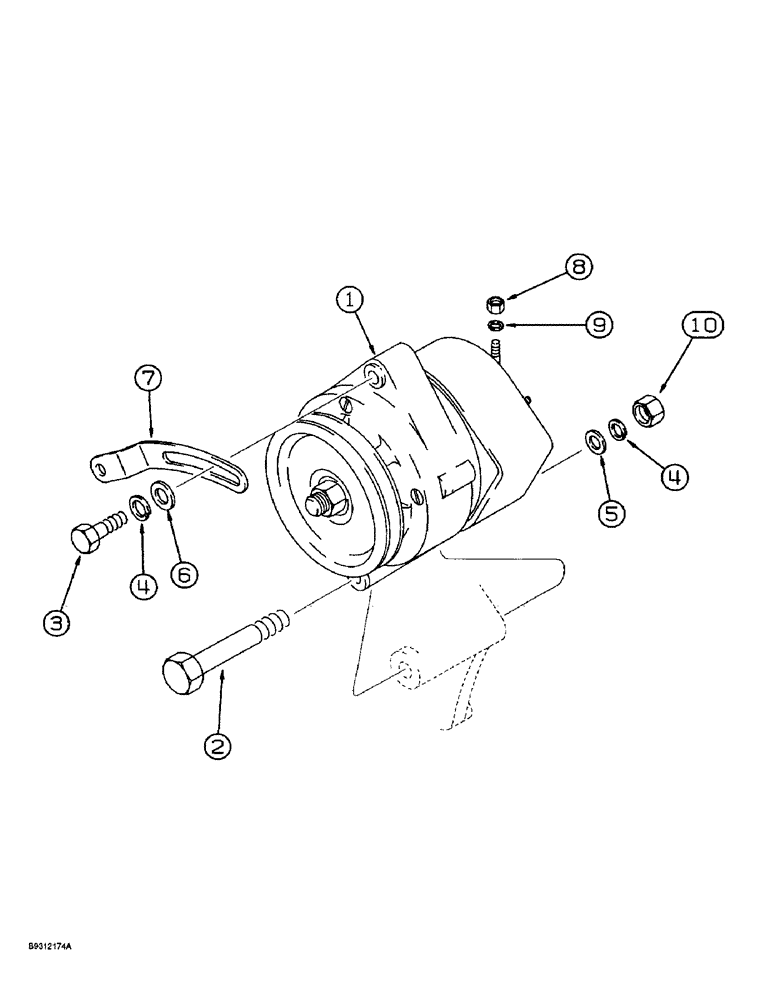

Запчасти Case 560 (4-02) - ALTERNATOR MOUNTING, KUBOTA V2203 ENGINE, PRIOR TO P.I.N. JAF0295741 (04) - ELECTRICAL SYSTEMS

1

127104A1

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, parts list Figure 4-6

1шт.

87297230

REMAN-ALTERNATOR

REMANUFACTURED Bosch 12v 65a ALTERNATOR - NA Only

1шт.

87297231

CORE-ALTERNATOR

Return Number, Bosch 12 v 65a ALTERNATOR - NA Only

1шт.

2

814-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

BOLT, Hex, M8 x 100, 8.8

1шт.

3

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

BOLT - hex, full threads, 8 - 1.25 x 25 mm

1шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

WASHER - flat, 11/32 x 11/16 x 1/16 inch, hardened

1шт.

6

496-41034

WASHER,.344" x 1" x .098", HDN

WASHER, .344" x 1" x .098", HDN

1шт.

7

127108A1

LINK

BRACE - alternator

1шт.

8

825-1406

NUT,M6, Cl 8

NUT, M6, Cl 8

1шт.

9

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

NUT - hex, 8 mm - 1.25, class 10

1шт.
