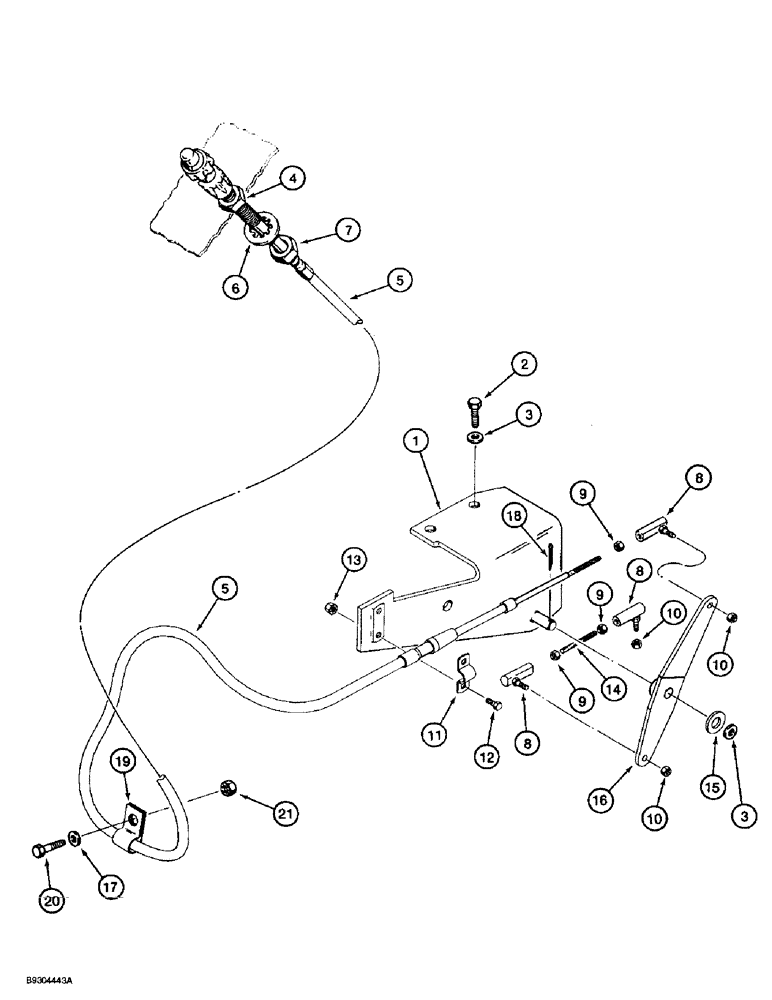

Запчасти Case 560 (3-16) - THROTTLE CONTROL (03) - FUEL SYSTEM

1

108082A1

BRACKET

- throttle cable mounting

1шт.

2

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

3

H426775

WASHER

- flat, special, hardened

3шт.

102696A1

CABLE

ASSEMBLY - throttle, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

LOCK - friction, throttle cable

1шт.

5

NSS

NOT SOLD SEPARAT

CABLE - throttle

1шт.

6

493-21078

LOCK WASHER,Int Tooth, 3/4"

WASHER - internal tooth lock, 3/4 inch

1шт.

7

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NF

2шт.

8

L12437

BALL JOINT,#10 - 32 x 7/8"

JOINT - ball, throttle cable at engine

3шт.

9

225-14210

NUT,#10-32

3шт.

10

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

3шт.

11

L12441

CLAMP

- two-piece, throttle cable

1шт.

12

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

- machine, hex head, No. 10 NC x 3/4 inch

2шт.

13

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - hex, with external tooth lock washer, No. 10 NC

2шт.

14

108081A1

ROD

- linkage

1шт.

15

H196741

WASHER

- Belleville spring

1шт.

16

108084A1

LEVER

- throttle

1шт.

17

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

18

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

19

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type 1/2", Insul, 3/8" Bolt

1шт.

20

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

21

231-5146

FLANGE NUT,3/8"-16

1шт.
