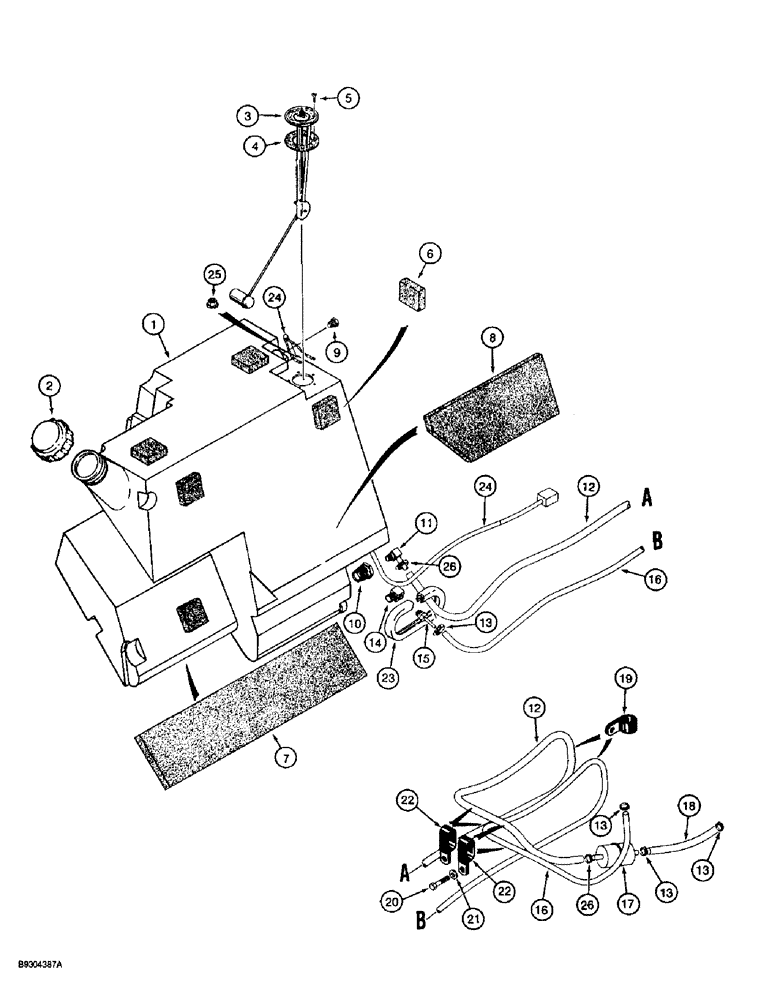

Запчасти Case 560 (3-14) - FUEL TANK AND LINES (03) - FUEL SYSTEM

1

H673986

FUEL TANK

TANK - diesel fuel, includes cap

1шт.

2

D150282

CAP

- fuel tank

1шт.

3

118484A1

SENDER UNIT

SENDER - fuel level gauge

1шт.

4

104812C3

GASKET,3.05mm Thk

- fuel level sender

1шт.

5

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips, No. 10 NC x 1/2 inch

5шт.

6

D79692

PAD

- 51 x 51 x 19 mm, tank mounting

12шт.

7

H438315

PAD

- 560 x 150 x 19 mm, tank mounting

1шт.

8

H438318

PAD

- 335 x 150 x 252 x 19 mm, tank mounting

1шт.

9

217-87

PLUG,Hex Hd, 3/8"-18 NPTF, Brass

- hex, 3/8 inch PT

1шт.

10

217-48

REDUCER,3/4" - 14 NPTF x 1/4" - 18 Fem NPTF

- 3/4 PT x 1/4 inch female PT

1шт.

11

217-293

FITTING,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

ELBOW - 90 degree, 3/8 barb end x 1/4 inch PT

1шт.

12

109674A1

FUEL HOSE,9.65 mm ID x 1900.00 mm

Fuel Tank To In-Line Fuel Filter 9.65 mm ID x 1900.00 mm

1шт.

13

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

4шт.

14

H437828

FITTING

ELBOW - 90 degree, special

1шт.

15

217-126

FITTING,3/16" Hose Barb x 1/4" Male NPTF

ADAPTER - straight, 3/16 barb x 1/4 inch PT

1шт.

16

L124347

FUEL HOSE

HOSE - 2000 mm (78-3/4 inch) long, fuel return line

1шт.

17

D139225

FILTER, FUEL

FILTER - fuel, in-line

1шт.

18

109675A1

FUEL HOSE,7.94 mm ID x 180.00 mm

From In-Line Fuel Filter To Fuel Pump 7.94 mm ID x 180.00 mm

1шт.

19

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type, Hose 1", Insul, 3/8" Bolt

1шт.

20

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

21

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

22

D88052

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

- P-type, 1 inch ID, hose

2шт.

23

H438520

ADHESIVE STRIP

TRIM - edge guard

1шт.

24

108402A1

HARNESS

- pigtail, connects to main wiring harness, see Figure 4-10

1шт.

25

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

2шт.

26

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

CLAMP, HOSE, , Adjustable #6, 0.44/0.78 Type M Worm

2шт.
