(3-12) - FUEL INJECTION PUMP, KUBOTA V2203 ENGINE, PRIOR TO P.I.N. JAF0295741

Запчасти Case 560 (3-12) - FUEL INJECTION PUMP, KUBOTA V2203 ENGINE, PRIOR TO P.I.N. JAF0295741 (03) - FUEL SYSTEM

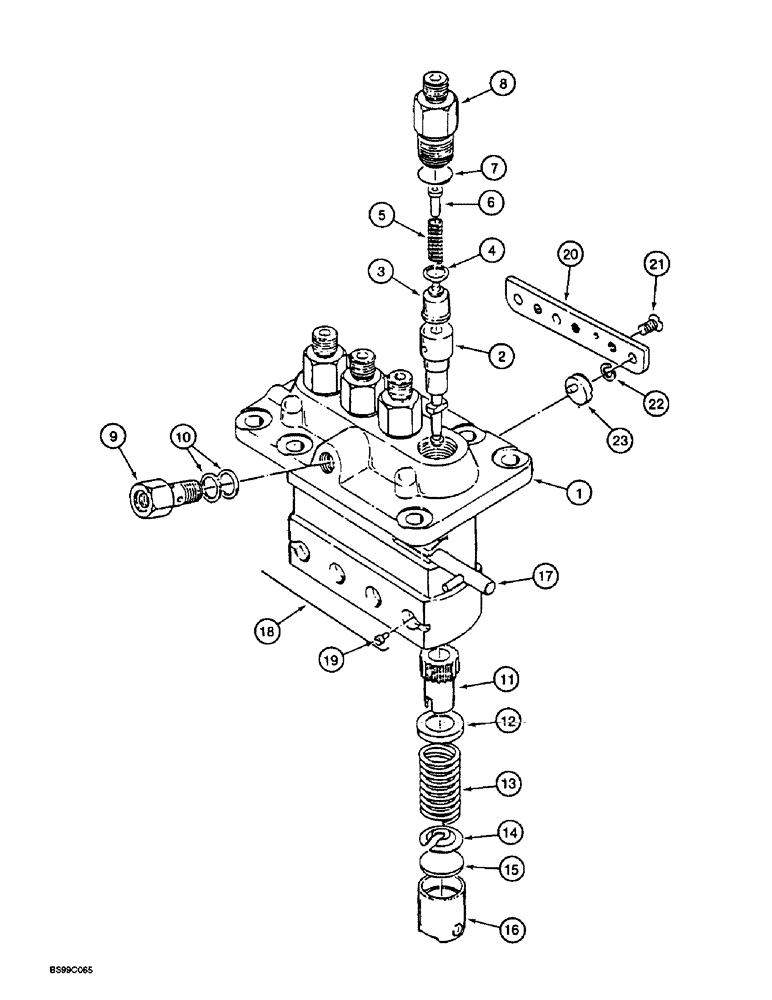

Схема запчастей Case 560 - (3-12) - FUEL INJECTION PUMP, KUBOTA V2203 ENGINE, PRIOR TO P.I.N. JAF0295741 (03) - FUEL SYSTEM
3
8
5
9
14
15
23
6
4
13
17
11
1
22
10
18
7
2
16
12
19
21
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

126964A1

PUMP

ASSEMBLY - fuel injection, Includes: Ref. 1 - 23

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - injection pump

1шт.

2

126983A1

PLUNGER

- pump

4шт.

3

126981A1

VALVE

- delivery

4шт.

4

1959532C1

GASKET

- delivery valve

4шт.

5

126976A1

SPRING

- delivery valve

4шт.

6

126978A1

SPACER

- spring

4шт.

7

1959534C1

O-RING

- delivery valve

4шт.

8

1959533C1

HOLDER

NUT - cap

4шт.

9

1959551C1

SCREW

- adjusting

1шт.

10

1959552C1

WASHER

GASKET - adjusting screw

2шт.

11

1959543C1

SLEEVE

- control

4шт.

12

1959539C1

SEAT

- spring, upper

4шт.

13

126989A1

SPRING

- plunger

4шт.

14

1959540C1

SEAT

- spring, lower

4шт.

15

1959541C1

SHIM

- tappet

4шт.

16

1959535C1

TAPPET

- pump

4шт.

17

126985A1

RACK

- control

1шт.

18

126987A1

PIN

- clamp, Includes: Ref. 19

2шт.

19

1959536C1

PIN

- tappet guide

4шт.

20

126974A1

PLATE

- adjusting

1шт.

21

1959549C1

BOLT

- adjusting plate

3шт.

22

221638A1

SPRING WASHER

- spring

3шт.

23

1959546C1

COLLAR

STOP - adjusting plate

3шт.
