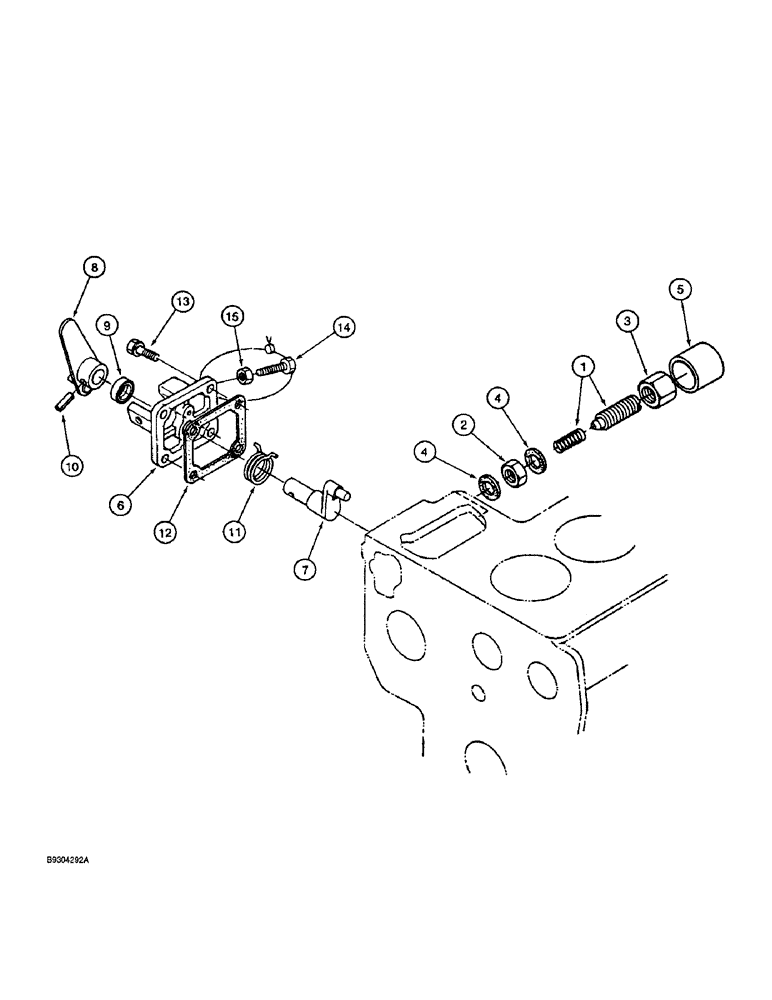

Запчасти Case 560 (3-11A) - IDLING DEVICE, KUBOTA V2203IDI ENGINE, P.I.N. JAF0295741 AND AFTER (03) - FUEL SYSTEM

202395A1

HEATED GLASS

IDLER ASSEMBLY - engine, Includes: Ref. 1 - 5

1шт.

1

202396A1

HEATED GLASS

BOLT - adjusting, two-part

1шт.

2

127094A1

NUT

- hex, special

1шт.

3

127096A1

NUT

- cap

1шт.

4

1959329C1

WASHER

GASKET - sealing

2шт.

5

127097A1

CAP

- adjusting bolt

1шт.

202401A1

HEATED GLASS

LEVER ASSEMBLY - engine stop, Includes: Ref. 6 - 11

1шт.

6

202402A1

COVER

- injection pump

1шт.

7

202403A1

SPINDLE

SHAFT - lever

1шт.

8

127101A1

LEVER

- engine stop

1шт.

9

125547A1

OIL SEAL

SEAL - oil

1шт.

10

1959337C1

PIN

- roll

1шт.

11

127102A1

SPRING

- return

1шт.

12

127103A1

GASKET

- pump cover

1шт.

13

1959155C1

BOLT

BOLT - hex, captive washer, special

4шт.

14

1959339C1

PIN

BOLT - spring return stop, M6 x 30 mm

1шт.

15

1959205C1

NUT

- hex, special

1шт.
