(3-02) - FUEL INJECTION SYSTEM, KUBOTA V2203 ENGINE, PRIOR TO P.I.N. JAF0295741

Запчасти Case 560 (3-02) - FUEL INJECTION SYSTEM, KUBOTA V2203 ENGINE, PRIOR TO P.I.N. JAF0295741 (03) - FUEL SYSTEM

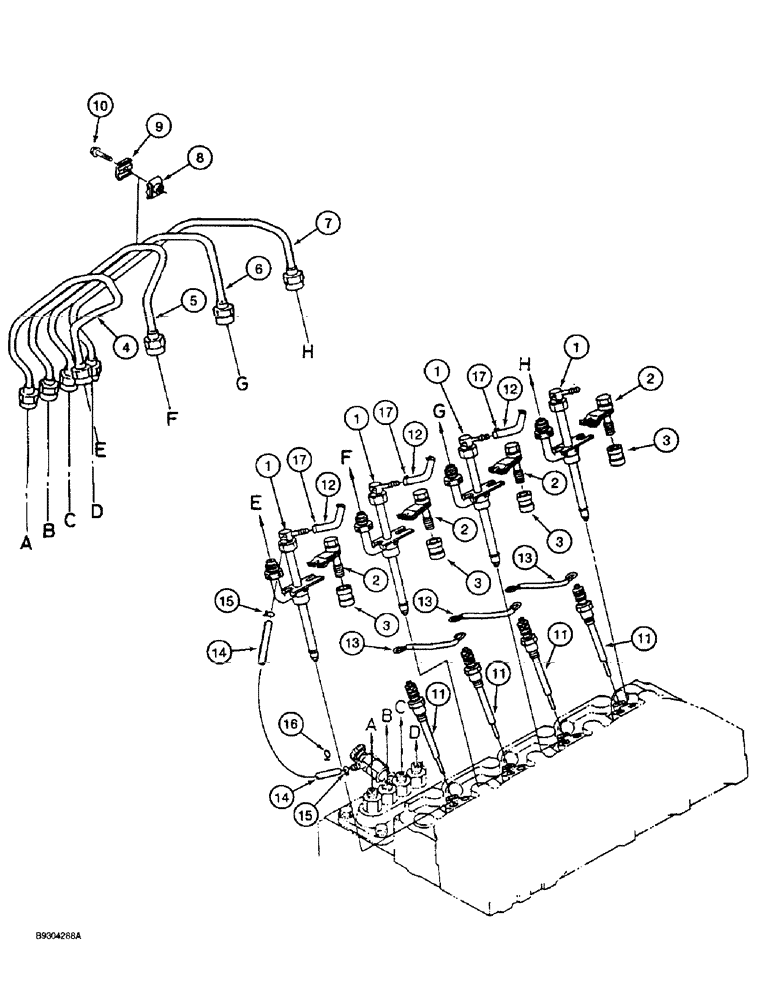

Схема запчастей Case 560 - (3-02) - FUEL INJECTION SYSTEM, KUBOTA V2203 ENGINE, PRIOR TO P.I.N. JAF0295741 (03) - FUEL SYSTEM
6
9
11
2
12
14
12
1
8
2
13
15
3
3
15
11
2
7
4
3
10
13
17
3
11
1
11
1
17
5
2
1
13
14
12
16
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

126937A1

NOZZLE INJECTION

NOZZLE ASSEMBLY - fuel injection, component parts not serviced separately

4шт.

2

126940A1

NOZZLE INJECTION

CLAMP - injector nozzle

4шт.

3

126941A1

SPACER

- injector nozzle

4шт.

4

126944A1

PIPE

TUBE - fuel injector, No. 1 cylinder

1шт.

5

126947A1

PIPE

TUBE - fuel injector, No. 2 cylinder

1шт.

6

126949A1

PIPE

TUBE - fuel injector, No. 3 cylinder

1шт.

7

126951A1

PIPE

TUBE - fuel injector, No. 4 cylinder

1шт.

8

1959393C1

HOSE CLIP

CLAMP - fuel tube

3шт.

9

1959394C1

HOSE CLIP

CLAMP - fuel tube

3шт.

10

1959395C1

SCREW

BOLT - hex, captive washer, special

3шт.

11

126953A1

GLOW PLUG

PLUG - glow

4шт.

12

126957A1

PIPE

TUBE - fuel overflow

3шт.

13

126955A1

ELECTRICAL WIRE

WIRE - glow plug

3шт.

14

126959A1

PIPE ASSY.

TUBE - start, Includes: Ref. 15

1шт.

15

1959490C1

CLAMP

- tube

2шт.

16

126961A1

CLAMP

- tube

1шт.

17

1959490C1

CLAMP

- tube

6шт.
