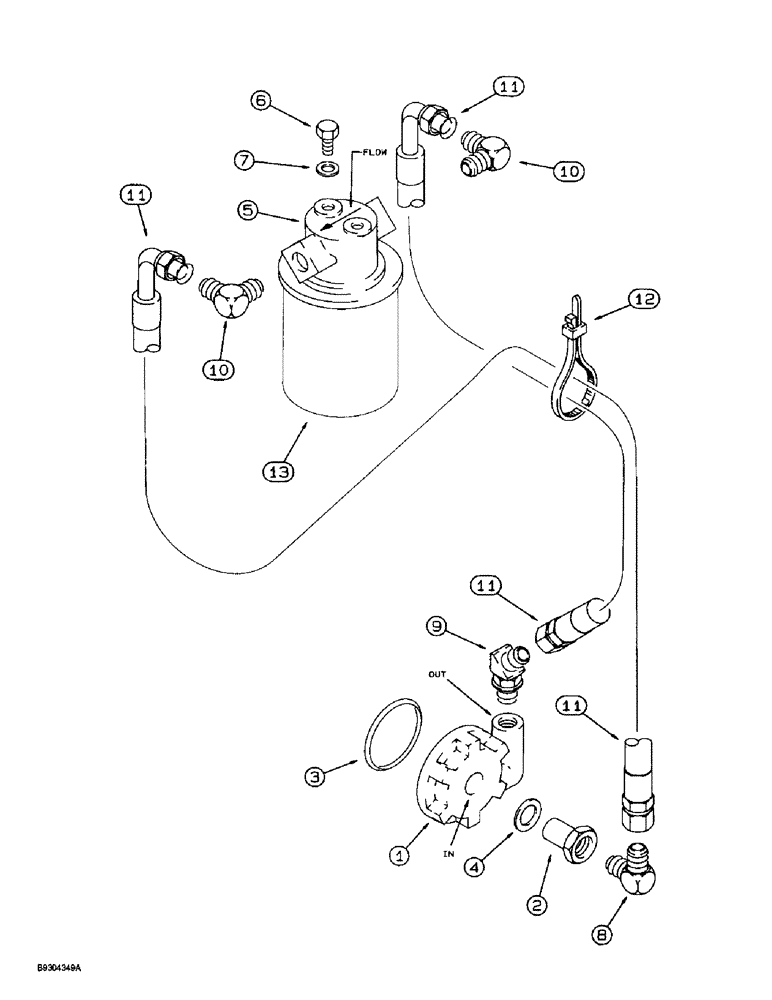

Запчасти Case 560 (2-40) - REMOTE OIL FILTER (02) - ENGINE

129811A1

FILTER

ADAPTER ASSEMBLY - remote oil filter, Includes: Ref. 1 - 5

1шт.

1

129812A1

ADAPTER

- oil filter

1шт.

2

129813A1

PLUG

- oil filter

1шт.

3

129814A1

O-RING

- filter adapter

1шт.

4

129815A1

GASKET

SEAL - plug

1шт.

5

129816A1

HEAD

- oil filter

1шт.

6

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

7

H426775

WASHER

- flat, special, hardened

2шт.

8

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- 90 degree, 3/4-16 flare x 3/8 inch PT

1шт.

9

218-534

ELBOW,45 Degree, 3/4"-14, 37 Degree x 3/8"-18, NPTF

- 45 degree, 3/4-16 flare x 3/8 inch PT

1шт.

10

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 3/4-16 flare x 1/2 inch PT

2шт.

11

109400A1

HOSE

- 610 mm (24 inch) long, remote oil, Serial Range: filter-engine

2шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

13

126385A1

FILTER, ELEMENT

FILTER - oil, cartridge

1шт.
