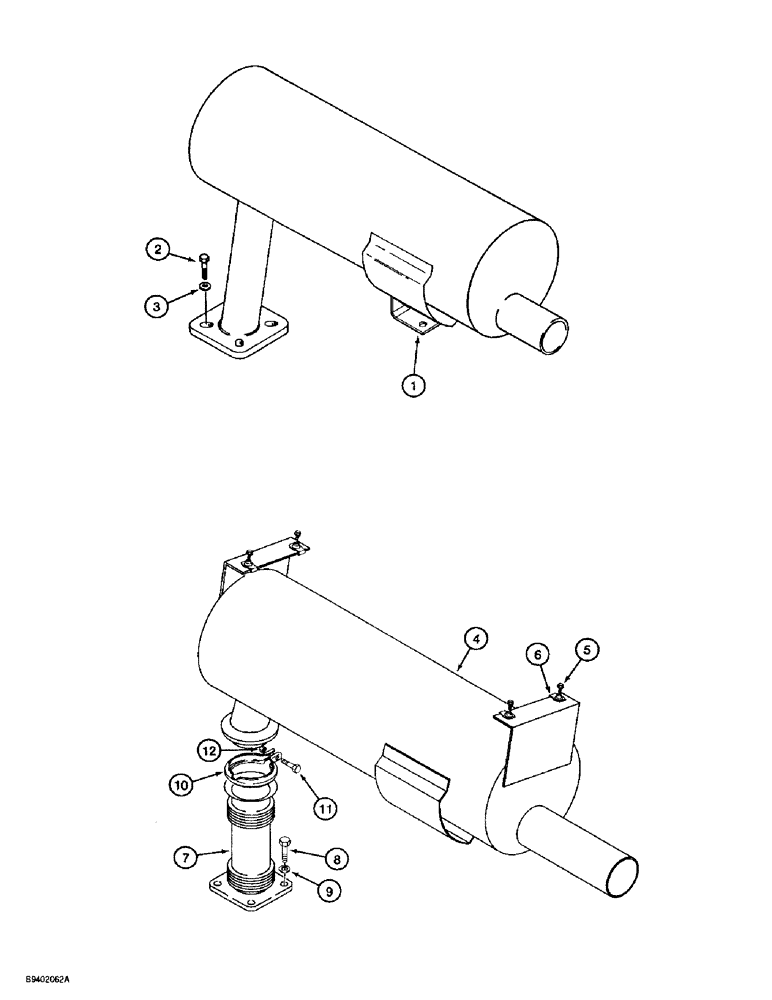

Запчасти Case 560 (2-38) - MUFFLER AND EXHAUST SYSTEM, RIGID MOUNTED MUFFLER (02) - ENGINE

1

111134A2

MUFFLER

- engine exhaust, no longer available, order 138663A1 Kit which Includes: Ref. 4, 5, 6, 7, 10, 11, 12 and 7-48080 instruction sheet, see Flexible Mounted Muffler parts below

1шт.

2

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

4шт.

3

H426775

WASHER

- flat, special, hardened

4шт.

FLEXIBLE MOUNTED MUFFLER

1шт.

4

135532A1

MUFFLER

- engine exhaust, flexible mounted

1шт.

5

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

6

H346650

NUT

- U-type, 5/16 inch NC

4шт.

7

135356A1

EXHAUST SYSTEM PIPE

CONNECTOR - flex

1шт.

8

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

4шт.

9

H426775

WASHER

- flat, special, hardened

4шт.

10

135543A1

CLAMP,71.12mm - 71.63mm

- muffler

1шт.

11

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

1шт.

12

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.
