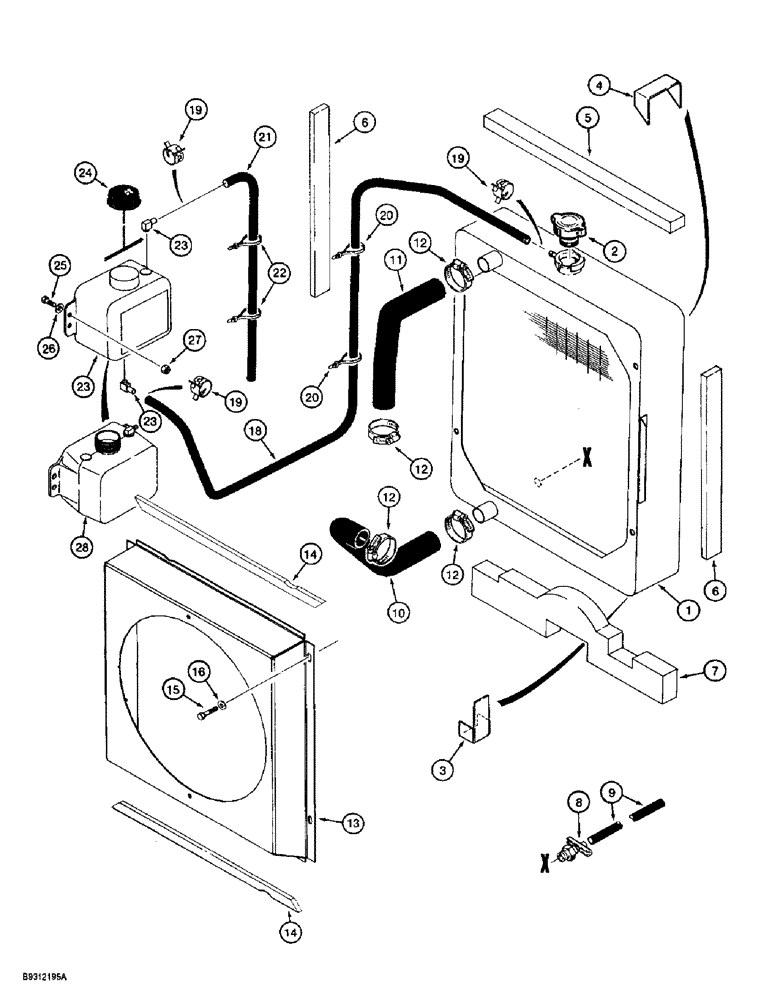

Запчасти Case 560 (2-32) - RADIATOR MOUNTING AND COOLANT RECOVERY SYSTEM (02) - ENGINE

1

111474A2

RADIATOR

- engine coolant, prior to P.I.N. JAF0295741

1шт.

1

332797A1

RADIATOR

- engine coolant, P.I.N. JAF0295741 and after

1шт.

2

D61885

CAP

- radiator, 7 PSI

1шт.

3

108454A1

PAD

- mounting, lower radiator

2шт.

4

108455A1

PAD

- mounting, upper radiator

2шт.

5

107167A1

BAFFLE

- radiator, upper

1шт.

6

107166A1

BAFFLE

- radiator, sides

2шт.

7

107165A1

BAFFLE

- radiator, lower

1шт.

8

H434809

COCK, DRAIN

VALVE - drain, radiator drain

1шт.

9

114514A1

HOSE,9.65 mm ID x 600.00 mm

RADIATOR HOSE, , Drain 9.65 mm ID x 600.00 mm

1шт.

10

106778A1

RADIATOR HOSE,32.00 mm ID x 245.00 mm

Lower 32.00 mm ID x 245.00 mm

1шт.

11

106777A1

RADIATOR HOSE,32.00 mm ID x 226.00 mm

Upper 32.00 mm ID x 226.00 mm

1шт.

12

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, #24, 1.06/2.00 Type F Worm

4шт.

13

106780A2

SHROUD

- fan, used with 15 inch fan, Prior to P.I.N. JAF0295741

1шт.

13

356339A1

SHROUD

- fan, used with 16 inch fan, P.I.N. JAF0295741 and after

1шт.

14

A173165

SEALING STRIP

- adhesive-backed, 485 mm (19 inch) long

2шт.

15

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

16

H426775

WASHER

- flat, special, hardened

4шт.

18

H433707

HOSE

- 1575 mm (62 inch) long, cut from S120317X bulk hose, see below, radiator to coolant recovery bottle

1шт.

19

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP - spring-type, retaining

2шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch

2шт.

21

109397A1

HOSE

- 610 mm (24 inch) long, overflow

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, use to tie hoses from coolant recovery bottle to fuel and steering hoses

2шт.

23

A184372

RESERVOIR

BOTTLE - coolant recover, lower elbow is at 90 degree angle to upper elbow, if used

1шт.

24

A184079

CAP

- coolant recovery reservoir

1шт.

25

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

26

H426775

WASHER

- flat, special, hardened

4шт.

27

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

28

130377A1

CONTAINER

BOTTLE - coolant recovery, lower elbow is parallel to upper elbow, if used

1шт.

S120317X

HOSE

- bulk, 8 (5/16) ID x 7620 mm (300 inch) long

1шт.
